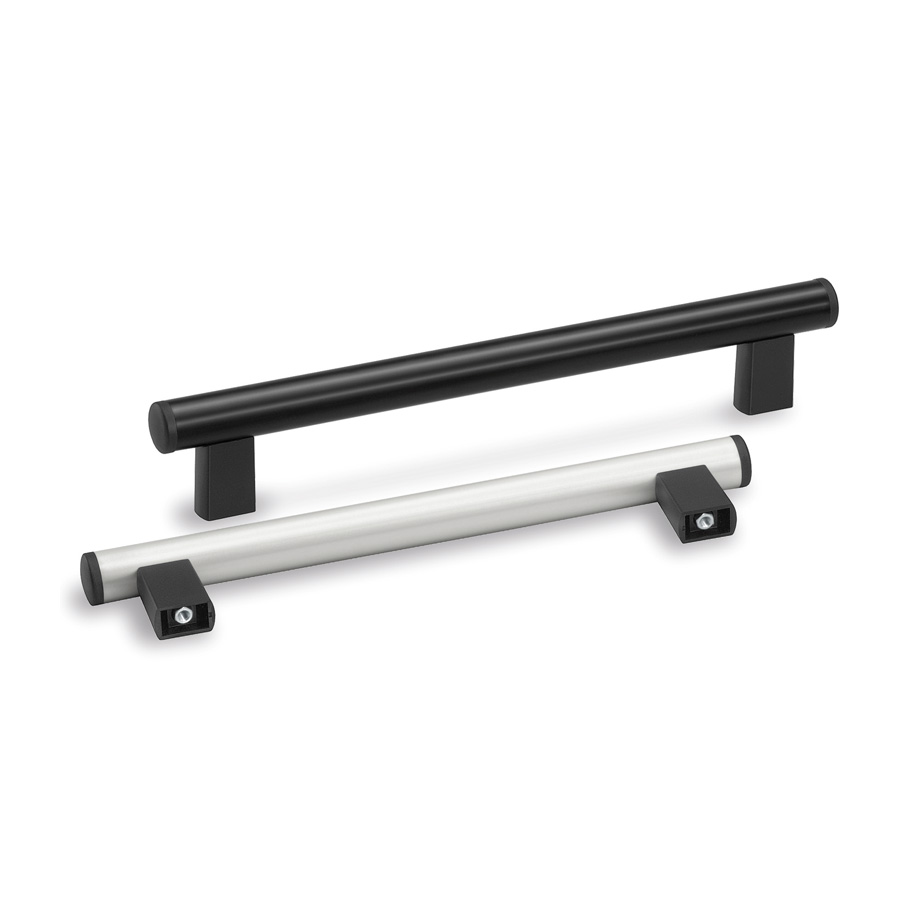

Tubular pull handles : Handle  AX
in aluminium
  • Reach
  • Rohs
Tube made of aluminium Al Mg Si 0.5, fine ground, anodized. Tube holders and caps made of polyamide PA 6, glass beads reinforced, black matt. Screwed connection between tube and holders consists in nondetachable blind rivet nuts to prevent it being pulled off. Stress resistance minimum 800 N.

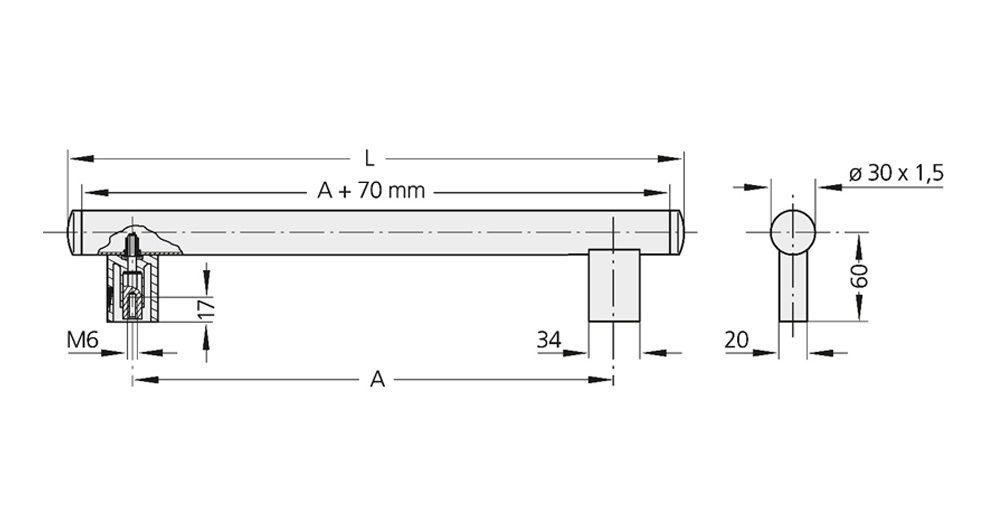

Schéma 1 + Handle  AX
in aluminium

REF DESIGNATION A L Wight (g) 3D Quote
10760 HANDLE AX ALU 200MM D.30 M6 200 288 211
10761 HANDLE AX ALU 250MM D.30 M6 250 338 228
10762 HANDLE AX ALU 300MM D.30 M6 300 388 245
10763 HANDLE AX ALU 350MM D.30 M6 350 438 263
10764 HANDLE AX ALU 400MM D.30 M6 400 488 280
10765 HANDLE AX ALU 500MM D.30 M6 500 588 315
10766 HANDLE AX ALU 600MM D.30 M6 HC 600 688 350
10760N HANDLE AX ALU 200MM D.30 M6 BLACK 200 288 211
10761N HANDLE AX ALU 250MM D.30 M6 BLACK 250 338 228
10762N HANDLE AX ALU 300MM D.30 M6 BLACK 300 388 245
10763N HANDLE AX ALU 350MM D.30 M6 BLACK 350 438 263
10764N HANDLE AX ALU 400MM D.30 M6 BLACK 400 488 280
10765N HANDLE AX ALU 500MM D.30 M6 BLACK 500 588 315
10766N 600 688 350
