Handle FA

in composite plastic

 Plastic pull handles : Handle FA
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

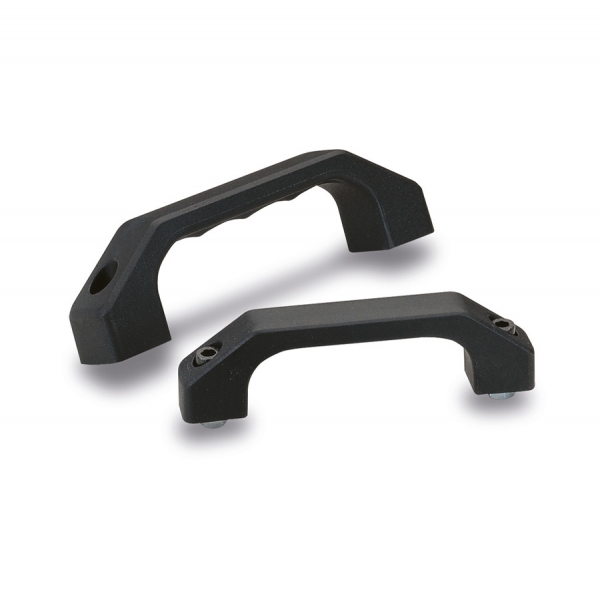

Handle made of glass fibre reinforced polyamide, color black matt, supplied with or without fastening material (galvanized head screws, nuts and washers).

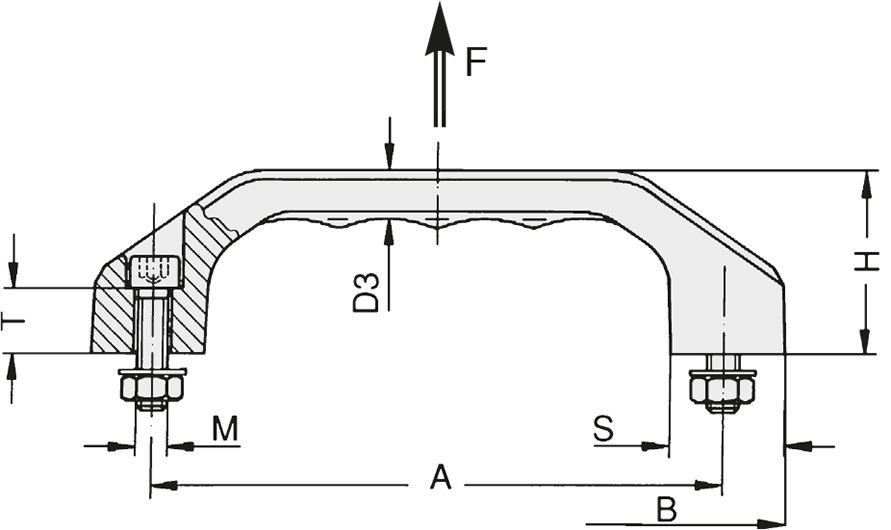

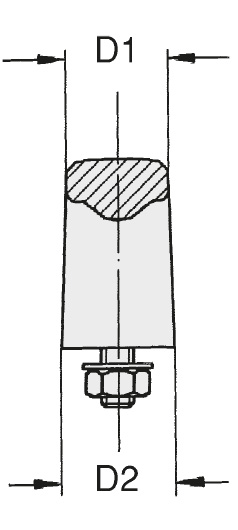

REF DESIGNATION A M M fixe B D1 D2 D3 H S S3 T Wgt. (g) 3D Quote
10945 HANDLE FA POLYA. 100MM FOR SCREW M5 100 5 M5x22 122 17 19 8,5 33 20 1 13 49
10946 HANDLE FA POLYA. 120MM FOR SCREW M6 120 6 M6x25 146 20,5 23 10,5 39 24 1,2 15 88
10947 HANDLE FA POLYA. 140MM FOR SCREW M8 140 8 M8x30 170 24 27 12 45 28 1,5 16 158
10948 HANDLE FA POLYA. 160MM FOR SCREW M8 160 8 M8x35 194 27,5 31 13,5 52 32 1,5 20 212
10949 HANDLE FA POLYA. 180MM FOR SCREW M10 180 10 M10x40 218 31 35 15,5 58 36 2 20 350
10435 HANDLE FA POLYA. 100MM FITTING M5 100 5 M5x22 122 17 19 8,5 33 20 1 13 49
10436 HANDLE FA POLYA. 120MM FITTING M6 120 6 M6x25 146 20,5 23 10,5 39 24 1,2 15 88
10400 HANDLE FA POLYA. 140MM FITTING M8 140 8 M8x30 170 24 27 12 45 28 1,5 16 158
10437 HANDLE FA POLYA. 160MM FITTING M8 160 8 M8x35 194 27,5 31 13,5 52 32 1,5 20 212
10438 HANDLE FA POLYA. 180MM FITTING M10 180 10 M10x40 218 31 35 15,5 58 36 2 20 350
