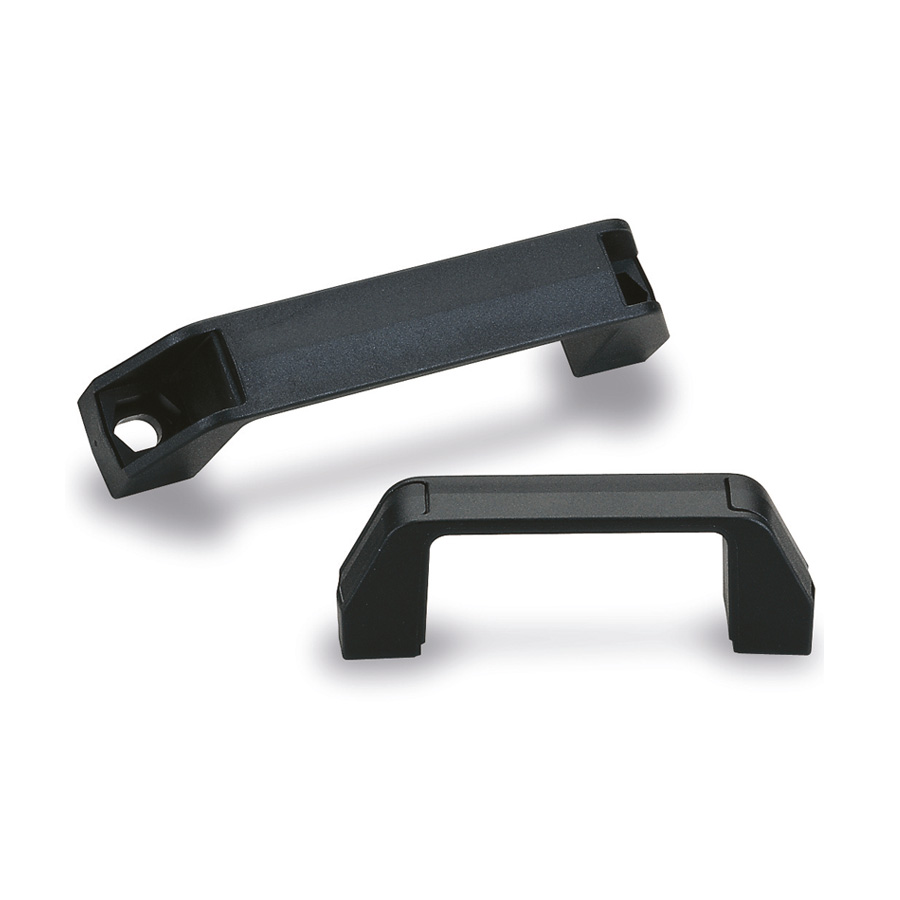

Handle NR

in composite plastic

 Plastic pull handles : Handle NR
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
Handle made of glass fibre reinforced polyamide, color black matt, supplied with or without caps.


01 / Handle without cap

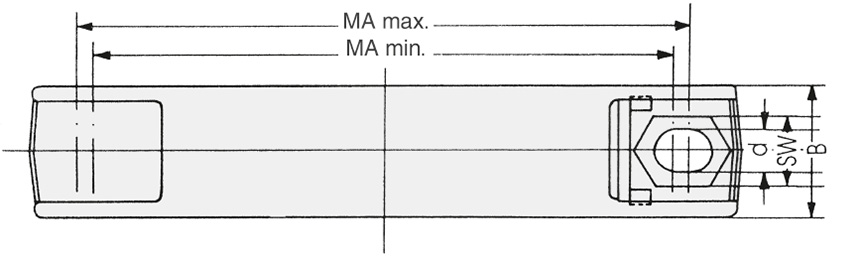

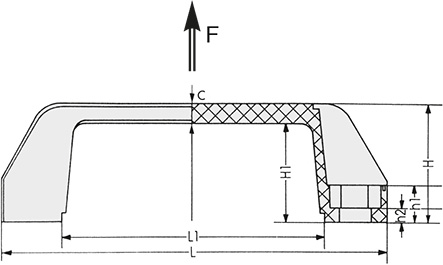

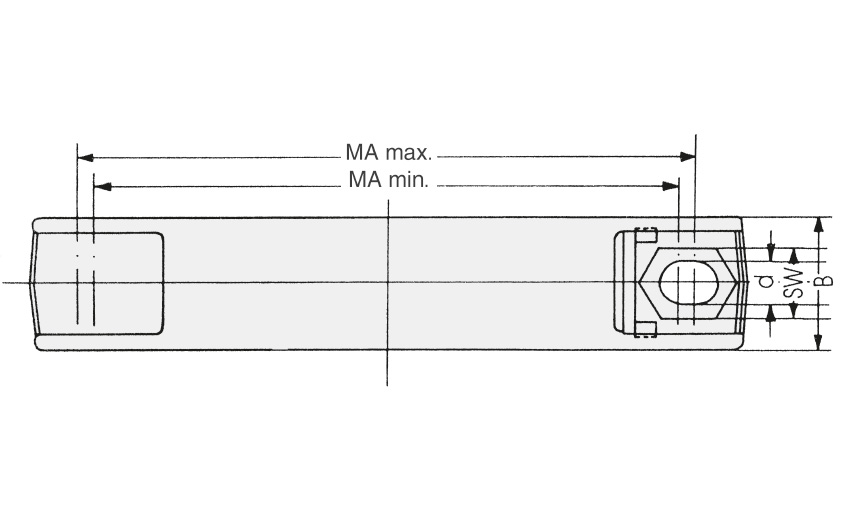

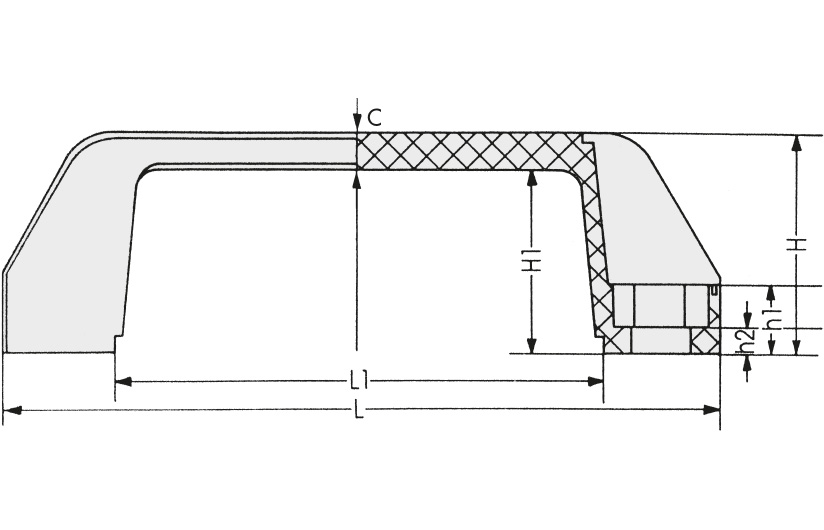

REF DESIGNATION MA max MA min M fixe B C d FMAX H h1 h2 L L1 SW Wgt. (g) 3D Quote
6900 HANDLE NR POLYA. 90-94MM FITTING M6 94 90 M6 21 6 6,5 900 36 12 5 110 72,5 10-oct 28
6901 HANDLE NR POLYA. 112-118MM FITTING M8 118 112 M8 26 7 8,5 900 42 13,5 5 137 92,5 13/13 37
6902 HANDLE NR POLYA. 126-132MM FITTING M8 132 126 M8 26 7 8,5 900 42 13,5 5 151 106,5 13/13 45
6903 HANDLE NR POLYA. 146-152MM FITTING M8 152 146 M8 26 7 8,5 900 42 13,5 5 171 126,5 13/13 45
6904 HANDLE NR POLYA. 176-182MM FITTING M8 182 176 M8 28 9 8,5 900 42 13,5 5 201 156,5 13/13 45

02 / 2 caps for handle

REF DESIGNATION MA max MA min M fixe B C d FMAX H h1 h2 L L1 SW Wgt. (g) Quote
6920 CAP FOR HANDLE NR (FOR REF.6900) 94 90 M6 21 6 6,5 900 36 12 5 110 72,5 10-oct 28
6921 CAP FOR HANDLE NR (FOR REF.6901-6902) 118 112 M8 26 7 8,5 900 42 13,5 5 137 92,5 13/13 37
