Knob BB

in composite plastic

Knurled  knobs and handles : Knob BB
in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius

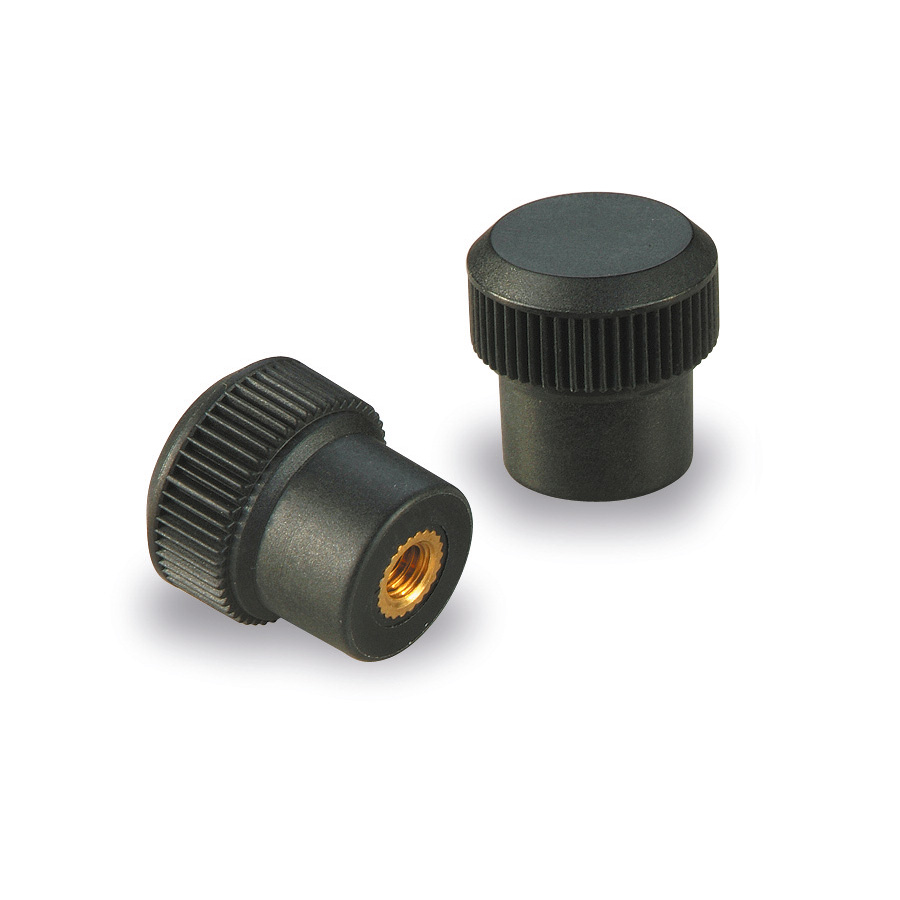

Knob made of high-duty, heat resistant duroplast, black matt. Insert in brass.

AVAILABLE VERSIONS


01 / D = 12, D = 15

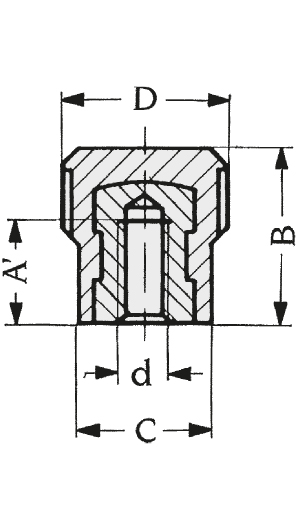

Schéma 1 + Knob BB
in composite plastic
REF DESIGNATION D d A B C Wgt. (g) 3D Quote
12206 KNOB BB BAK. D.12 BRASS INS M3 12 M3 6,5 13,5 10 5
12207 KNOB BB BAK. D.12 BRASS INS M4 12 M4 10 13,5 10 5
12225 KNOB BB BAK. D.15 BRASS INS M4 15 M4 10 15,5 12 6
12208 KNOB BB BAK. D.15 BRASS INS M5 15 M5 10 15,5 12 6
11340 KNOB BB BAK. D.15 BRASS INS M6 15 M6 9 15,5 12 6

02 / D = 17

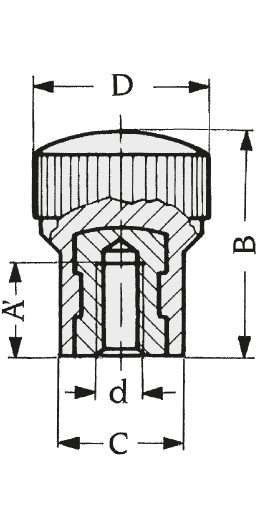

Schéma 2 + Knob BB
in composite plastic
REF DESIGNATION D d A' B C 3D Quote
12449 HC THUMB NUT BAK. D.17 BRASS INS M5 17 M5 10 22 12
