Knob with adjustable

maximum torquein composite plastic

Knurled  knobs and handles : Knob with adjustable
maximum torquein composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

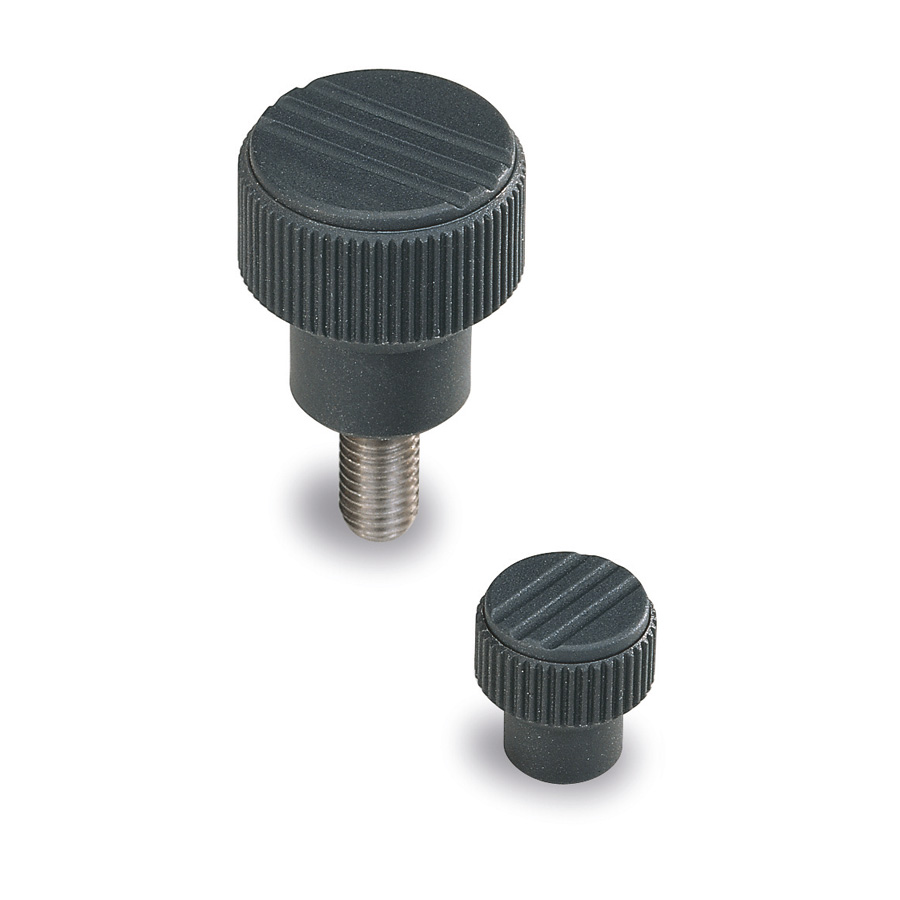

Knob in high resistance polyamide reinforced with glass fibres, anthracite grey. Female insert in steel 5.8 with black oxide finish and stud in zinc plated steel. The adjusting screw sets the required torque. When the set torque is reached, the knurled knob spins freely.

AVAILABLE VERSIONS



01 / Female insert

REF DESIGNATION D C_MAX C_MIN D1 D2 D3 D4 H H1 T Wight (g) 3D Quote
15340 KNOB MAX. TORQUE POLYA. D.26 M5 M5 0,3 0,1 26 18 23 16 27 10,5 5 47
15350 KNOB MAX. TORQUE POLYA. D.26 M6 M6 0,3 0,1 26 18 23 16 27 10,5 6 42
15370 KNOB MAX. TORQUE POLYA. D.34 M8 M8 0,3 0,1 34 22 31 20 37,5 14,5 14 77
15360 KNOB MAX. TORQUE POLYA. D.34 M6 M6 0,3 0,1 34 22 31 20 37,5 14,5 10 82

02 / With stud

REF DESIGNATION D C_MAX C_MIN D1 D2 D3 D4 H H1 L 3D Quote
1538030 KNOB MAX. TORQUE POLYA. D.26 M5*30 HC M5 0,3 0,1 26 18 23 16 27 10,5 30
1538050 KNOB MAX. TORQUE POLYA. D.26 M5*50 HC M5 0,3 0,1 26 18 23 16 27 10,5 50
1539030 KNOB MAX. TORQUE POLYA. D.26 M6*30 HC M6 0,3 0,1 26 18 23 16 27 10,5 30
1539050 KNOB MAX. TORQUE POLYA. D.26 M6*50 HC M6 0,3 0,1 26 18 23 16 27 10,5 50
1541040 KNOB MAX. TORQUE POLYA. D.34 M8*40 HC M8 0,3 0,1 34 22 31 20 37,5 14,5 40
1541060 KNOB MAX. TORQUE POLYA. D.34 M8*60 HC M8 0,3 0,1 34 22 31 20 37,5 14,5 60
1540040 KNOB MAX. TORQUE POLYA. D.34 M6*40 HC M6 0,3 0,1 34 22 31 20 37,5 14,5 40
1540060 KNOB MAX. TORQUE POLYA. D.34 M6*60 HC M6 0,3 0,1 34 22 31 20 37,5 14,5 60
