Knurled knobs and handles : Bouton RV en plastique composite
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

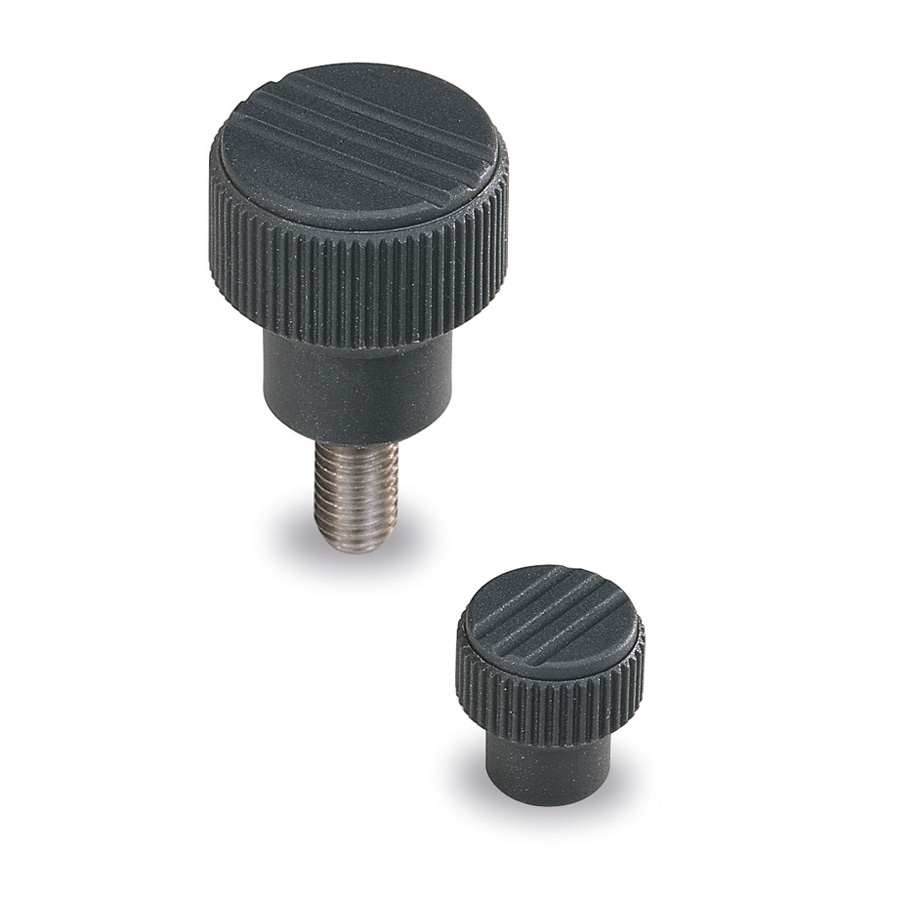

Knob made of glass fibre reinforced polyamide, anthracite grey, with insert either in zinc plated steel or stainless steel 1.4305 AISI 303. Caps available in light grey RAL 7035, yellow RAL 1021 and red RAL 3020.

AVAILABLE VERSIONS

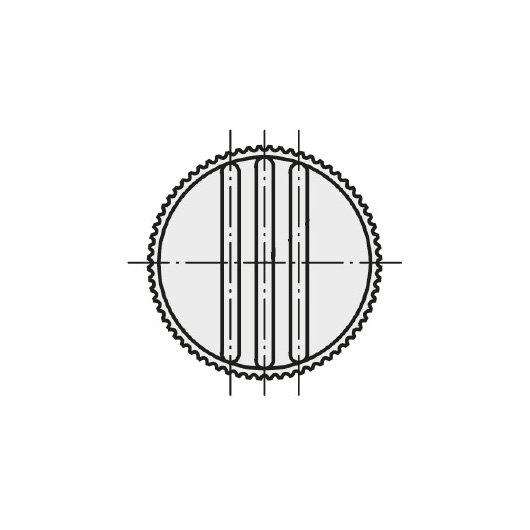

Schéma 1 + Bouton RV en plastique composite

01 / Female insert

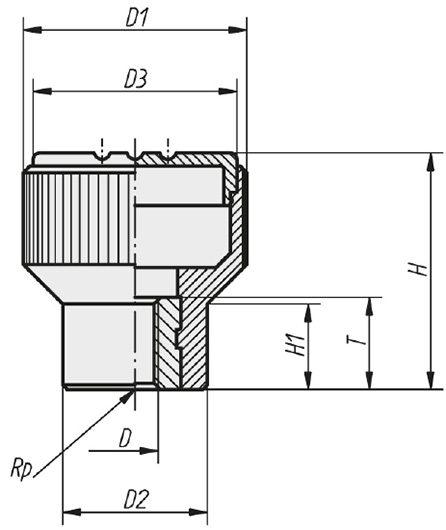

Schéma 2 + Bouton RV en plastique composite
REF DESIGNATION D1 D D2 D3 H H1 T Wgt. (g) 3D Quote
8160 KNOB RV POLYA. D.21 STEEL INS M4 21 M4 14 19 22 8 10 9
8161 KNOB RV POLYA. D.21 STEEL INS M5 21 M5 14 19 22 8 10 9
8162 KNOB RV POLYA. D.21 STEEL INS M6 21 M6 14 19 22 8 10 10
8163 KNOB RV POLYA. D.26 STEEL INS M8 26 M8 18 23 26 9,5 14 12
8164 KNOB RV POLYA. D.34 STEEL INS M8 34 M8 22 31 36 13 14 22
8165 KNOB RV POLYA. D.34 STEEL INS M10 34 M10 22 31 36 13 14 22
8160i KNOB RV POLYA. D.21 STAINL. INS M4 21 M4 14 19 22 8 10 11
8161i KNOB RV POLYA. D.21 STAINL. INS M5 21 M5 14 19 22 8 10 12
8162i KNOB RV POLYA. D.21 STAINL. INS M6 21 M6 14 19 22 8 10 12
8163i KNOB RV POLYA. D.26 STAINL. INS M8 26 M8 18 23 26 9,5 14 15
8164i KNOB RV POLYA. D.34 STAINL. INS M8 34 M8 22 31 36 13 14 24
8165i KNOB RV POLYA. D.34 STAINL. INS M10 34 M10 22 31 36 13 14 25

02 / With stud

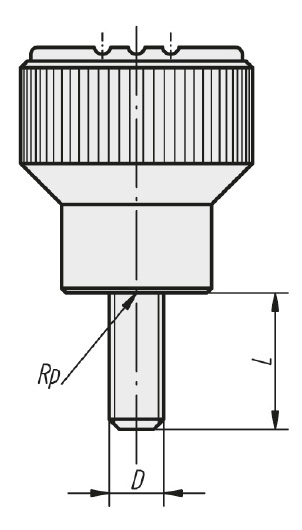

Schéma 3 + Bouton RV en plastique composite
REF DESIGNATION D1 D D2 D3 H H1 L 3D Quote
817110 KNOB RV POLYA. D.21 STEEL STUD M5*10 21 M5 14 19 22 8 10
817115 KNOB RV POLYA. D.21 STEEL STUD M5*15 21 M5 14 19 22 8 15
817120 KNOB RV POLYA. D.21 STEEL STUD M5*20 21 M5 14 19 22 8 20
817125 KNOB RV POLYA. D.21 STEEL STUD M5*25 21 M5 14 19 22 8 25
817215 KNOB RV POLYA. D.21 STEEL STUD M6*15 21 M6 14 19 22 8 15
817220 KNOB RV POLYA. D.21 STEEL STUD M6*20 21 M6 14 19 22 8 20
817225 KNOB RV POLYA. D.21 STEEL STUD M6*25 21 M6 14 19 22 8 25
817230 KNOB RV POLYA. D.21 STEEL STUD M6*30 21 M6 14 19 22 8 30
817320 KNOB RV POLYA. D.26 STEEL STUD M8*20 26 M8 18 23 26 9,5 20
817325 KNOB RV POLYA. D.26 STEEL STUD M8*25 26 M8 18 23 26 9,5 25
817330 KNOB RV POLYA. D.26 STEEL STUD M8*30 26 M8 18 23 26 9,5 30
817340 KNOB RV POLYA. D.26 STEEL STUD M8*40 26 M8 18 23 26 9,5 40
817420 KNOB RV POLYA. D.34 STEEL STUD M10*20 34 M10 22 31 36 13 20
817430 KNOB RV POLYA. D.34 STEEL STUD M10*30 34 M10 22 31 36 13 30
817440 KNOB RV POLYA. D.34 STEEL STUD M10*40 34 M10 22 31 36 13 40
817110i KNOB RV POLYA. D21 STAINL. STUD M5*10 21 M5 14 19 22 8 10
817115i KNOB RV POLYA. D21 STAINL. STUD M5*15 21 M5 14 19 22 8 15
817120i KNOB RV POLYA. D21 STAINL. STUD M5*20 21 M5 14 19 22 8 20
817125i KNOB RV POLYA. D21 STAINL. STUD M5*25 21 M5 14 19 22 8 25
817215i KNOB RV POLYA. D21 STAINL. STUD M6*15 21 M6 14 19 22 8 15
817220i KNOB RV POLYA. D21 STAINL. STUD M6*20 21 M6 14 19 22 8 20
817225i KNOB RV POLYA. D21 STAINL. STUD M6*25 21 M6 14 19 22 8 25
817230i KNOB RV POLYA. D21 STAINL. STUD M6*30 21 M6 14 19 22 8 30
817320i KNOB RV POLYA. D26 STAINL. STUD M8*20 26 M8 18 23 26 9,5 20
817325i KNOB RV POLYA. D26 STAINL. STUD M8*25 26 M8 18 23 26 9,5 25
817330i KNOB RV POLYA. D26 STAINL. STUD M8*30 26 M8 18 23 26 9,5 30
817340i KNOB RV POLYA. D26 STAINL. STUD M8*40 26 M8 18 23 26 9,5 40
817420i KNOB RV POLYA D34 STAINL. STUD M10*20 34 M10 22 31 36 13 20
817430i KNOB RV POLYA D34 STAINL. STUD M10*30 34 M10 22 31 36 13 30
817440i KNOB RV POLYA D34 STAINL. STUD M10*40 34 M10 22 31 36 13 40
