Handle AR

in steel

 Steel pull handles : Handle AR
in steel
  • Reach
  • Rohs

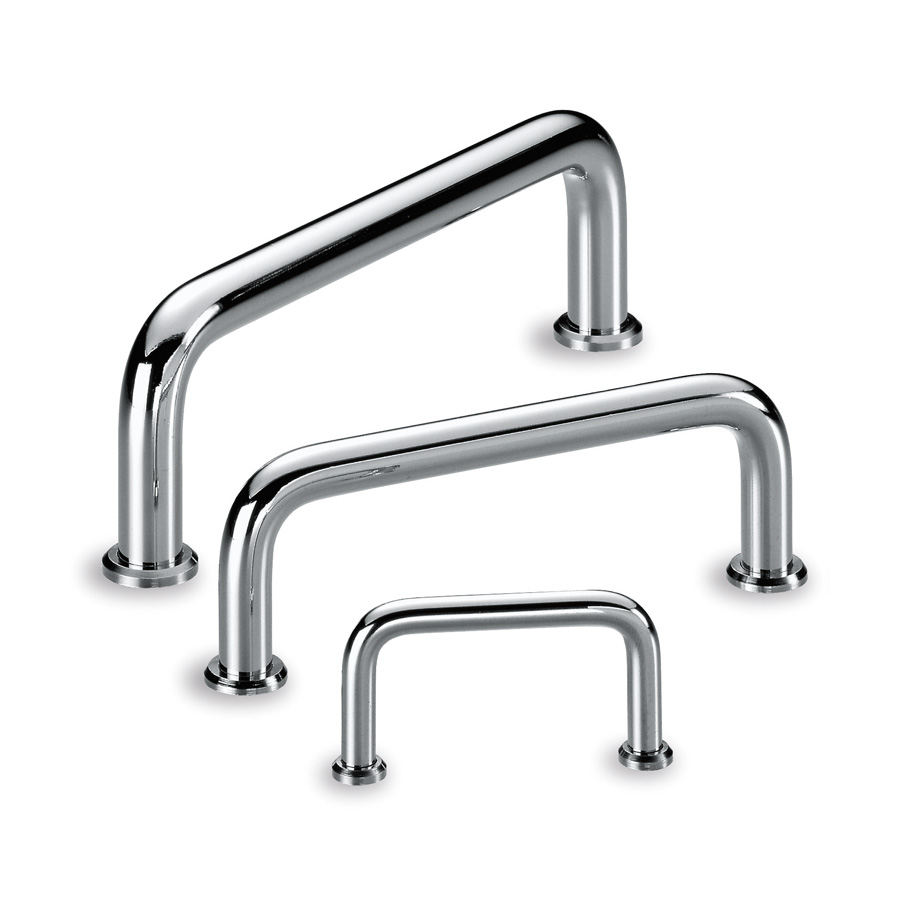

Handle in round steel bar, precision ground and high gloss chromium plated surface, supplied with cover plates.

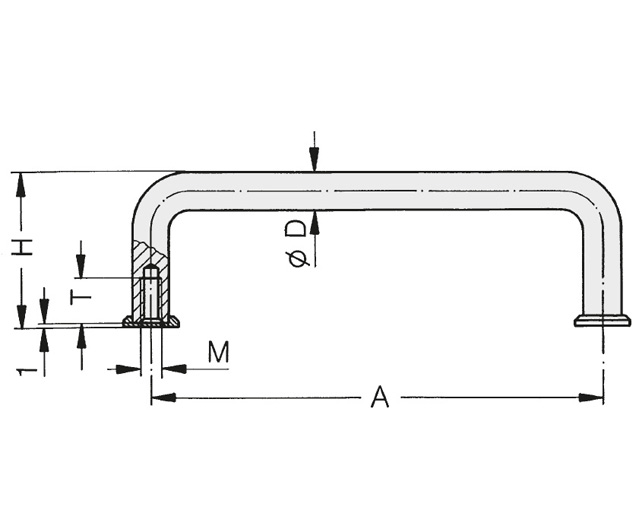

Schéma 1 + Handle AR
in steel

REF DESIGNATION D A M H T Wgt. (g) 3D Quote
10053 HANDLE AR STEEL 32MM FITTING M3 5 32 M3 21 6 8
10054 HANDLE AR STEEL 55MM FITTING M3 5 55 M3 25 6 13
10055 HANDLE AR STEEL 88MM FITTING M3 5 88 M3 25 6 18
10056 HANDLE AR STEEL 32MM FITTING M4 8 32 M4 33 8 28
10057 HANDLE AR STEEL 55MM FITTING M4 8 55 M4 33 8 38
10058 HANDLE AR STEEL 64MM FITTING M4 8 64 M4 33 8 41
10059 HANDLE AR STEEL 88MM FITTING M4 8 88 M4 33 8 50
10060 HANDLE AR STEEL 96MM FITTING M4 8 96 M4 33 8 56
10061 HANDLE AR STEEL 98MM FITTING M4 8 98 M4 33 8 57
10062 HANDLE AR STEEL 102MM FITTING M4 8 102 M4 33 8 58
10063 HANDLE AR 120MM FITTING M4 8 120 M4 33 8 65
10064 HANDLE AR STEEL 128MM FITTING M4 8 128 M4 33 8 68
10065 HANDLE AR STEEL 136MM FITTING M4 8 136 M4 33 8 71
10066 HANDLE AR STEEL 55MM FITTING M5 10 55 M5 41 10 67
10067 HANDLE AR STEEL 88MM FITTING M5 10 88 M5 41 10 87
10068 HANDLE AR STEEL 100MM FITTING M5 10 100 M5 41 10 94
10069 HANDLE AR STEEL 102MM FITTING M5 10 102 M5 41 10 95
10070 HANDLE AR STEEL 115MM FITTING M5 10 115 M5 41 10 103
10071 HANDLE AR STEEL 120MM FITTING M5 10 120 M5 41 10 105
10072 HANDLE AR STEEL 136MM FITTING M5 10 136 M5 41 10 112
10075 HANDLE AR STEEL 180MM FITTING M5 10 180 M5 41 10 142
10076 HANDLE AR STEEL 200MM FITTING M5 10 200 M5 41 10 154
10077 HANDLE AR STEEL 235MM FITTING M5 10 235 M5 41 10 175
10078 HANDLE AR STEEL 250MM FITTING M5 10 250 M5 41 10 184
