Heavy duty handle QC

in aluminium

Aluminium pull handles : Heavy duty handle QC
in aluminium
  • Reach
  • Rohs

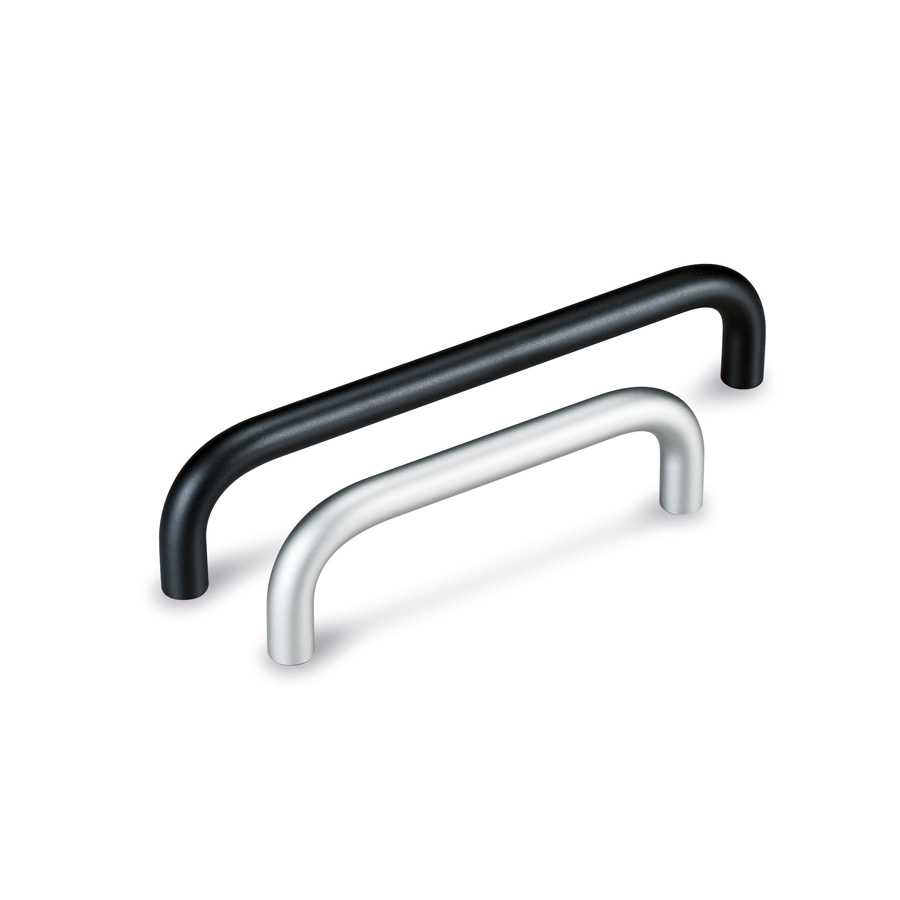

Heavy duty handle , round bar aluminium Al Mg Si 0.5, ground, glass ball blasted and anodized with satin finish. Stress resistance minimum 1000 N.

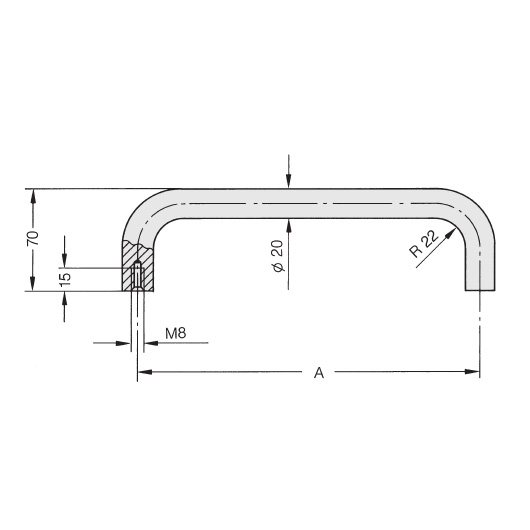

Schéma 1 + Heavy duty handle QC
in aluminium

REF DESIGNATION A FIXATION Wight (g) 3D Quote
10922 HANDLE QC ALU 200MM M8 200 M8 235
10923 HANDLE QC ALU 250MM M8 250 M8 275
10924 HANDLE QC ALU 300MM M8 300 M8 320
10925 HANDLE QC ALU 350MM M8 350 M8 360
10926 HANDLE QC ALU 400MM M8 400 M8 405
10927 HANDLE QC ALU 600MM M8 600 M8 580
10214 HANDLE QC ALU 200MM M8 BLACK 200 M8 235
10215 HANDLE QC ALU 250MM M8 BLACK 250 M8 275
10216 HANDLE QC ALU 300MM M8 BLACK 300 M8 320
10217 HANDLE QC ALU 350MM M8 BLACK 350 M8 360
10218 HANDLE QC ALU 400MM M8 BLACK 400 M8 405
10928 HANDLE QC ALU 600MM M8 BLACK 600 M8 580
