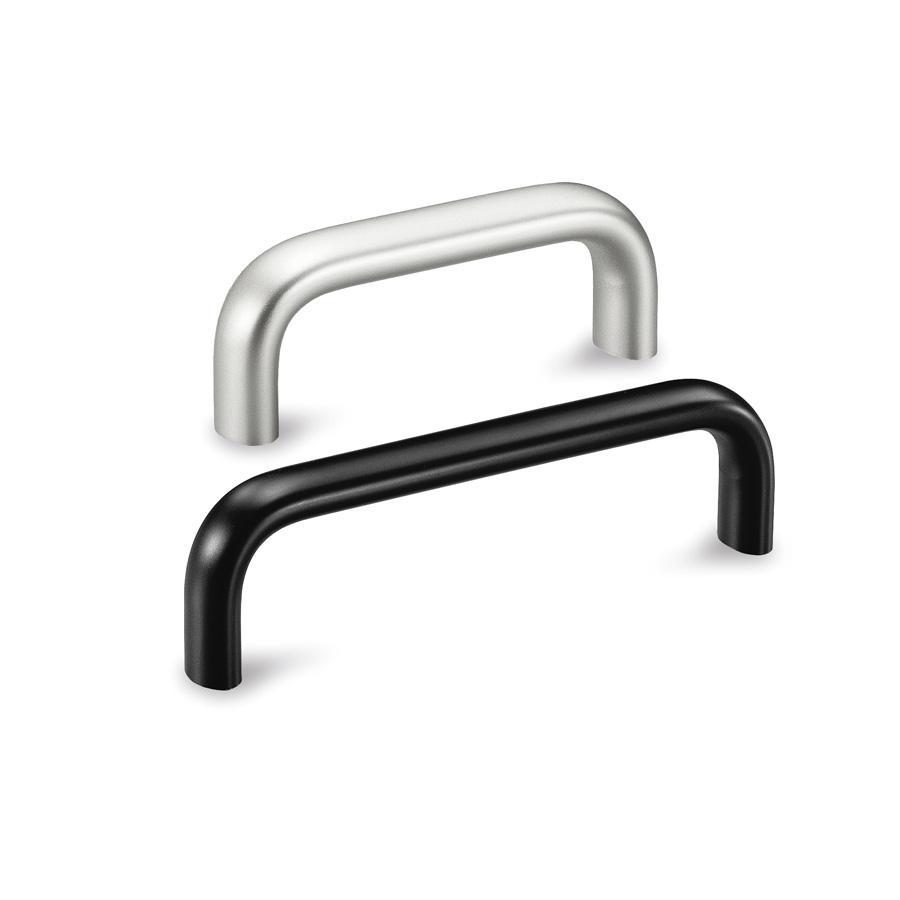

Handle  RM

in aluminium

Aluminium pull handles : Handle  RM
in aluminium
  • Reach
  • Rohs
Handle made of oval-profiled aluminium AlMgSi 0.5, surface ground and anodized, with a matt finish. Stress resistance  minimum 1000 N.

AVAILABLE VERSIONS


01 / Width 20mm

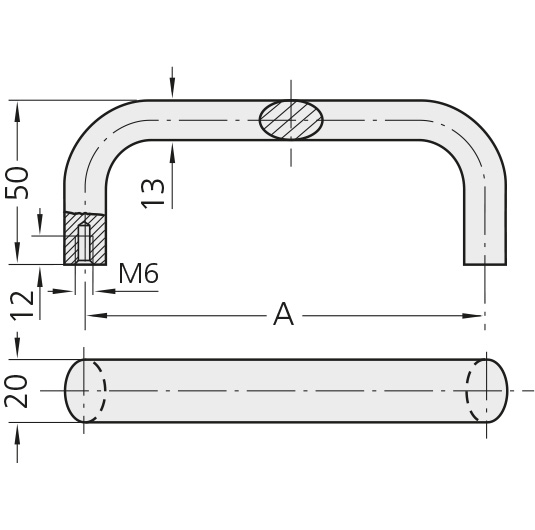

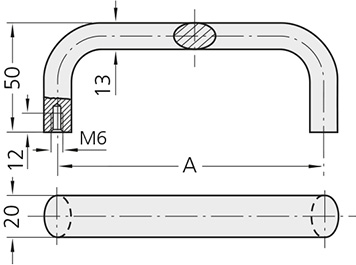

Schéma 1 + Handle  RM
in aluminium
REF DESIGNATION A FIXATION Wight (g) 3D Quote
10185 HANDLE RM ALU 100MM D.20 M6 100 M6 89
10186 HANDLE RM ALU 112MM D.20 M6 112 M6 95
10187 HANDLE RM ALU 120MM D.20 M6 120 M6 99
10188 HANDLE RM ALU 128MM D.20 M6 128 M6 103
10189 HANDLE RM ALU 160MM D.20 M6 160 M6 119
10185N HANDLE RM ALU 100MM D.20 M6 BLACK 100 M6 89
10186N HANDLE RM ALU 112MM D.20 M6 BLACK 112 M6 95
10187N HANDLE RM ALU 120MM D.20 M6 BLACK 120 M6 99
10188N HANDLE RM ALU 128MM D.20 M6 BLACK 128 M6 103
10189N HANDLE RM ALU 160MM D.20 M6 BLACK 160 M6 119

02 / Width 26mm

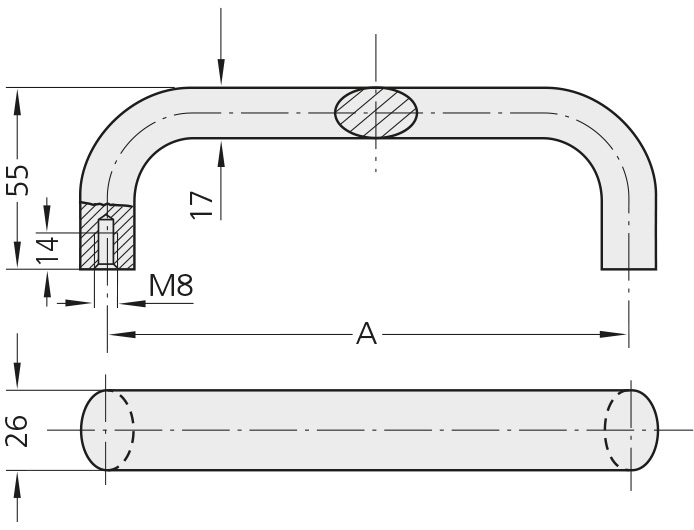

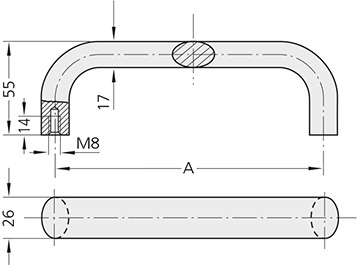

Schéma 2 + Handle  RM
in aluminium
REF DESIGNATION A FIXATION Wight (g) 3D Quote
10190 HANDLE RM ALU 112MM D.20 M8 112 M8 167
10191 HANDLE RM ALU 120MM D.26 M8 120 M8 174
10192 HANDLE RM ALU 128MM D.26 M8 128 M8 181
10193 HANDLE RM ALU 160MM D.28 M8 160 M8 211
10194 HANDLE RM ALU 180MM D.28 M8 180 M8 229
10195 HANDLE RM ALU 192MM D.28 M8 192 M8 241
10196 HANDLE RM ALU 350MM D.28 M8 350 M8 387
10190N HANDLE RM ALU 112MM D.20 M8 BLACK 112 M8 167
10191N HANDLE RM ALU 120MM D.26 M8 BLACK 120 M8 174
10192N HANDLE RM ALU 128MM D.26 M8 BLACK 128 M8 181
10193N HANDLE RM ALU 160MM D.28 M8 BLACK 160 M8 211
10194N HANDLE RM ALU 180MM D.28 M8 BLACK 180 M8 229
10195N HANDLE RM ALU 192MM D.28 M8 BLACK 192 M8 241
10196N HANDLE RM ALU 350MM D.28 M8 BLACK 350 M8 387
