Handle CS

in aluminium

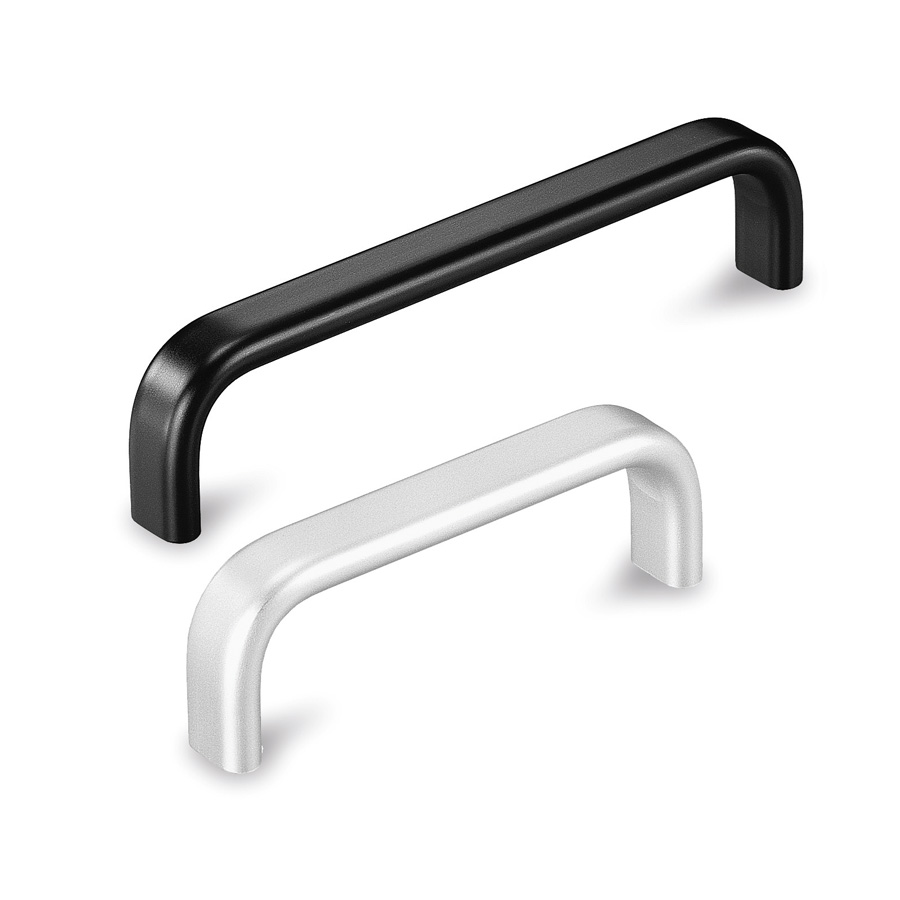

Aluminium pull handles : Handle CS
in aluminium
  • Reach
  • Rohs
Handle made of oval aluminium AlMgSi 0.5, ground and anodized with a matt finish. Stress resistance minimum 500 N.

AVAILABLE VERSIONS


01 / width 12mm

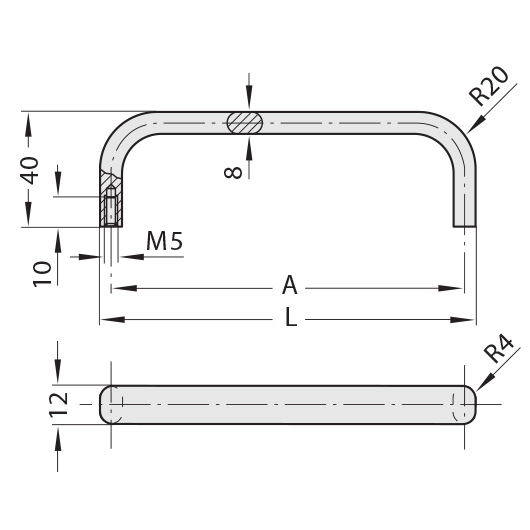

Schéma 1 + Handle CS
in aluminium
REF DESIGNATION A B FIXATION Wight (g) 3D Quote
10024 HANDLE CS ALU 55MM FITTING M5 55 63 M5 24
10025 HANDLE CS ALU 88MM FITTING M5 88 96 M5 30
10026 HANDLE CS ALU 100MM FITTING M5 100 108 M5 32
10028 HANDLE CS ALU 120MM FITTING M5 120 128 M5 37
10029 HANDLE CS ALU 180MM FITTING M5 180 188 M5 50
10030 HANDLE CS ALU 200MM FITTING M5 200 208 M5 55
10031 HANDLE CS ALU 235MM FITTING M5 235 243 M5 64
10032 HANDLE CS ALU 250MM FITTING M5 250 258 M5 68
10024N HANDLE CS ALU 55MM FITTING M5 BLACK 55 63 M5 24
10025N HANDLE CS ALU 88MM FITTING M5 BLACK 88 96 M5 30
10026N HANDLE CS ALU 100MM FITTING M5 BLACK 100 108 M5 32
10028N HANDLE CS ALU 120MM FITTING M5 BLACK 120 128 M5 37
10029N HANDLE CS ALU 180MM FITTING M5 BLACK 180 188 M5 50
10030N HANDLE CS ALU 200MM FITTING M5 BLACK 200 208 M5 55
10031N HANDLE CS ALU 235MM FITTING M5 BLACK 235 243 M5 64
10032N HANDLE CS ALU 250MM FITTING M5 BLACK 250 258 M5 68

02 / Width 20mm

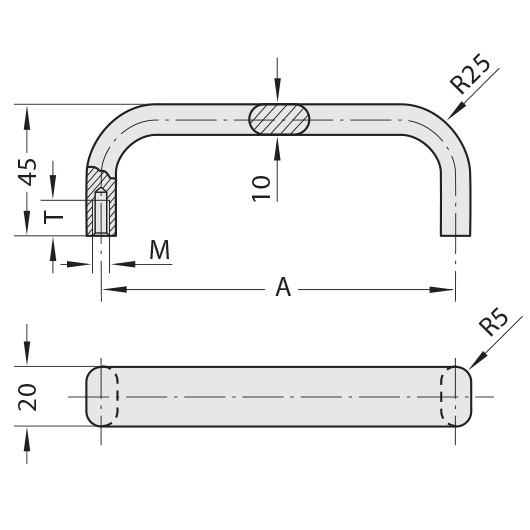

Schéma 2 + Handle CS
in aluminium
REF DESIGNATION A M T Wight (g) 3D Quote
10197 HANDLE CS ALU 120MM FITTING M5 120 M5 10 84
10940 HANDLE CS ALU 140MM FITTING M5 140 M5 10 95
10198 HANDLE CS ALU 180MM FITTING M5 180 M5 10 114
10199 HANDLE CS ALU 200MM FITTING M5 200 M5 10 123
10200 HANDLE CS ALU 350MM FITTING M6 350 M6 12 195
10197N HANDLE CS ALU 120MM FITTING M5 BLACK 120 M5 10 84
10940N HANDLE CS ALU 140MM FITTING M5 BLACK 140 M5 10 95
10198N HANDLE CS ALU 180MM FITTING M5 BLACK 180 M5 10 114
10199N HANDLE CS ALU 200MM FITTING M5 BLACK 200 M5 10 123
10200N HANDLE CS ALU 350MM FITTING M5 BLACK 350 M6 12 195
