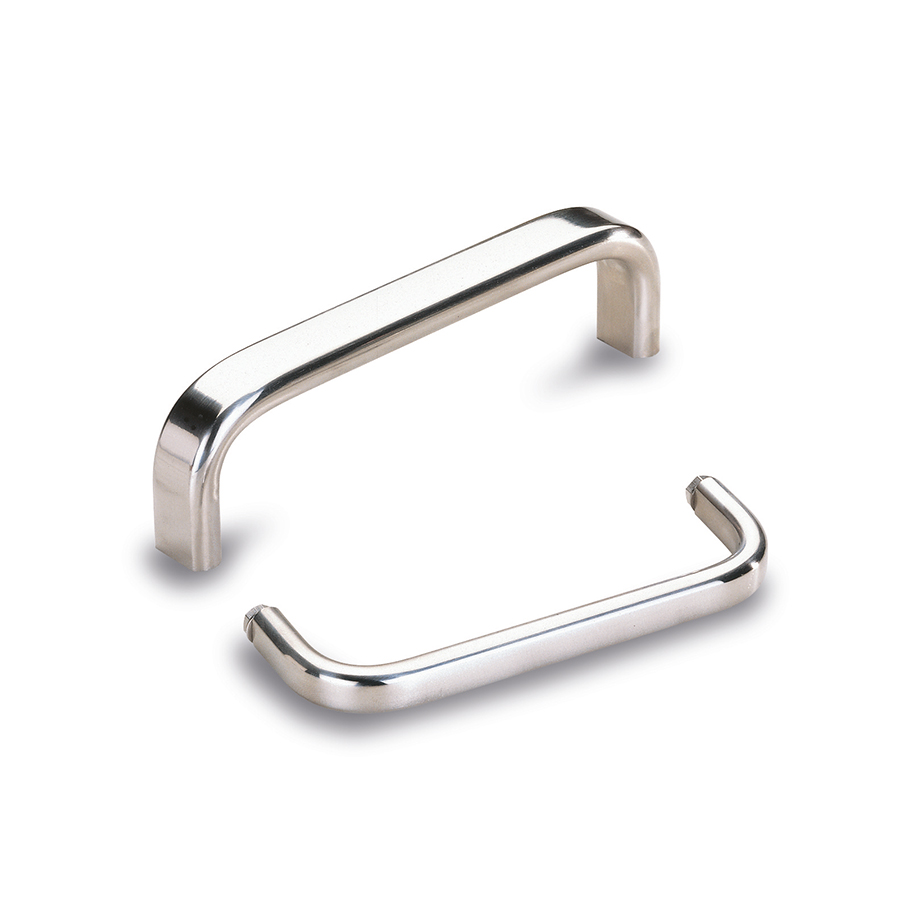

Handle RNX

in full stainless steel

Stainless steel handles : Handle RNX
in full stainless steel
  • Reach
  • Rohs
Handle made of profiled stainless steel 1.4307, surface ground with a half-matt finish, supplied with stainless screws and washers. Stress resistance min. 1000 N.

AVAILABLE VERSIONS

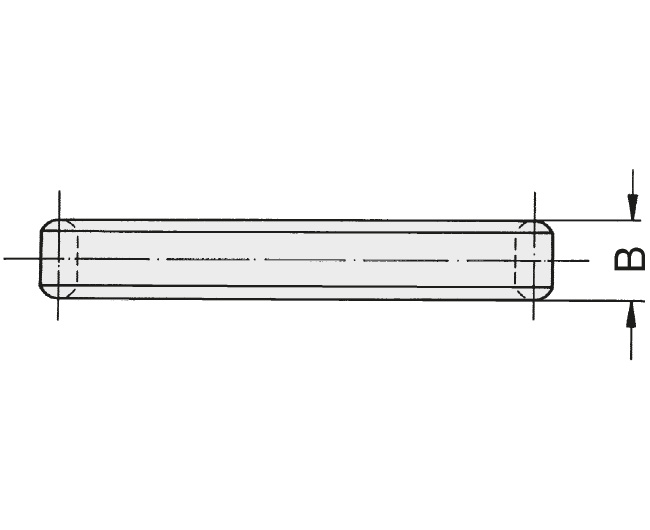

01 / width 12mm

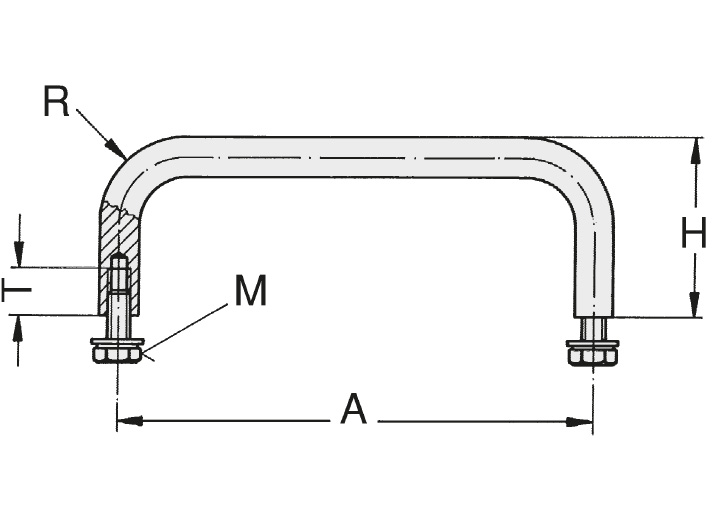

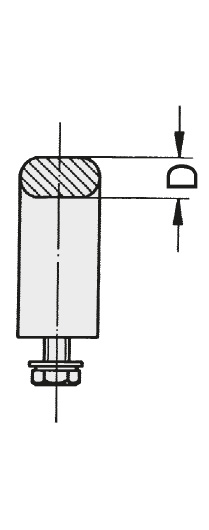

REF DESIGNATION A B D H M R T Wight (g) 3D Quote
10401i HANDLE RNX STAINL. 100MM D.8 FITTING M5 100 12 8 40 M5x10 22 10 105
10402i HANDLE RNX STAINL. 120MM D.8 FITTING M5 120 12 8 40 M5x10 22 10 118
10403i HANDLE RNX STAINL. 150MM D.8 FITTING M5 150 12 8 40 M5x10 22 10 138
10404i HANDLE RNX STAINL. 180MM D.8 FITTING M5 180 12 8 40 M5x10 22 10 158
10405i HANDLE RNX STAINL. 250MM D.8 FITTING M5 250 12 8 40 M5x10 22 10 205
10406i HANDLE RNX STAINL. 350MM D.8 FITTING M5 350 12 8 40 M5x10 22 10 271

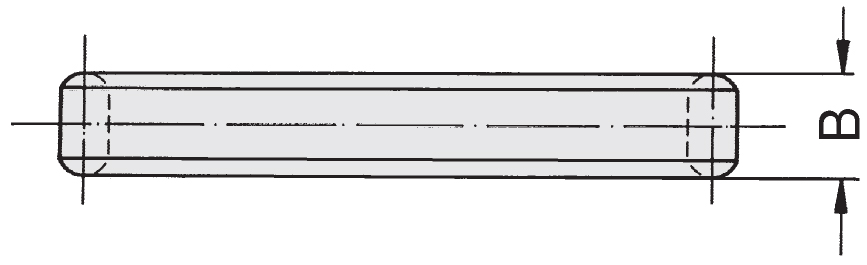

02 / width 19,5mm

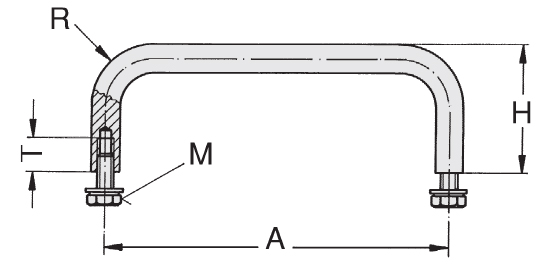

REF DESIGNATION A B D H M R T Wight (g) 3D Quote
10407i HANDLE RNX STAINL. 100MM D.10 FITTING M6 100 19,5 10 45 M6x12 24 12 216
10408i HANDLE RNX STAINL. 120MM D.10 FITTING M6 120 19,5 10 45 M6x12 24 12 241
10409i HANDLE RNX STAINL. 150MM D.10 FITTING M6 150 19,5 10 45 M6x12 24 12 279
10410i HANDLE RNX STAINL. 180MM D.10 FITTING M6 180 19,5 10 45 M6x12 24 12 318
10411i HANDLE RNX STAINL. 250MM D.10 FITTING M6 250 19,5 10 45 M6x12 24 12 407
10412i HANDLE RNX STAINL. 350MM D.10 FITTING M6 350 19,5 10 45 M6x12 24 12 535
