Pull handles

Stainless steel handles
Available variations

Handle RNX

in full stainless steel

Handle AR

in steel

Handle NVX

in full stainless steel

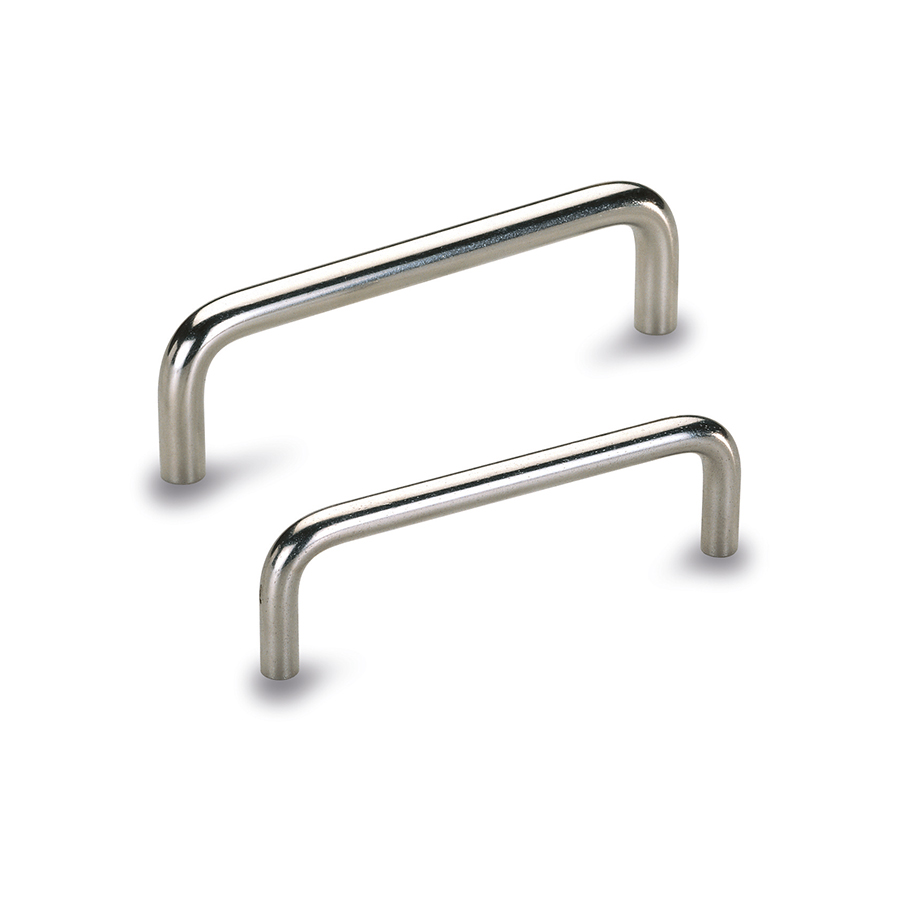

Stainless steel handles : Handle NVX in full stainless steel
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Handle made of round stainless steel 1.4305, gloss surface with a half-matt finish, supplied with stainless screws and washers. Stress resistance min. 1000 N.

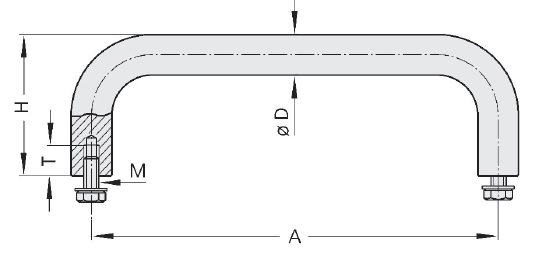

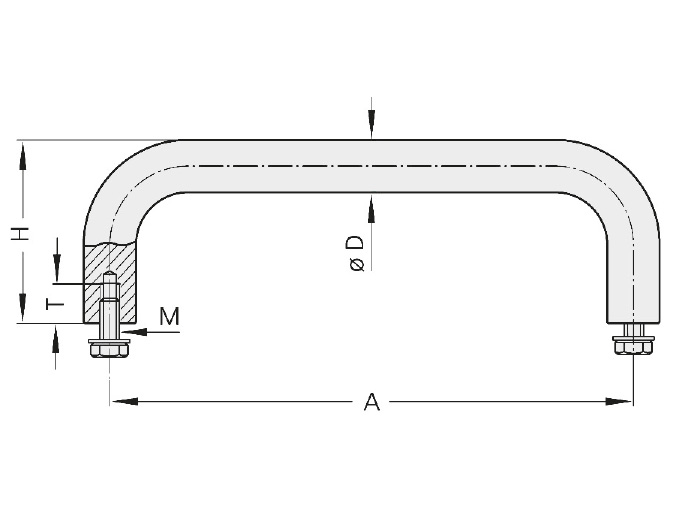

Schéma 1 + Handle NVX in full stainless steel

REF DESIGNATION D A H M T 3D Quote
10225i HANDLE NVX STAINL. 64MM FITTING M5 8 64 35 M5 x 10 10
10226i HANDLE NVX STAINL. 88MM FITTING M5 8 88 35 M5 x 10 10
10220i HANDLE NVX STAINL. 100MM FITTING M5 8 100 35 M5 x 10 10
10227i HANDLE NVX STAINL. 120MM FITTING M5 8 120 35 M5 x 10 10
10221i HANDLE NVX STAINL. 120MM FITTING M5 10 120 40 M5 x 10 10
10955i HANDLE NVX STAINL. 180MM FITTING M5 10 180 40 M5 x 10 10
10222i HANDLE NVX STAINL. 250MM FITTING M5 10 250 40 M5 x 10 10
10228i HANDLE NVX STAINL. 300MM FITTING M5 10 300 40 M5 x 10 10
10223i HANDLE NVX STAINL. 350MM FITTING M5 10 350 40 M5 x 10 10
10229i HANDLE NVX STAINL. 200MM FITTING M6 15 200 55 M6 x 12 12
10230i HANDLE NVX STAINL. 300MM FITTING M6 15 300 55 M6 x 12 12
10231i HANDLE NVX STAINL. 200MM FITTING M8 20 200 70 M8 x 16 16
10232i HANDLE NVX STAINL. 300MM FITTING M8 20 300 70 M8 x 16 16
