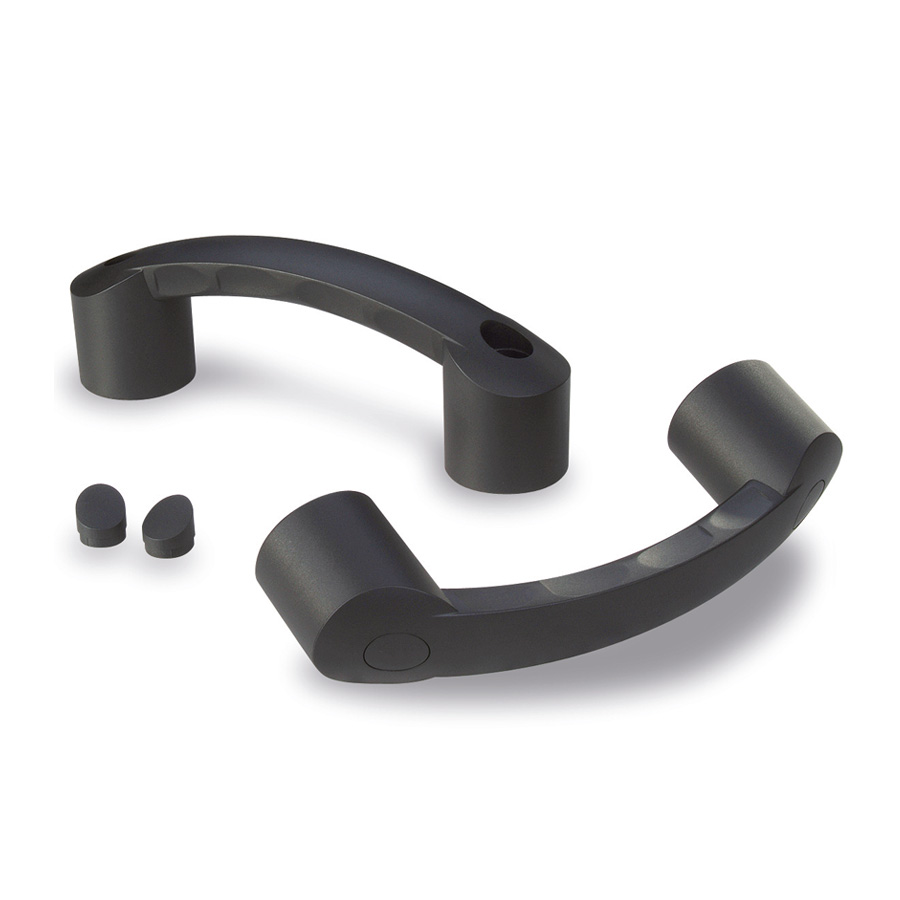

Plastic pull handles : Handle AT in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites
Handle made of glass fibre reinforced polyamide, color black matt, supplied with fastening material (galvanized head screws, nuts and washers). Stress resistance minimum 1000 N.

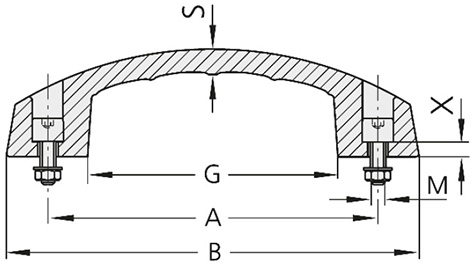

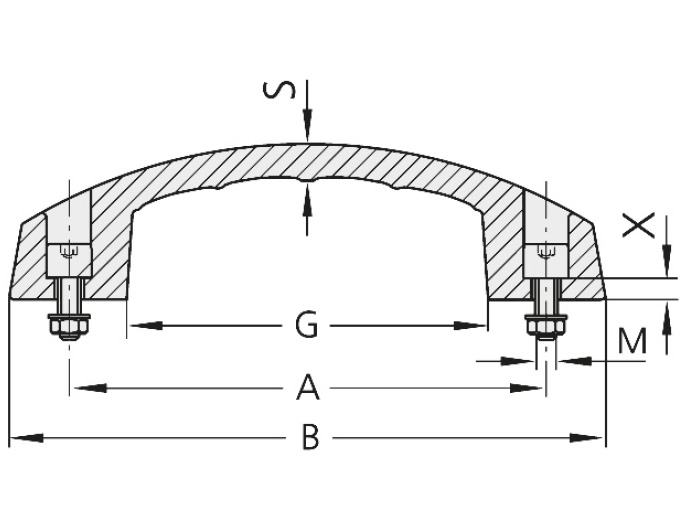

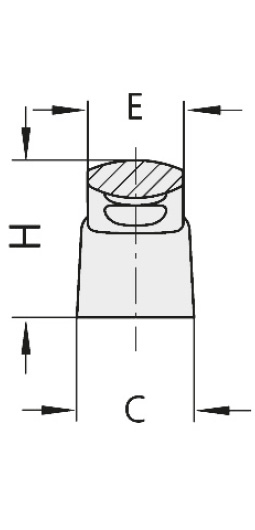

REF DESIGNATION A M B C E G H S X Wgt. (g) 3D Quote
16063 HANDLE AT POLYA. 120MM FITTING M6 120 M6 x 25 150 29 23 91 38 9 8 89
16062 HANDLE AT POLYA. 100MM FITTING M6 100 M6 x 25 130 27 22 79 38 9 5 83
16076 HANDLE AT POLYA. 140MM FITTING M8 CAPS 140 M8 x 30 178 38 26 101 59 17 8 89
16075 HANDLE AT POLYA. 120MM FITTING M8 CAPS 120 M8 x 30 153 33 22 87 51 15 5 83
