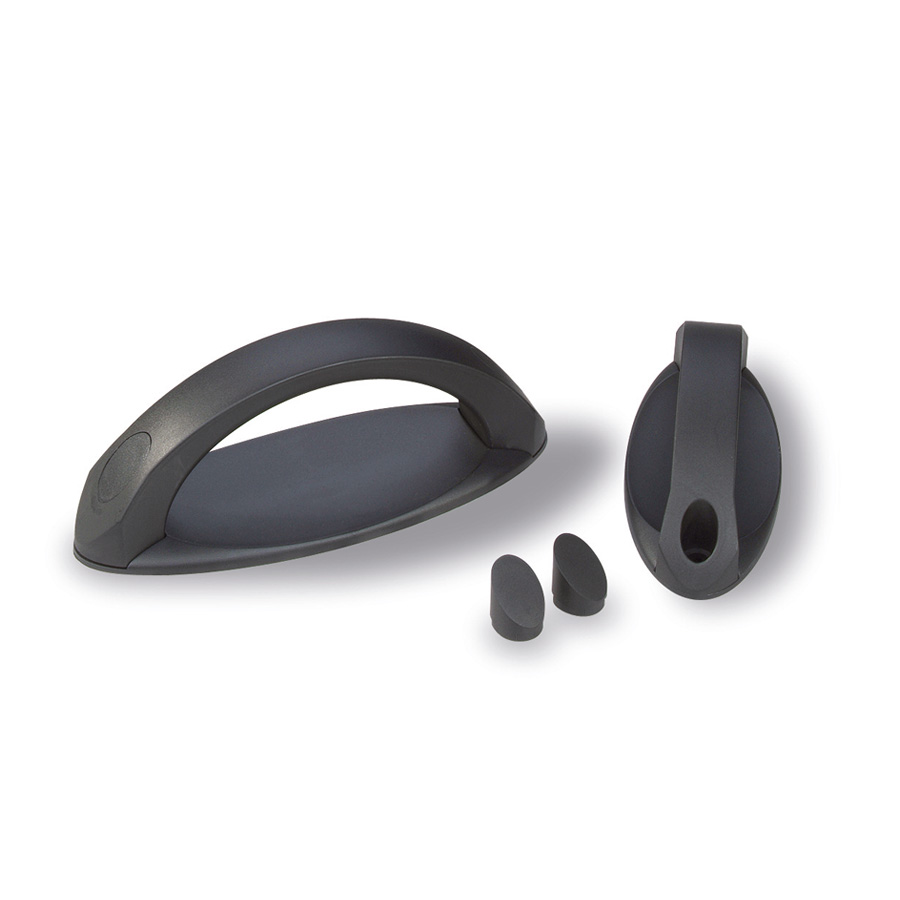

Handle AC

in composite plastic

 Plastic pull handles : Handle AC
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
Handle and plate made of glass fibre reinforced polyamide, color black matt, supplied with fastening material (galvanized head screws, nuts and washers). Stress resistance minimum 1000 N.

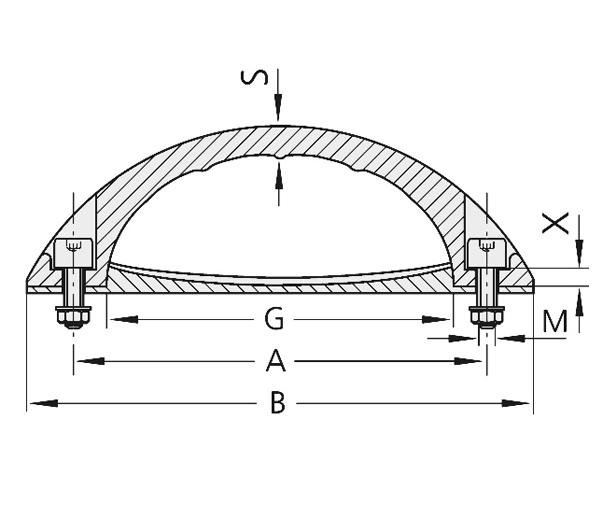

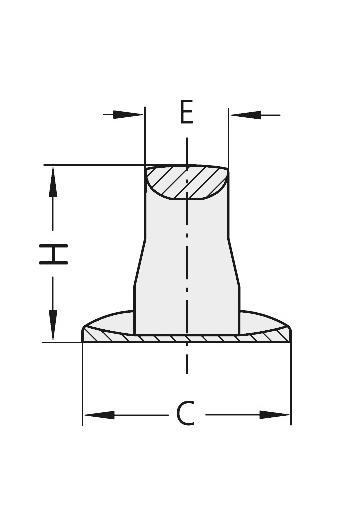

REF DESIGNATION A M B C E G H S X Wight (g) 3D Quote
16025 HANDLE AC POLYA. 100MM FITTING M6 + DECK 100 M6 x 25 121 48 19 84 40 11 6 95
16032 HANDLE AC POLYA. 120MM FITTING M6 + DECK 120 5,2 152 57 23 104 52 16 7 132
16033 HANDLE AC POLYA. 140MM FITTING M8 + DECK 140 6,8 177 62 25 122 56 19 7,5 176
