Handle DA

in steel

 Steel pull handles : Handle DA
in steel
  • Reach
  • Rohs

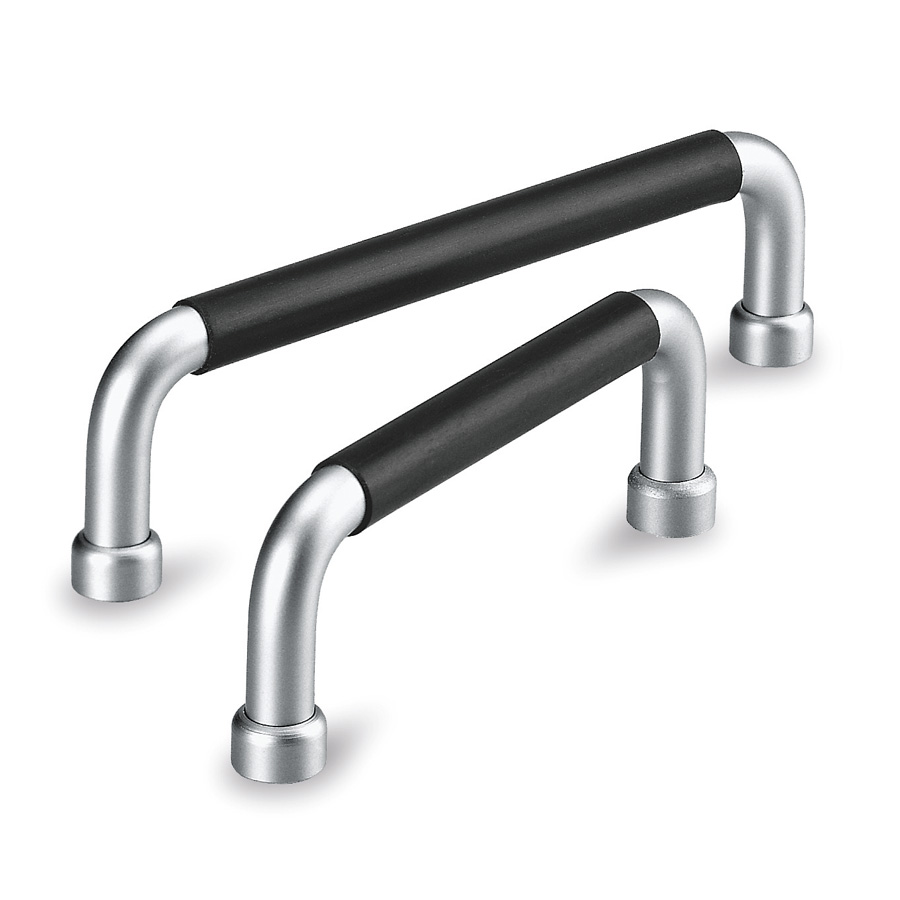

Handle made of round steel bar, precision ground and matt gloss chromium plated surface, supplied with plastic covering and matt gloss chromium plated brass end bushes. Stress resistance minimum 1000 N.

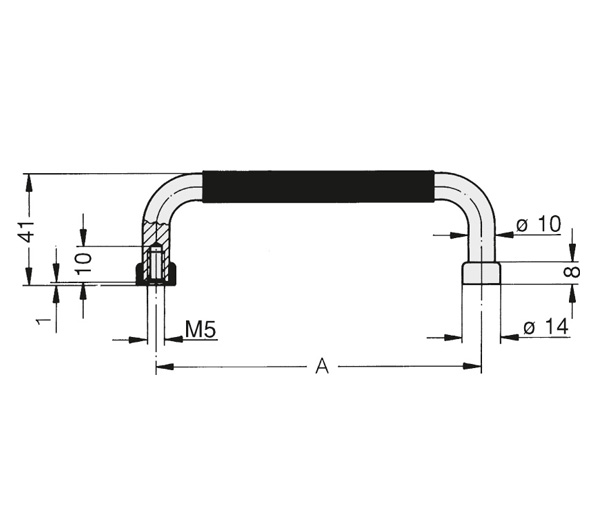

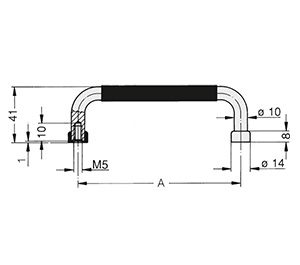

Schéma 1 + Handle DA
in steel

REF DESIGNATION A FIXATION Wight (g) 3D Quote
10580 HANDLE DA STEEL 55MM D.10 M5 COVER 55 M5 75
10581 HANDLE DA STEEL 88MM D.10 M5 COVER 88 M5 97
10582 HANDLE DA STEEL 100MM D.10 M5 COVER 100 M5 105
10583 HANDLE DA STEEL 102MM D.10 M5 COVER 102 M5 106
10584 HANDLE DA STEEL 115MM D.10 M5 COVER 115 M5 114
10585 HANDLE DA STEEL 120MM D.10 M5 COVER 120 M5 118
10586 HANDLE DA STEEL 136MM D.10 M5 COVER 136 M5 128
10587 HANDLE DA STEEL 180MM D.10 M5 COVER 180 M5 157
10588 HANDLE DA STEEL 200MM D.10 M5 COVER 200 M5 170
10589 HANDLE DA STEEL 235MM D.10 M5 COVER 235 M5 193
10590 HANDLE DA STEEL 250MM D.10 M5 COVER 250 M5 203
