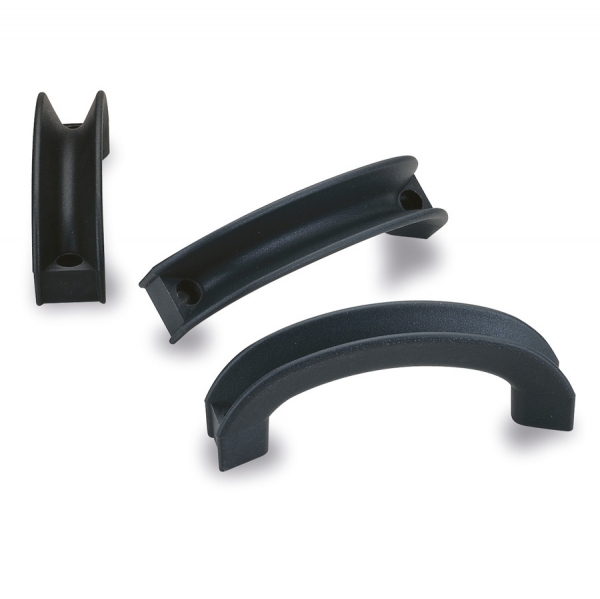

Handle ST

in composite plastic

 Plastic pull handles : Handle ST
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
Handle made of glass fibre reinforced polyamide, matt surface. Stress resistance minimum 1000 N.

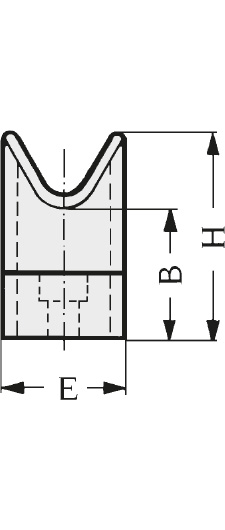

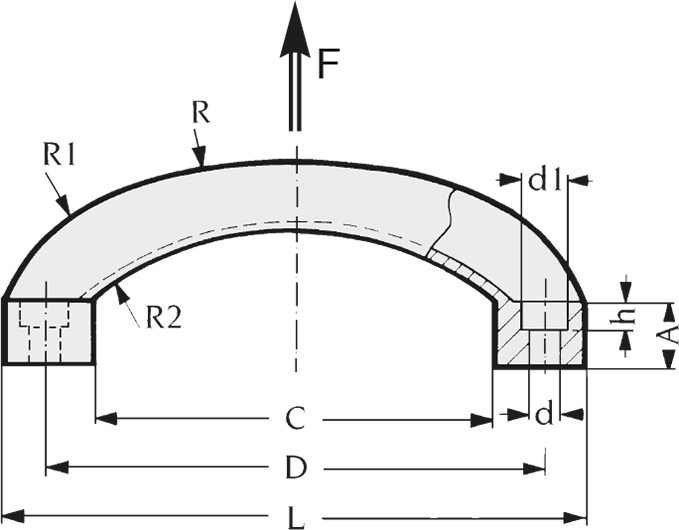

REF DESIGNATION D D_FIX A B C COULEUR d1 d E F H h L R R2 Wight (g) 3D Quote
4031 HANDLE ST POLYA 114MM FITTING M6 114 M6 15 29 92 Black 10,5 6,5 28 1000 48 6,5 134 117 79 37
4031G HANDLE ST POLYA 114MM FITTING M6 ANTHRAC 114 M6 15 29 92 Anthracite grey 10,5 6,5 28 1000 48 6,5 134 117 79 37
