Adjustable handle

in composite plastic

Adjustable handles and levers : Adjustable handle  in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

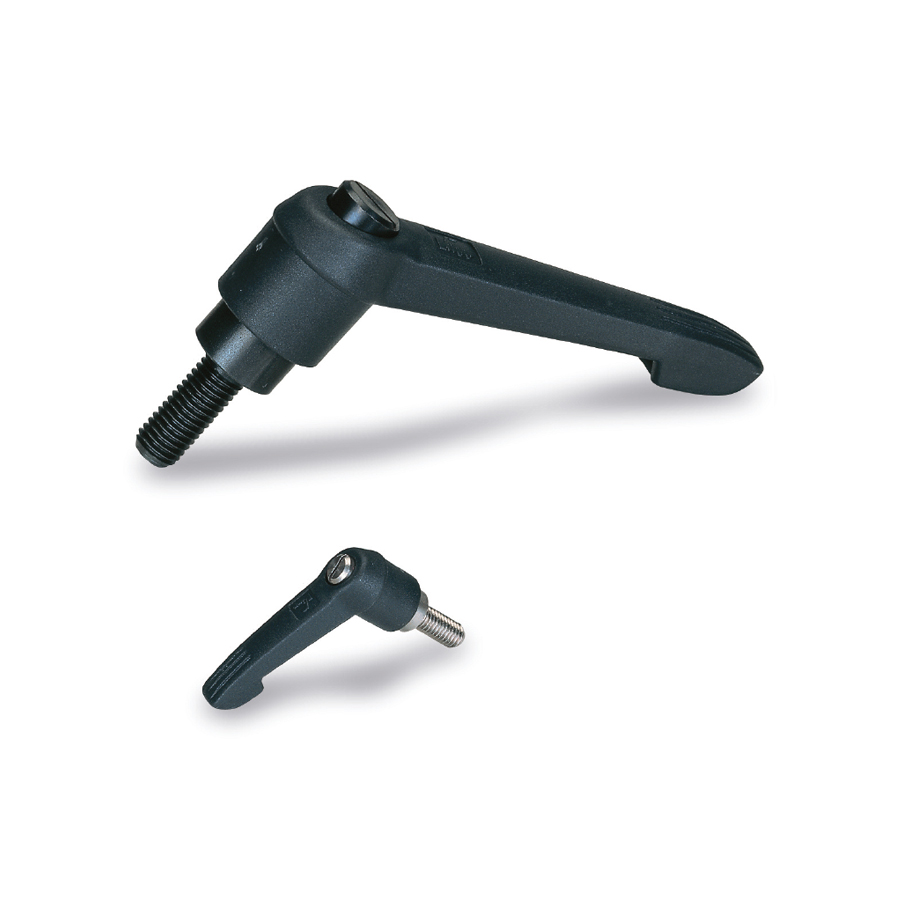

Handle made of glass fibre reinforced polyamide, anthracite grey, with insert made either of steel 5.8  with black oxide finish or stainless steel 1.4305, AISI 303 with natural finish.

AVAILABLE VERSIONS

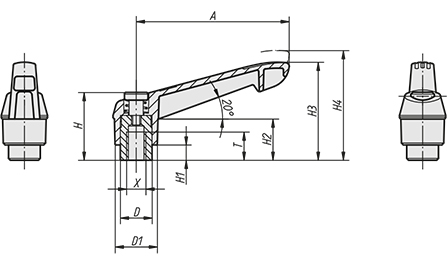

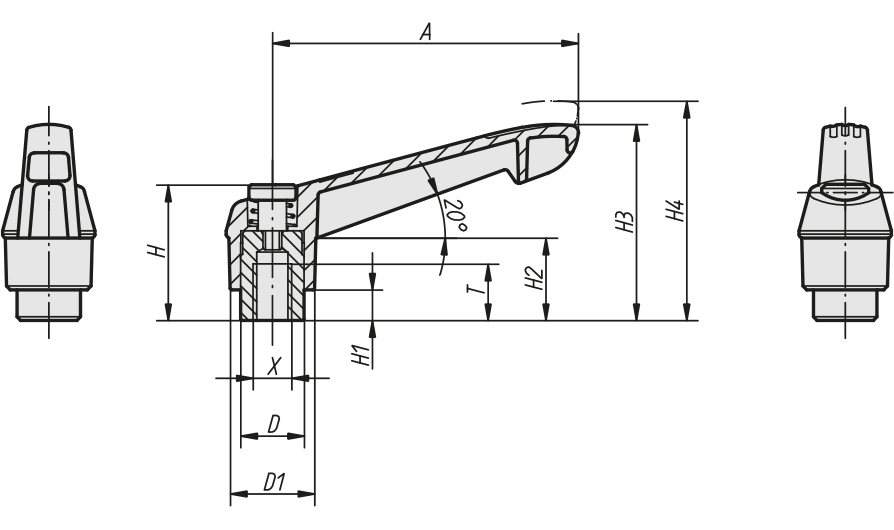

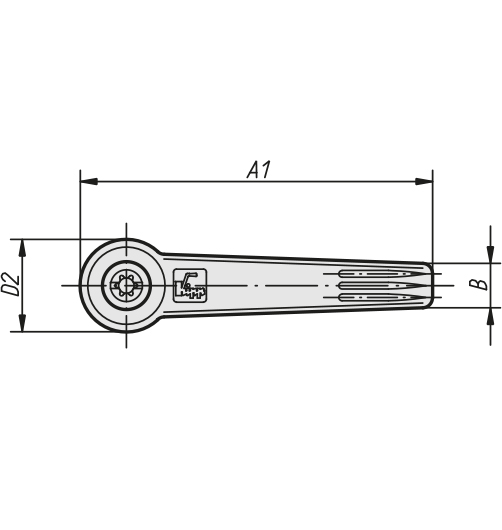

01 / Female insert

REF DESIGNATION A X A1 B D D1 H H1 H2 H3 H4 T Wgt. (g) 3D Quote
7104 ADJUSTABLE HANDLE POLYA. L.40 STEEL INS M4 40 M4 47 8 10 13 24 4 15 31 35 9 13
7105 ADJUSTABLE HANDLE POLYA. L.40 STEEL INS M5 40 M5 47 8 10 13 24 4 15 31 35 9 13
7106 ADJUSTABLE HANDLE POLYA. L.40 STEEL INS M6 40 M6 47 8 10 13 24 4 15 31 35 9 13
7206 ADJUSTABLE HANDLE POLYA. L.65 STEEL INS M6 65 M6 75 9 13,5 18 29 6,5 17,5 43 47 12 29
7208 ADJUSTABLE HANDLE POLYA. L.65 STEEL INS M8 65 M8 75 9 13,5 18 29 6,5 17,5 43 47 12 30
7308 ADJUSTABLE HANDLE POLYA. L.80 STEEL INS M8 80 M8 91 11 16 22 37,5 10 24 55 59 14 50
7310 ADJUSTABLE HANDLE POLYA. L.80 STEEL INS M10 80 M10 91 11 16 22 37,5 10 24 55 59 14 52
7410 ADJUSTABLE HANDLE POLYA. L.95 STEEL INS M10 95 M10 108 13 19 26 42,5 10 27 64 68 17 78
7412 ADJUSTABLE HANDLE POLYA. L.95 STEEL INS M12 95 M12 108 13 19 26 42,5 10 27 64 68 17 80
7512 ADJUSTABLE HANDLE POLYA. L.110 STEEL INS M12 110 M12 126 16 23 30 51 12 33 75 80 23 130
7516 ADJUSTABLE HANDLE POLYA. L.110 STEEL INS M16 110 M16 126 16 23 30 51 12 33 75 80 23 130
7105i ADJUSTABLE HANDLE POLYA. L.40 STAINL. INS M5 40 M5 47 8 10 13 24 4 15 31 35 9 14
7106i ADJUSTABLE HANDLE POLYA. L.40 STAINL. INS M6 40 M6 47 8 10 13 24 4 15 31 35 9 14
7206i ADJUSTABLE HANDLE POLYA. L.65 STAINL. INS M6 65 M6 75 9 13,5 18 29 6,5 17,5 43 47 12 31
7208i ADJUSTABLE HANDLE POLYA. L.65 STAINL. INS M8 65 M8 75 9 13,5 18 29 6,5 17,5 43 47 12 31
7308i ADJUSTABLE HANDLE POLYA. L.80 STAINL. INS M8 80 M8 91 11 16 21,5 37,5 10 24 55 59 14 53
7310i ADJUSTABLE HANDLE POLYA. L.80 STAINL. INS M10 80 M10 91 11 16 21,5 37,5 10 24 55 59 14 54
7410i ADJUSTABLE HANDLE POLYA. L.95 STAINL. INS M10 95 M10 108 13 19 25,5 42,5 10 27 64 68 17 80
7412i ADJUSTABLE HANDLE POLYA. L.95 STAINL. INS M12 95 M12 108 13 19 25,5 42,5 10 27 64 68 17 82
7512i ADJUSTABLE HANDLE POLYA. L.110 STAINL. INS M12 110 M12 126 16 23 30 51 12 33 75 80 23 134
7516i ADJUSTABLE HANDLE POLYA. L.110 STAINL. INS M16 110 M16 126 16 23 30 51 12 33 75 80 23 136

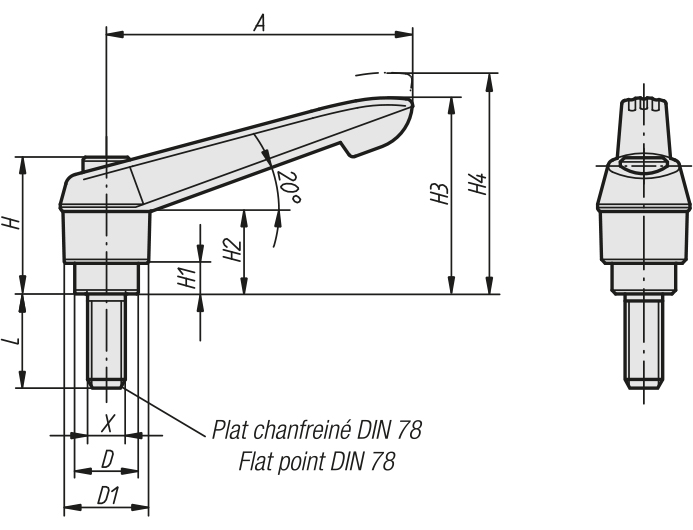

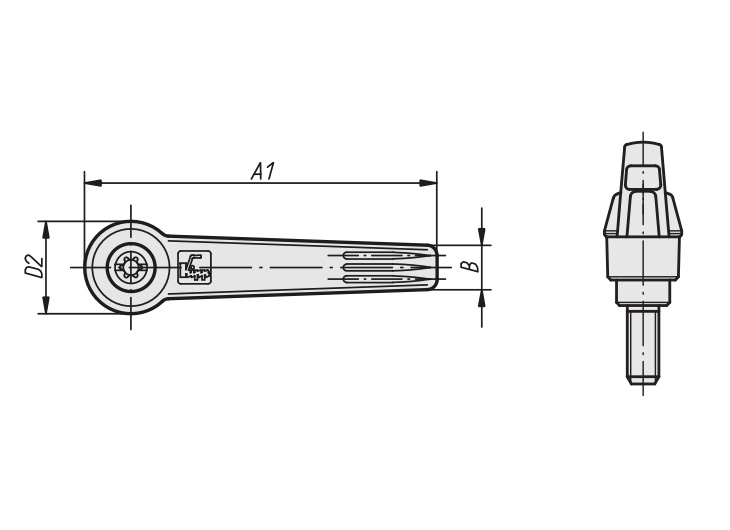

02 / With stud

REF DESIGNATION A X A1 D D1 H H1 H2 H3 H4 L 3D Quote
910510 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M5*10 40 M5 47 10 13 24 4 15 31 35 10
910515 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M5*15 40 M5 47 10 13 24 4 15 31 35 15
910520 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M5*20 40 M5 47 10 13 24 4 15 31 35 20
910525 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M5*25 40 M5 47 10 13 24 4 15 31 35 25
910530 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M5*30 40 M5 47 10 13 24 4 15 31 35 30
910535 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M5*35 40 M5 47 10 13 24 4 15 31 35 35
910540 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M5*40 40 M5 47 10 13 24 4 15 31 35 40
910550 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M5*50 40 M5 47 10 13 24 4 15 31 35 50
910610 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M6*10 40 M6 47 10 13 24 4 15 31 35 10
910615 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M6*15 40 M6 47 10 13 24 4 15 31 35 15
910620 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M6*20 40 M6 47 10 13 24 4 15 31 35 20
910625 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M6*25 40 M6 47 10 13 24 4 15 31 35 25
910630 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M6*30 40 M6 47 10 13 24 4 15 31 35 30
910635 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M6*35 40 M6 47 10 13 24 4 15 31 35 35
910640 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M6*40 40 M6 47 10 13 24 4 15 31 35 40
910650 ADJUSTABLE HANDLE POLYA. L.40 STEEL STUD M6*50 40 M6 47 10 13 24 4 15 31 35 50
920815 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*15 65 M8 75 13,5 18 29 6,5 17,5 43 47 15
920820 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*20 65 M8 75 13,5 18 29 6,5 17,5 43 47 20
920825 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*25 65 M8 75 13,5 18 29 6,5 17,5 43 47 25
920830 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*30 65 M8 75 13,5 18 29 6,5 17,5 43 47 30
920835 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*35 65 M8 75 13,5 18 29 6,5 17,5 43 47 35
920840 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*40 65 M8 75 13,5 18 29 6,5 17,5 43 47 40
920850 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*50 65 M8 75 13,5 18 29 6,5 17,5 43 47 50
920860 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*60 65 M8 75 13,5 18 29 6,5 17,5 43 47 60
921015 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M10*15 65 M10 75 13,5 18 29 6,5 17,5 43 47 15
921020 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M10*20 65 M10 75 13,5 18 29 6,5 17,5 43 47 20
921025 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M10*25 65 M10 75 13,5 18 29 6,5 17,5 43 47 25
921030 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M10*30 65 M10 75 13,5 18 29 6,5 17,5 43 47 30
921035 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M10*35 65 M10 75 13,5 18 29 6,5 17,5 43 47 35
921040 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M10*40 65 M10 75 13,5 18 29 6,5 17,5 43 47 40
921050 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M10*50 65 M10 75 13,5 18 29 6,5 17,5 43 47 50
921060 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M10*60 65 M10 75 13,5 18 29 6,5 17,5 43 47 60
931015 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*15 80 M10 91 16 22 37,5 10 24 55 59 15
931020 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*20 80 M10 91 16 22 37,5 10 24 55 59 20
931025 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*25 80 M10 91 16 22 37,5 10 24 55 59 25
931030 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*30 80 M10 91 16 22 37,5 10 24 55 59 30
931035 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*35 80 M10 91 16 22 37,5 10 24 55 59 35
931040 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*40 80 M10 91 16 22 37,5 10 24 55 59 40
931050 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*50 80 M10 91 16 22 37,5 10 24 55 59 50
931060 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*60 80 M10 91 16 22 37,5 10 24 55 59 60
941020 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M10*20 95 M10 108 19 26 42,5 10 27 64 68 20
941025 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M10*25 95 M10 108 19 26 42,5 10 27 64 68 25
941030 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M10*30 95 M10 108 19 26 42,5 10 27 64 68 30
941035 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M10*35 95 M10 108 19 26 42,5 10 27 64 68 35
941040 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M10*40 95 M10 108 19 26 42,5 10 27 64 68 40
941050 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M10*50 95 M10 108 19 26 42,5 10 27 64 68 50
941060 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M10*60 95 M10 108 19 26 42,5 10 27 64 68 60
941080 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M10*80 95 M10 108 19 26 42,5 10 27 64 68 80
941220 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M12*20 95 M12 108 19 26 42,5 10 27 64 68 20
941225 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M12*25 95 M12 108 19 26 42,5 10 27 64 68 25
941230 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M12*30 95 M12 108 19 26 42,5 10 27 64 68 30
941235 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M12*35 95 M12 108 19 26 42,5 10 27 64 68 35
941240 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M12*40 95 M12 108 19 26 42,5 10 27 64 68 40
941250 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M12*50 95 M12 108 19 26 42,5 10 27 64 68 50
941260 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M12*60 95 M12 108 19 26 42,5 10 27 64 68 60
941280 ADJUSTABLE HANDLE POLYA. L.95 STEEL STUD M12*80 HC 95 M12 108 19 26 42,5 10 27 64 68 80
951225 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M12*25 HC 110 M12 126 23 30 51 12 33 75 80 25
951230 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M12*30 HC 110 M12 126 23 30 51 12 33 75 80 30
951235 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M12*35 HC 110 M12 126 23 30 51 12 33 75 80 35
951240 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M12*40 HC 110 M12 126 23 30 51 12 33 75 80 40
951250 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M12*50 HC 110 M12 126 23 30 51 12 33 75 80 50
951260 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M12*60 HC 110 M12 126 23 30 51 12 33 75 80 60
951280 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M12*80 HC 110 M12 126 23 30 51 12 33 75 80 80
951625 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M16*25 110 M16 126 23 30 51 12 33 75 80 25
951630 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M16*30 110 M16 126 23 30 51 12 33 75 80 30
951635 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M16*35 110 M16 126 23 30 51 12 33 75 80 35
951640 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M16*40 110 M16 126 23 30 51 12 33 75 80 40
951650 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M16*50 110 M16 126 23 30 51 12 33 75 80 50
951660 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M16*60 110 M16 126 23 30 51 12 33 75 80 60
951680 ADJUSTABLE HANDLE POLYA. L.110 STEEL STUD M16*80 110 M16 126 23 30 51 12 33 75 80 80
910515i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M5*15 40 M5 47 10 13 24 4 15 31 35 15
910520i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M5*20 40 M5 47 10 13 24 4 15 31 35 20
910525i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M5*25 40 M5 47 10 13 24 4 15 31 35 25
910610i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M6*10 40 M6 47 10 13 24 4 15 31 35 10
910615i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M6*15 40 M6 47 10 13 24 4 15 31 35 15
910620i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M6*20 40 M6 47 10 13 24 4 15 31 35 20
910625i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M6*25 40 M6 47 10 13 24 4 15 31 35 25
910630i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M6*30 40 M6 47 10 13 24 4 15 31 35 30
910640i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M6*40 40 M6 47 10 13 24 4 15 31 35 40
910650i ADJUSTABLE HANDLE POLYA. L.40 STAINL. STUD M6*50 40 M6 47 10 13 24 4 15 31 35 50
920815i ADJUSTABLE HANDLE POLYA. L.65 STAINL. STUD M8*15 65 M8 75 13,5 18 29 6,5 17,5 43 47 15
920820i ADJUSTABLE HANDLE POLYA. L.65 STAINL. STUD M8*20 65 M8 75 13,5 18 29 6,5 17,5 43 47 20
920825i ADJUSTABLE HANDLE POLYA. L.65 STAINL. STUD M8*25 65 M8 75 13,5 18 29 6,5 17,5 43 47 25
920830i ADJUSTABLE HANDLE POLYA. L.65 STAINL. STUD M8*30 65 M8 75 13,5 18 29 6,5 17,5 43 47 30
920840i ADJUSTABLE HANDLE POLYA. L.65 STAINL. STUD M8*40 65 M8 75 13,5 18 29 6,5 17,5 43 47 40
920850i ADJUSTABLE HANDLE POLYA. L.65 STAINL. STUD M8*50 65 M8 75 13,5 18 29 6,5 17,5 43 47 50
920860i ADJUSTABLE HANDLE POLYA. L.65 STAINL. STUD M8*60 65 M8 75 13,5 18 29 6,5 17,5 43 47 60
931020i ADJUSTABLE HANDLE POLYA. L.80 STAINL. STUD M10*20 65 M10 91 16 22 37,5 10 24 55 59 20
931025i ADJUSTABLE HANDLE POLYA. L.80 STAINL. STUD M10*25 65 M10 91 16 22 37,5 10 24 55 59 25
931030i ADJUSTABLE HANDLE POLYA. L.80 STAINL. STUD M10*30 65 M10 91 16 22 37,5 10 24 55 59 30
931040i ADJUSTABLE HANDLE POLYA. L.80 STAINL. STUD M10*40 65 M10 91 16 22 37,5 10 24 55 59 40
931050i ADJUSTABLE HANDLE POLYA. L.80 STAINL. STUD M10*50 65 M10 91 16 22 37,5 10 24 55 59 50
931060i ADJUSTABLE HANDLE POLYA. L.80 STAINL. STUD M10*60 65 M10 91 16 22 37,5 10 24 55 59 60
941225i ADJUSTABLE HANDLE POLYA. L.95 STAINL. STUD M12*25 95 M12 108 19 26 42,5 10 27 64 68 25
941230i ADJUSTABLE HANDLE POLYA. L.95 STAINL. STUD M12*30 95 M12 108 19 26 42,5 10 27 64 68 30
941240i ADJUSTABLE HANDLE POLYA. L.95 STAINL. STUD M12*40 95 M12 108 19 26 42,5 10 27 64 68 40
941250i ADJUSTABLE HANDLE POLYA. L.95 STAINL. STUD M12*50 95 M12 108 19 26 42,5 10 27 64 68 50
941260i ADJUSTABLE HANDLE POLYA. L.95 STAINL. STUD M12*60 95 M12 108 19 26 42,5 10 27 64 68 60
951630i ADJUSTABLE HANDLE POLYA. L.110 STAINL. STUD M16*30 110 M16 126 23 30 51 12 33 75 80 30
951640i ADJUSTABLE HANDLE POLYA. L.110 STAINL. STUD M16*40 110 M16 126 23 30 51 12 33 75 80 40
951650i ADJUSTABLE HANDLE POLYA. L.110 STAINL. STUD M16*50 110 M16 126 23 30 51 12 33 75 80 50
951660i ADJUSTABLE HANDLE POLYA. L.110 STAINL. STUD M16*60 110 M16 126 23 30 51 12 33 75 80 60
