Handle CE

in steel

Adjustable handles and levers : Handle CE in steel
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

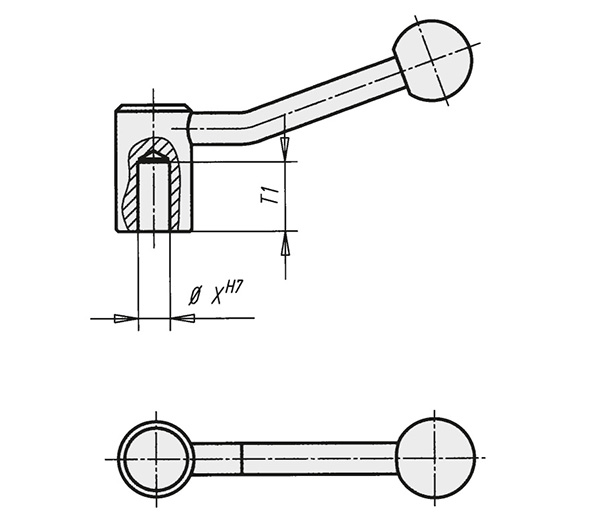

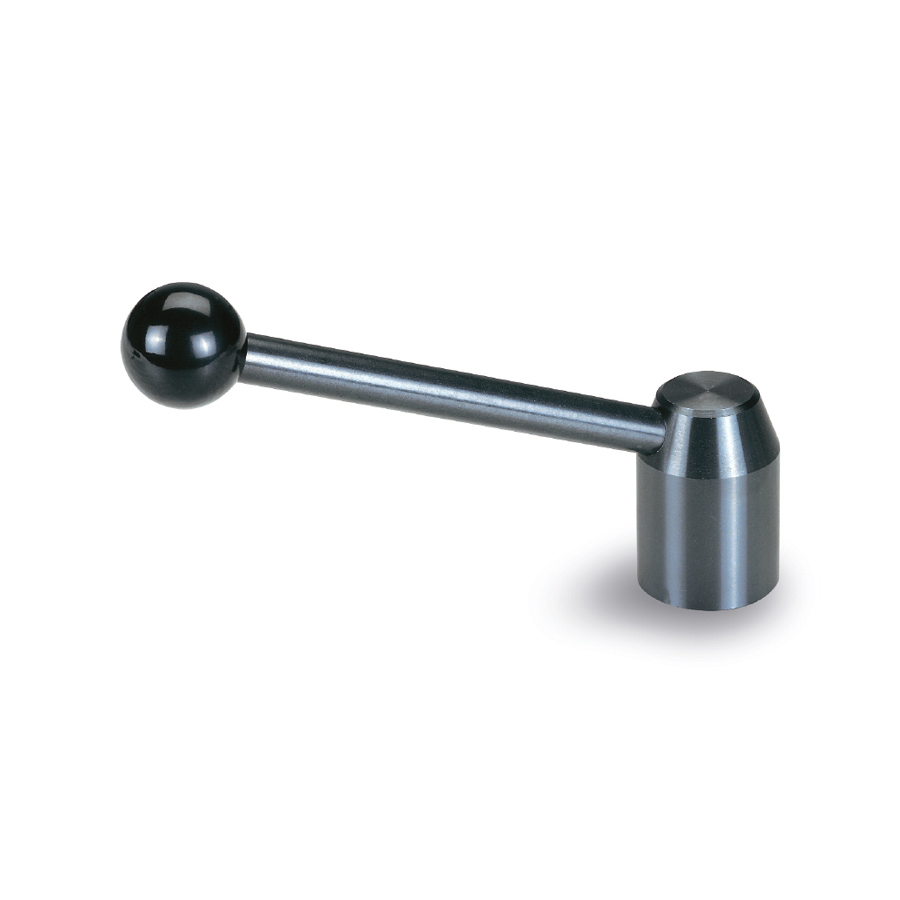

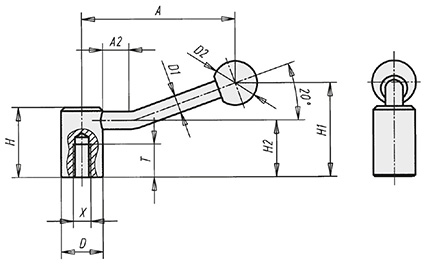

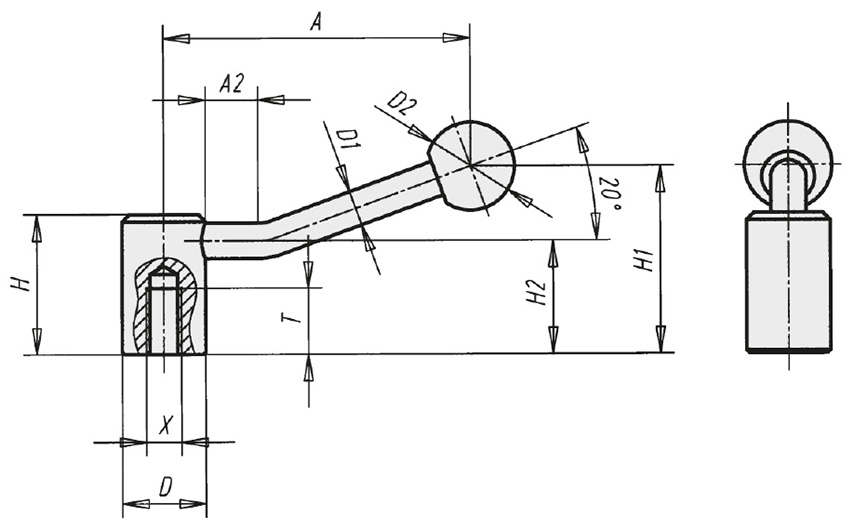

Control handle in steel 5.8 with black oxide finish. Ball knob in black duroplast. New design in 02/2015, see drawing below.

AVAILABLE VERSIONS

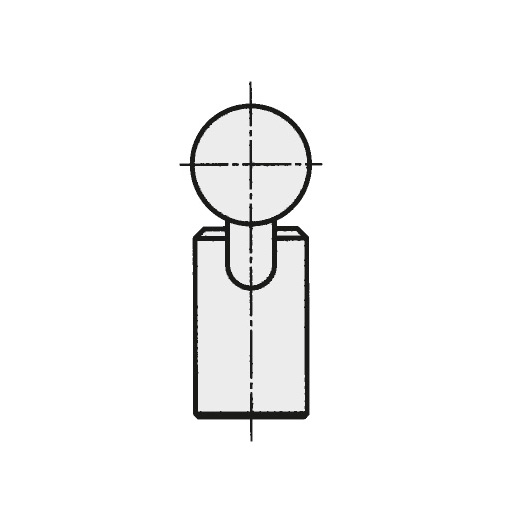

01 / internal thread

REF DESIGNATION A T D D1 D2 H H1 T1 X Wgt. (g) 3D Quote
7178 HANDLE CE STEEL L.84 M8 81 18 24 10 25 40 60 22 M8 170
8121 HANDLE CE STEEL L.84 M10 81 19 24 10 25 40 60 22 M10 170
8122 HANDLE CE STEEL L.100 M12 99 20 28 11 30 46 71 25 M12 260
8123 HANDLE CE STEEL L.121 M16 118 23 33 12 32 52 82 28 M16 380
8124 HANDLE CE STEEL L.123 M20 136 26 41 14 37 61 94 32 M20 660

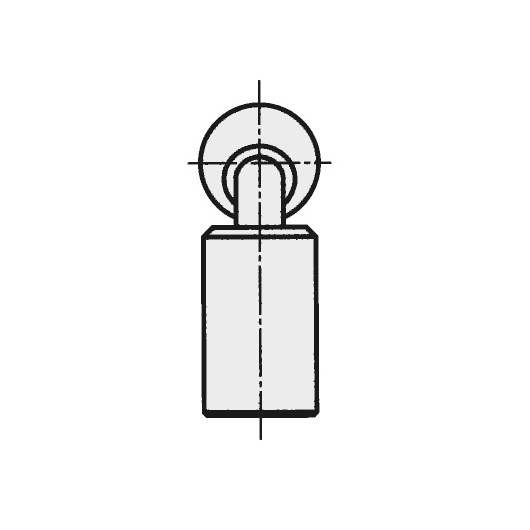

02 / Without thread

REF DESIGNATION A T D D2 H H1 T1 X Wgt. (g) 3D Quote
7180 HANDLE CE STEEL L.84 BORE 8MM 81 18 24 25 40 60 22 8 170
8131 HANDLE CE STEEL L.84 BORE 10MM 81 19 24 25 40 60 22 10 170
8132 HANDLE CE STEEL L.100 BORE 12MM 99 20 28 30 46 71 25 12 260
7181 HANDLE CE STEEL L.100 BORE 14MM 99 20 28 30 46 71 25 12 260
8133 HANDLE CE STEEL L.121 BORE 16MM 118 23 33 32 52 82 28 16 380
7182 HANDLE CE STEEL L.121 BORE 18MM 118 23 33 32 52 82 28 16 380
8134 HANDLE CE STEEL L.123 BORE 20MM 136 26 41 37 61 94 32 20 660
