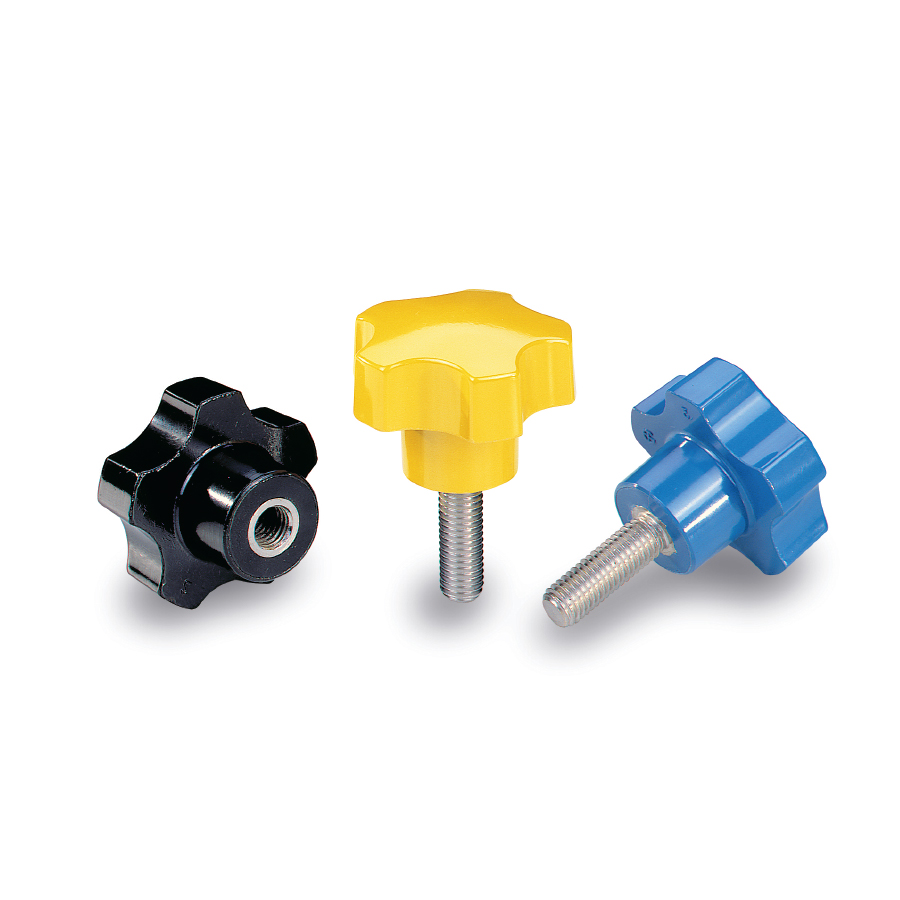

Knob AS

in composite plastic

 Star knobs and grips : Knob AS
in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius
Knob made of high-duty, heat resistant duroplast, black, high gloss surface. Insert in zinc plated steel (or brass for 2534 and 2535).

AVAILABLE VERSIONS

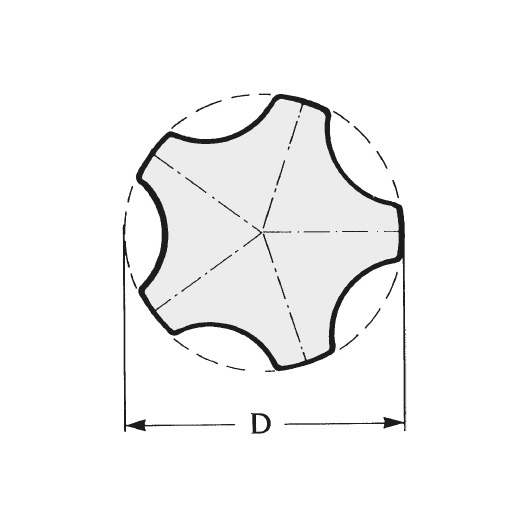

Schéma 1 + Knob AS
in composite plastic

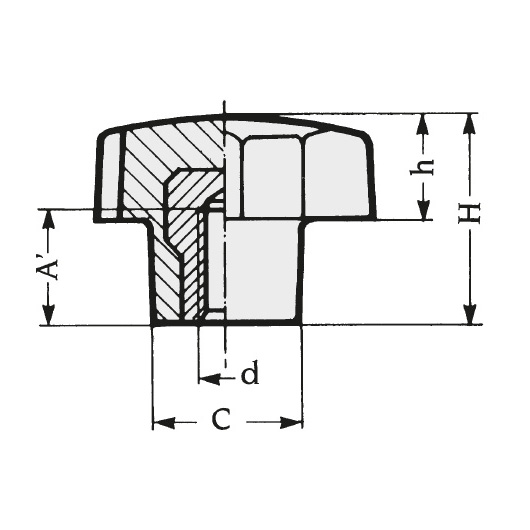

01 / Female insert

Schéma 2 + Knob AS
in composite plastic
REF DESIGNATION D d A' C H h Wight (g) 3D Quote
2534 KNOB AS BAK. D.32 BRASS INS M5 32 M5 10 16 22,4 11,2 14
2535 KNOB AS BAK. D.32 BRASS INS M6 32 M6 9 16 22,4 11,2 15
2512 KNOB AS BAK. D.40 STEEL INS M6 40 M6 12 20 28 14 30
2513 KNOB AS BAK. D.40 STEEL INS M8 40 M8 14 20 28 14 34
2514 KNOB AS BAK. D.40 STEEL INS M10 40 M10 14 20 28 14 36
2523 KNOB AS BAK. D.50 STEEL INS M8 50 M8 14 25 35 17,5 56
2524 KNOB AS BAK. D.50 STEEL INS M10 50 M10 14 25 35 17,5 60

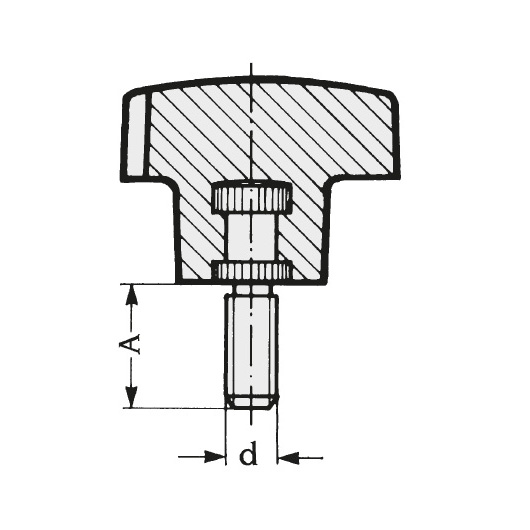

02 / With stud

Schéma 3 + Knob AS
in composite plastic
REF DESIGNATION D d A C H h Wight (g) 3D Quote
2536 KNOB AS BAK. D.32 STEEL STUD M6*12 32 M6 12 16 22,4 11,2 15
2538 KNOB AS BAK. D.32 STEEL STUD M6*18 32 M6 18 16 22,4 11,2 20
2540 KNOB AS BAK. D.32 STEEL STUD M8*16 32 M8 16 16 22,4 11,2 22
2542 KNOB AS BAK. D.32 STEEL STUD M8*24 32 M8 24 16 22,4 11,2 30
2517 KNOB AS BAK. D.40 STEEL STUD M6*18 40 M6 18 20 28 14 35
2519 KNOB AS BAK. D.40 STEEL STUD M8*16 40 M8 16 20 28 14 35
2520 KNOB AS BAK. D.40 STEEL STUD M8*20 40 M8 20 20 28 14 40
2521 KNOB AS BAK. D.40 STEEL STUD M8*24 40 M8 24 20 28 14 45
2705 KNOB AS BAK. D.40 STEEL STUD M10*30 40 M10 30 20 28 14 50
2526 KNOB AS BAK. D.50 STEEL STUD M8*16 50 M8 16 25 35 17,5 56
2528 KNOB AS BAK. D.50 STEEL STUD M8*24 50 M8 24 25 35 17,5 63
2530 KNOB AS BAK. D.50 STEEL STUD M10*20 50 M10 20 25 35 17,5 76
2532 KNOB AS BAK. D.50 STEEL STUD M10*30 50 M10 30 25 35 17,5 76
