Knob BRT

in composite plastic

 Star knobs and grips : Knob BRT
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

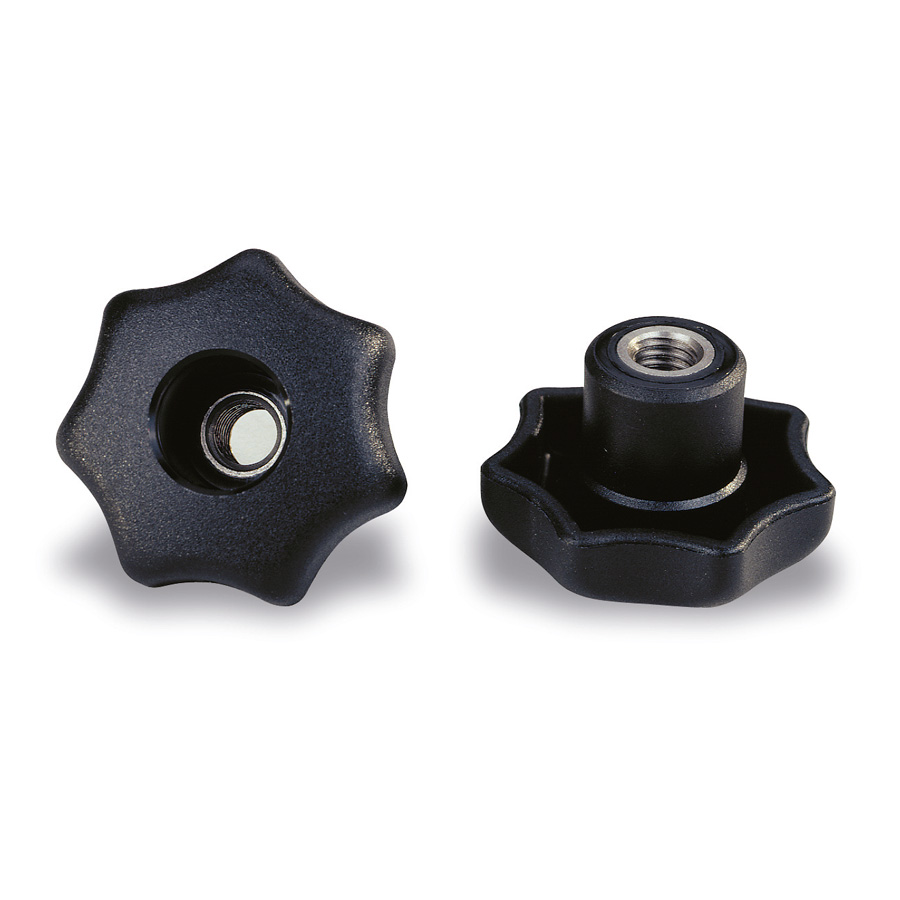

Knob made of glass fibre reinforced polyamide, black matt, with insert either in zinc plated steel 5.8 or stainless steel 1.4305 AISI 303.

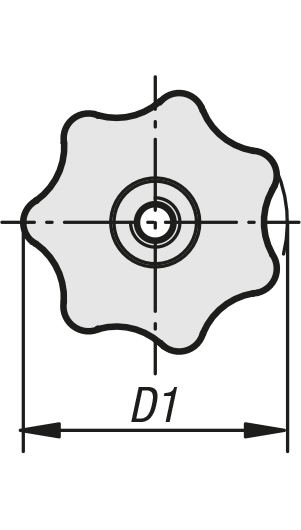

Schéma 1 + Knob BRT
in composite plastic

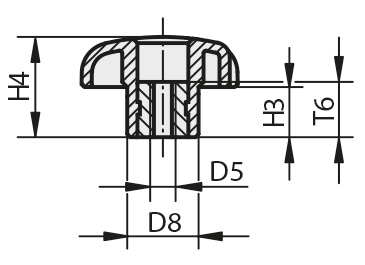

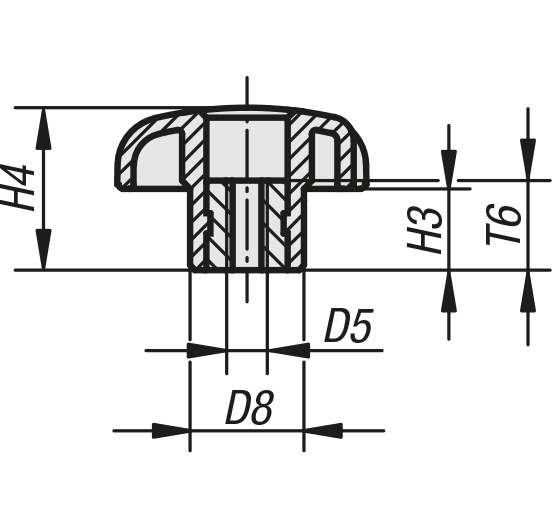

Schéma 2 + Knob BRT
in composite plastic
REF DESIGNATION D1 D5 H4 D8 H3 Wight (g) 3D Quote
9627 KNOB BRT POLYA D25 STEEL INS THROUGH M4 25 M4 16 12 8 11
9628 KNOB BRT POLYA D25 STEEL INS THROUGH M5 25 M5 16 12 8 10
9629 KNOB BRT POLYA D25 STEEL INS THROUGH M6 25 M6 16 12 8 10
9630 KNOB BRT POLYA D32 STEEL INS THROUGH M5 32 M5 20 14 10 13
9631 KNOB BRT POLYA D32 STEEL INS THROUGH M6 32 M6 20 14 10 13
9632 KNOB BRT POLYA D40 STEEL INS THROUGH M8 40 M8 25 18 13 25
9633 KNOB BRT POLYA D40 STEEL INS THROUGH M10 40 M10 25 18 13 24
9634 KNOB BRT POLYA D50 STEEL INS THROUGH M8 50 M8 32 22 17 50
9635 KNOB BRT POLYA D50 STEEL INS THROUGH M10 50 M10 32 22 17 48
9636 KNOB BRT POLYA D50 STEEL INS THROUGH M12 50 M12 32 22 17 46
9637 KNOB BRT POLYA D63 STEEL INS THROUGH M10 63 M10 40 26 21 90
9638 KNOB BRT POLYA D63 STEEL INS THROUGH M12 63 M12 40 26 21 88
9639 KNOB BRT POLYA D63 STEEL INS THROUGH M16 63 M16 40 26 21 87
9628i KNOB BRT POLYA. D.25 STAINL. THROUGH M5 25 M5 16 12 8 8
9631i KNOB BRT POLYA. D.32 STAINL. THROUGH M6 32 M6 20 14 10 10
9632i KNOB BRT POLYA. D.40 STAINL. THROUGH M8 40 M8 25 18 13 24
9635i KNOB BRT POLYA. D.50 STAINL. THROUGH M10 50 M10 32 22 17 40
9638i KNOB BRT POLYA. D.63 STAINL. THROUGH M12 63 M12 40 26 21 80
