Knob CN

in composite plastic

 Star knobs and grips : Knob CN
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

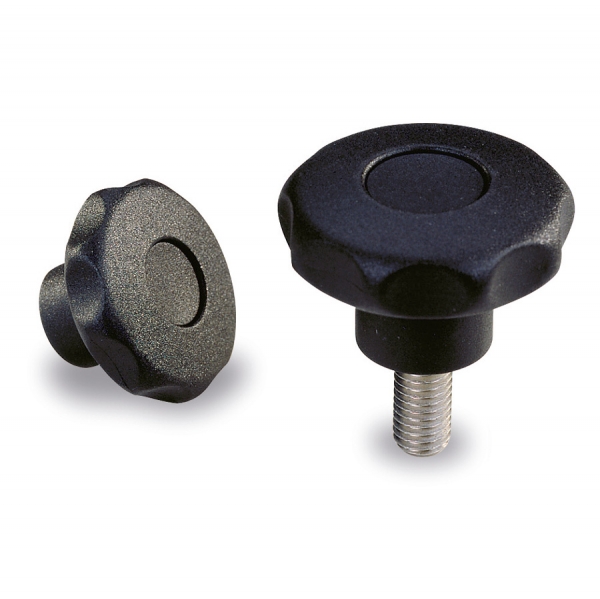

Knob in high resistance polyamide reinforced with glass fibres, black matt, with female insert and stud in zinc plated steel.

AVAILABLE VERSIONS

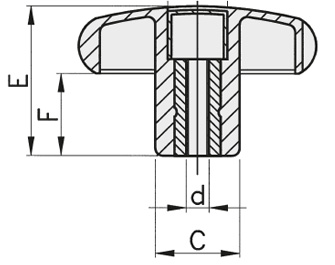

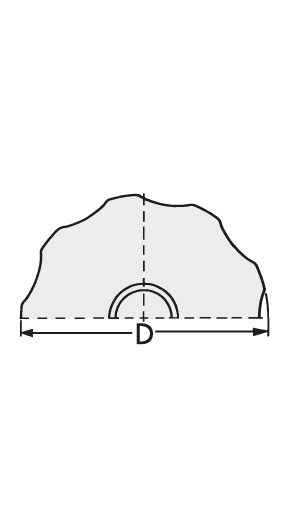

Schéma 1 + Knob CN
in composite plastic

01 / Female insert

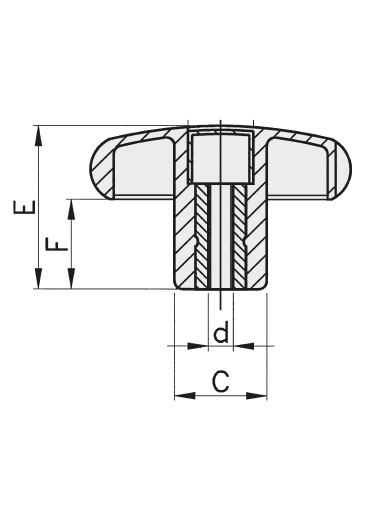

Schéma 2 + Knob CN
in composite plastic
REF DESIGNATION D d A B C E F Wight (g) 3D Quote
6110 KNOB CN POLYA. D.40 STEEL INS M6 40 M6 32 16 18 24 13 16
6111 KNOB CN POLYA. D.40 STEEL INS M8 40 M8 32 16 18 24 13 16
6131 KNOB CN POLYA. D.50 STEEL INS M8 50 M8 41 20 18 32 18 21
6132 KNOB CN POLYA. D.50 STEEL INS M10 50 M10 41 20 22,5 32 18 22
6151 KNOB CN POLYA. D.63 STEEL INS M10 63 M10 54 20 22,5 40 22 26
6152 KNOB CN POLYA. D.63 STEEL INS M12 63 M12 54 20 25 40 22 27

02 / With stud

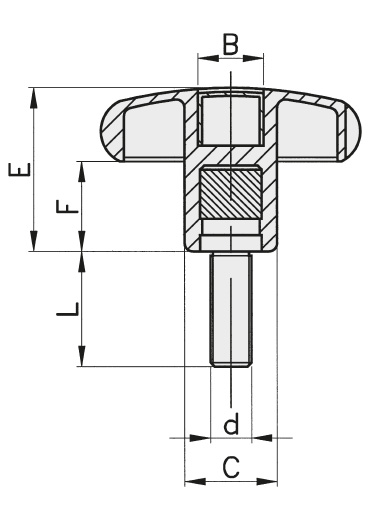

Schéma 3 + Knob CN
in composite plastic
REF DESIGNATION D d A B C E F L Wight (g) 3D Quote
610020 KNOB CN POLYA. D.40 STEEL STUD M6*20 40 M6 32 16 18 24 13 20 32
610030 KNOB CN POLYA. D.40 STEEL STUD M6*30 40 M6 32 16 18 24 13 30 32
610040 KNOB CN POLYA. D.40 STEEL STUD M6*40 40 M6 32 16 18 24 13 40 32
610050 KNOB CN POLYA. D.40 STEEL STUD M6*50 40 M6 32 16 18 24 13 50 32
610120 KNOB CN POLYA. D.40 STEEL STUD M8*20 40 M8 32 16 18 24 13 20 35
610125 KNOB CN POLYA. D.40 STEEL STUD M8*25 40 M8 32 16 18 24 13 25 35
610130 KNOB CN POLYA. D.40 STEEL STUD M8*30 40 M8 32 16 18 24 13 30 35
610140 KNOB CN POLYA. D.40 STEEL STUD M8*40 40 M8 32 16 18 24 13 40 35
610150 KNOB CN POLYA. D.40 STEEL STUD M8*50 40 M8 32 16 18 24 13 50 35
612120 KNOB CN POLYA. D.50 STEEL STUD M8*20 50 M8 41 20 18 32 18 20 37
612130 KNOB CN POLYA. D.50 STEEL STUD M8*30 50 M8 41 20 18 32 18 30 37
612140 KNOB CN POLYA. D.50 STEEL STUD M8*40 50 M8 41 20 18 32 18 40 37
612150 KNOB CN POLYA. D.50 STEEL STUD M8*50 50 M8 41 20 18 32 18 50 37
612230 KNOB CN POLYA. D.50 STEEL STUD M10*30 50 M10 41 20 22,5 32 18 30 42
612240 KNOB CN POLYA. D.50 STEEL STUD M10*40 50 M10 41 20 22,5 32 18 40 42
612250 KNOB CN POLYA. D.50 STEEL STUD M10*50 50 M10 41 20 22,5 32 18 50 42
614230 KNOB CN POLYA. D.63 STEEL STUD M12*30 63 M12 54 20 25 40 22 30 52
614240 KNOB CN POLYA. D.63 STEEL STUD M12*40 63 M12 54 20 25 40 22 40 52
614250 KNOB CN POLYA. D.63 STEEL STUD M12*50 63 M12 54 20 25 40 22 50 52
