Knob PC

in composite plastic

Star knobs and grips : Knob PC in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

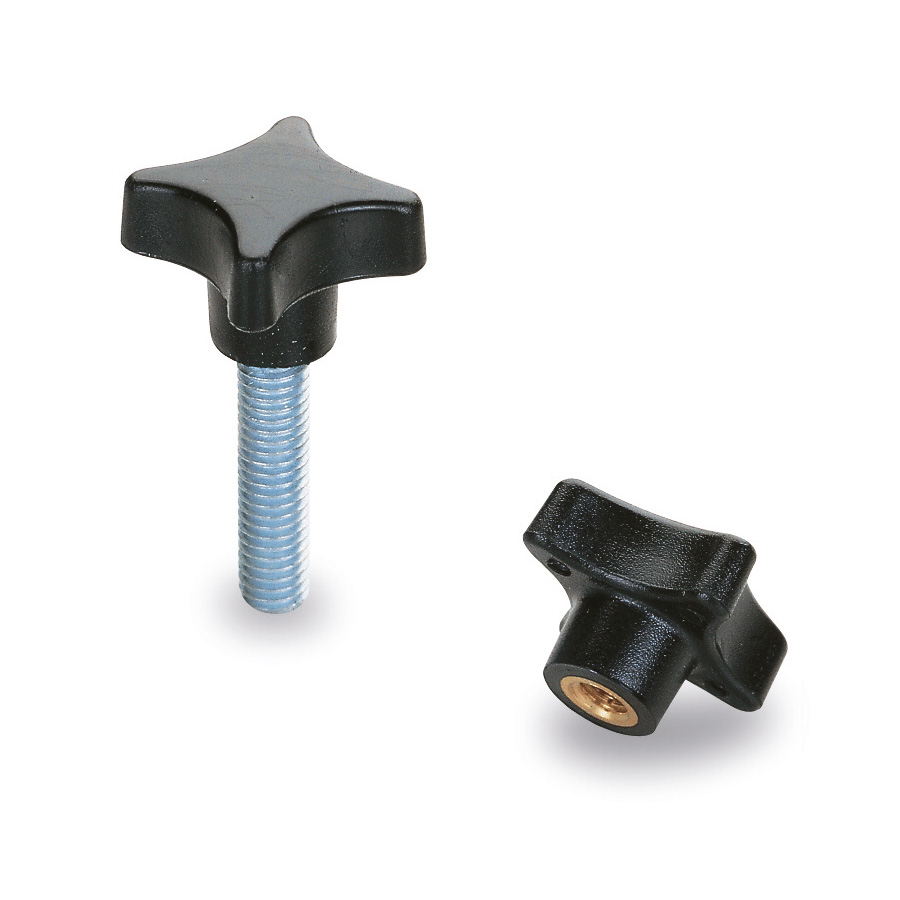

Knob in high resistance polyamide reinforced with glass fibres, black matt, with female insert in brass and stud in zinc plated steel.

AVAILABLE VERSIONS

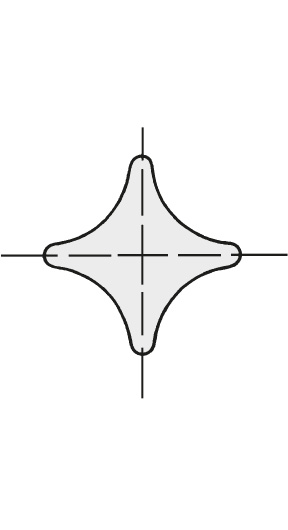

Schéma 1 + Knob PC in composite plastic

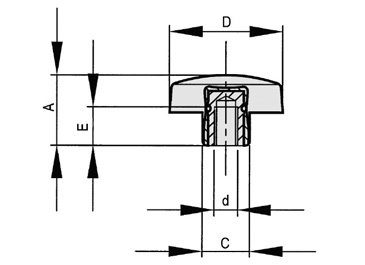

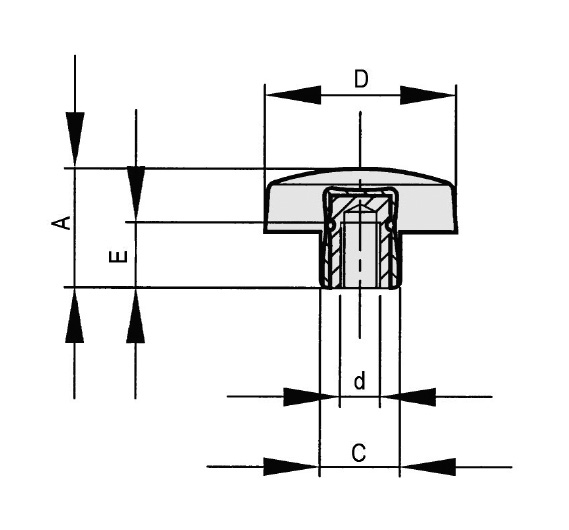

01 / Female insert

Schéma 2 + Knob PC in composite plastic
REF DESIGNATION D d A B C E 3D Quote
6610 KNOB PC POLYA. D.25 BRASS INS M4 25 M4 15 8 10 6
6611 KNOB PC POLYA. D.25 BRASS INS M5 25 M5 15 8 10 7,5

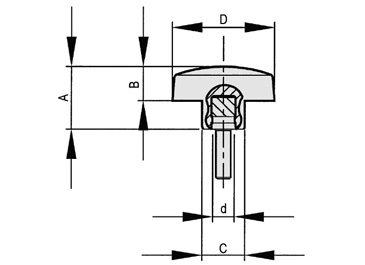

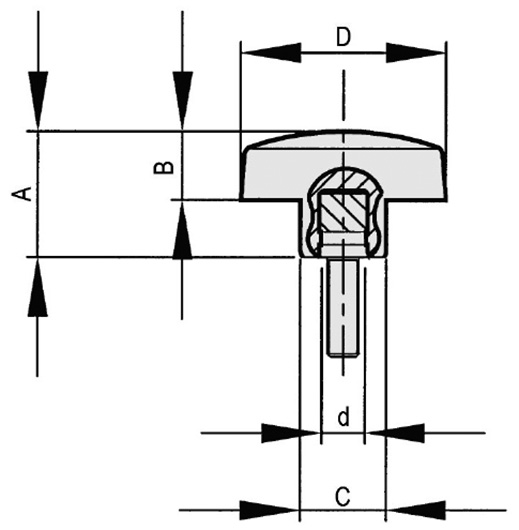

02 / With stud

Schéma 3 + Knob PC in composite plastic
REF DESIGNATION D d A B C L 3D Quote
660010 KNOB PC POLYA. D.25 STEEL STUD M4*10 25 M4 15 8 10 10
660020 KNOB PC POLYA. D.25 STEEL STUD M4*20 25 M4 15 8 10 20
660025 KNOB PC POLYA. D.25 STEEL STUD M4*25 25 M4 15 8 10 25
660115 KNOB PC POLYA. D.25 STEEL STUD M5*15 25 M5 15 8 10 15
660125 KNOB PC POLYA. D.25 STEEL STUD M5*25 25 M5 15 8 10 25
660210 KNOB PC POLYA. D.25 STEEL STUD M6*10 25 M6 15 8 10 10
660130 KNOB PC POLYA. D.25 STEEL STUD M5*30 25 M5 15 8 10 30
660215 KNOB PC POLYA. D.25 STEEL STUD M6*15 25 M6 15 8 10 15
660220 KNOB PC POLYA. D.25 STEEL STUD M6*20 25 M6 15 8 10 20
660225 KNOB PC POLYA. D.25 STEEL STUD M6*25 25 M6 15 8 10 25
660230 KNOB PC POLYA. D.25 STEEL STUD M6*30 25 M6 15 8 10 30
660240 KNOB PC POLYA. D.25 STEEL STUD M6*40 25 M6 15 8 10 40
660250 KNOB PC POLYA. D.25 STEEL STUD M6*50 25 M6 15 8 10 50
660030 KNOB PC POLYA. D.25 STEEL STUD M4*30 25 M4 15 8 10 30
660110 KNOB PC POLYA. D.25 STEEL STUD M5*10 25 M5 15 8 10 10
660120 KNOB PC POLYA. D.25 STEEL STUD M5*20 25 M5 15 8 10 20
