Knob SL

in composite plastic

 Star knobs and grips : Knob SL
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

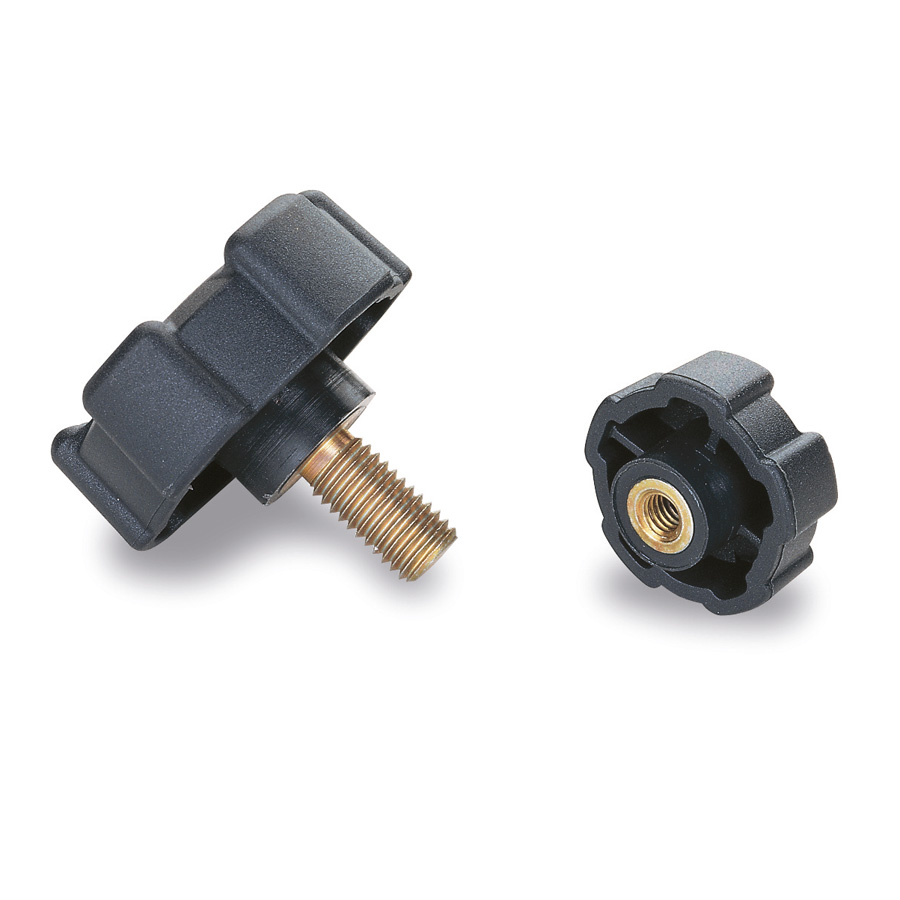

Knob in high resistance polyamide reinforced with glass fibres, anthracite grey matt, with female insert and stud in zinc plated steel.

AVAILABLE VERSIONS

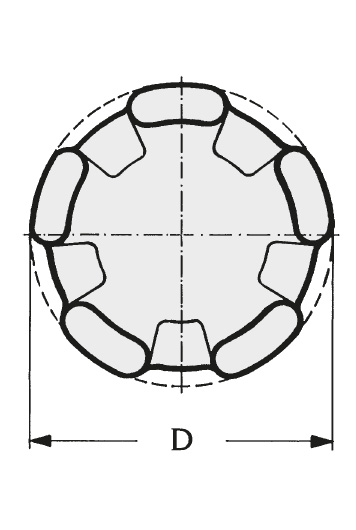

Schéma 1 + Knob SL
in composite plastic

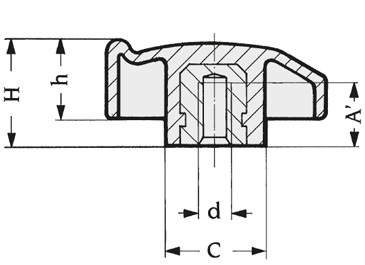

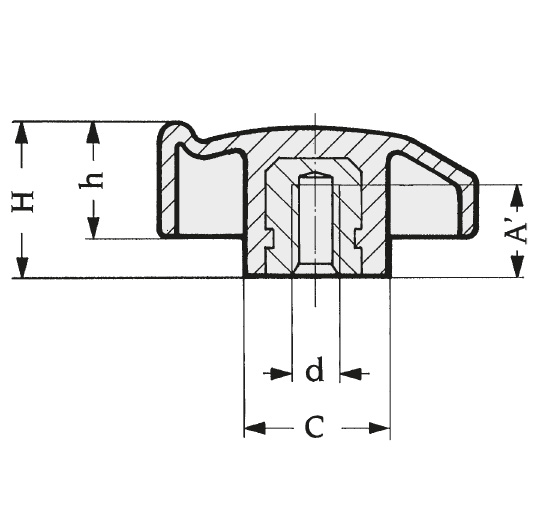

01 / Female insert

Schéma 2 + Knob SL
in composite plastic
REF DESIGNATION D d A' C H h Wight (g) 3D Quote
4011 KNOB SL POLYA. D.32 STEEL INS M6 32 M6 9 15 17 12 12
4012 KNOB SL POLYA. D.40 STEEL INS M8 40 M8 11 18 20 14 25
4013 KNOB SL POLYA. D.50 STEEL INS M10 50 M10 14 20 25 18 38

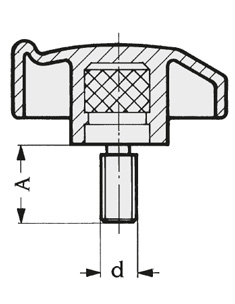

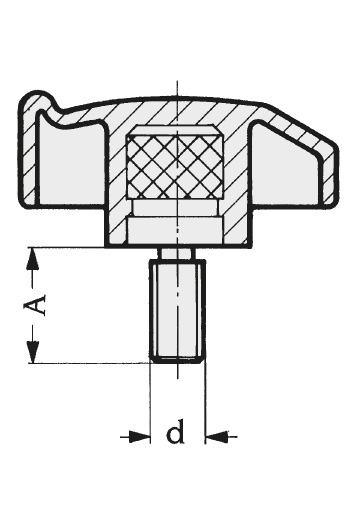

02 / With stud

Schéma 3 + Knob SL
in composite plastic
REF DESIGNATION D d A C H h Wight (g) 3D Quote
304115 KNOB SL POLYA. D.32 STEEL STUD M6*15 32 M6 15 15 17 12 17
304216 KNOB SL POLYA. D.40 STEEL STUD M8*16 40 M8 16 18 20 14 31
304320 KNOB SL POLYA. D.50 STEEL STUD M10*20 50 M10 20 20 25 18 55
304220 KNOB SL POLYA. D.40 STEEL STUD M8*20 40 M8 20 18 20 14 31
