Adjustable handles and levers : Safety adjustable handle in steel
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

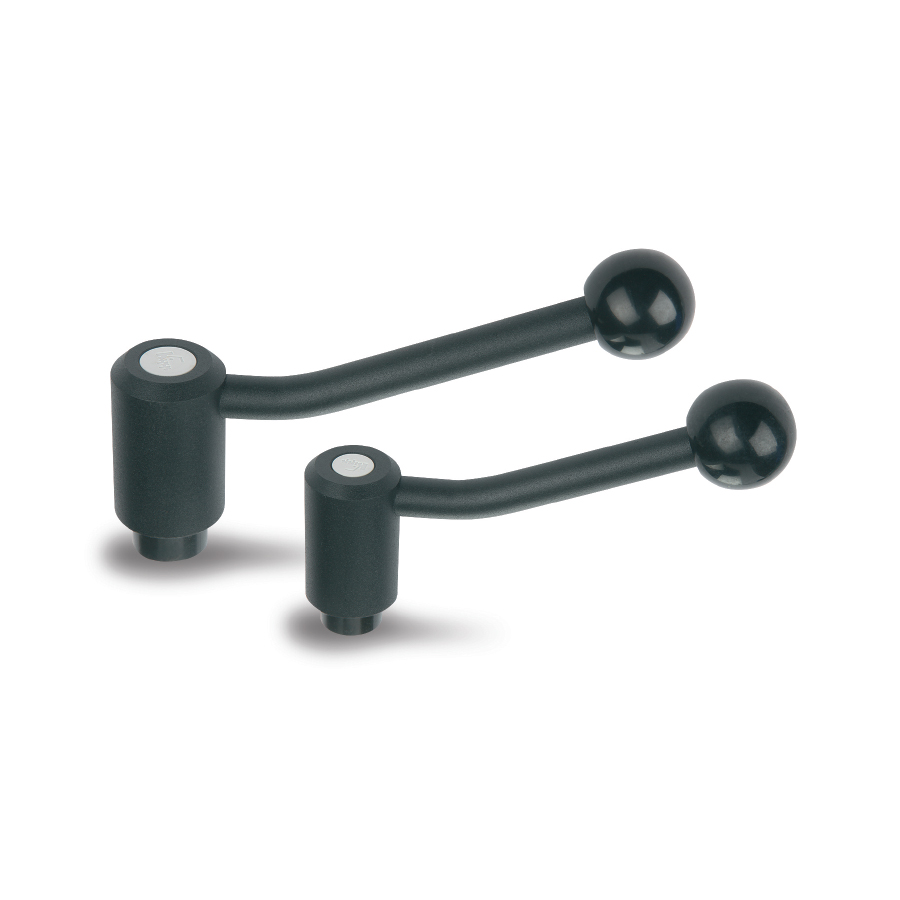

Safety handle in steel 5.8 with black fine texture. Insert and stud with black oxide finish. Black knob in duroplast.

AVAILABLE VERSIONS

01 / Inside thread

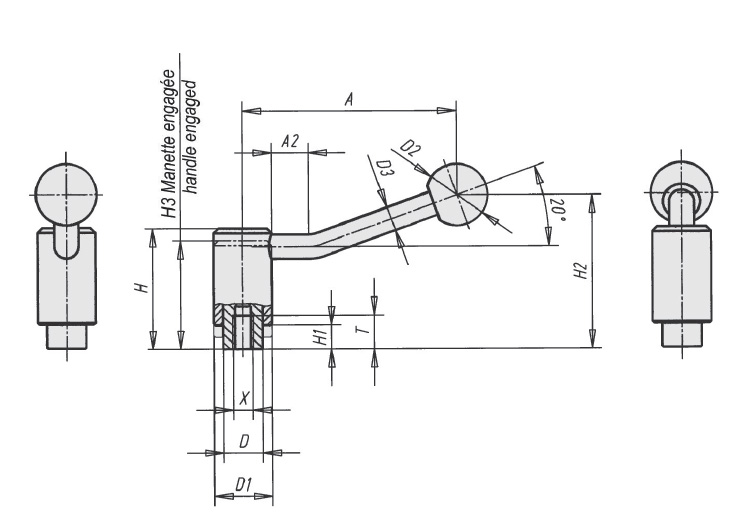

Schéma 1 + Safety adjustable handle in steel
REF DESIGNATION A X D D1 D2 D3 H4 H1 H2 Nombre de dents T Wgt. (g) 3D Quote
8769 SAFETY ADJUSTABLE HANDLE STEEL L.88 M8 20 81 M8 17 24 25 10 49 9 69 28 23 160
8770 SAFETY ADJUSTABLE HANDLE STEEL L.88 M10 20 81 M10 17 24 25 10 49 9 69 28 23 160
8771 SAFETY ADJUSTABLE HANDLE STEEL L.106 M10 20 99 M10 20 28 30 11 57 11 82 30 26 250
8772 SAFETY ADJUSTABLE HANDLE STEEL L.106 M12 20 99 M12 20 28 30 11 57 11 82 30 26 250
8773 SAFETY ADJUSTABLE HANDLE STEEL L.128 M12 20 118 M12 24 33 32 12 64 12 94 35 30 370
8774 SAFETY ADJUSTABLE HANDLE STEEL L.128 M16 20 118 M16 24 33 32 12 64 12 94 35 30 370

02 / With stud

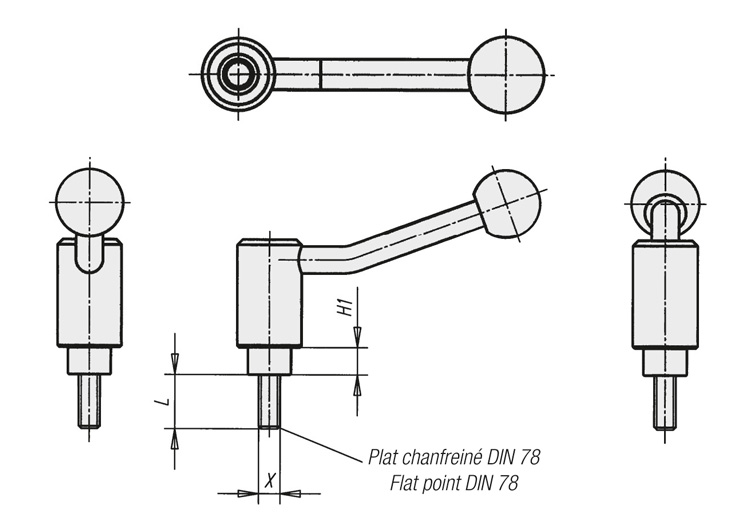

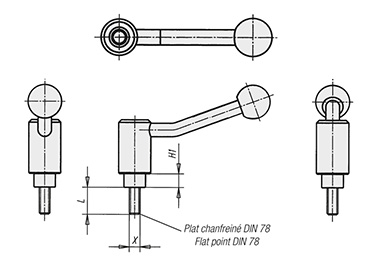

Schéma 2 + Safety adjustable handle in steel
REF DESIGNATION A X D2 D3 H1 H3 H2 3D Quote
877520 SAFETY ADJUSTABLE HANDLE STEEL L.88 M8*20 20 81 8 25 10 9 44 69
877525 SAFETY ADJUSTABLE HANDLE STEEL L.88 M8*25 20 81 8 25 10 9 44 69
877530 SAFETY ADJUSTABLE HANDLE STEEL L.88 M8*30 20 81 8 25 10 9 44 69
877540 SAFETY ADJUSTABLE HANDLE STEEL L.88 M8*40 20 81 8 25 10 9 44 69
877550 SAFETY ADJUSTABLE HANDLE STEEL L.88 M8*50 20 81 8 25 10 9 44 69
877560 SAFETY ADJUSTABLE HANDLE STEEL L.88 M8*60 20 81 8 25 10 9 44 69
877620 SAFETY ADJUSTABLE HANDLE STEEL L.88 M10*20 20 81 10 25 10 9 44 69
877625 SAFETY ADJUSTABLE HANDLE STEEL L.88 M10*25 20 81 10 25 10 9 44 69
877630 SAFETY ADJUSTABLE HANDLE STEEL L.88 M10*30 20 81 10 25 10 9 44 69
877640 SAFETY ADJUSTABLE HANDLE STEEL L.88 M10*40 20 81 10 25 10 9 44 69
877650 SAFETY ADJUSTABLE HANDLE STEEL L.88 M10*50 20 81 10 25 10 9 44 69
877660 SAFETY ADJUSTABLE HANDLE STEEL L.88 M10*60 20 81 10 25 10 9 44 69
877720 SAFETY ADJUSTABLE HANDLE STEEL L.88 M12*20 20 81 12 25 10 9 44 69
877725 SAFETY ADJUSTABLE HANDLE STEEL L.88 M12*25 20 81 12 25 10 9 44 69
877730 SAFETY ADJUSTABLE HANDLE STEEL L.88 M12*30 20 81 12 25 10 9 44 69
877740 SAFETY ADJUSTABLE HANDLE STEEL L.88 M12*40 20 81 12 25 10 9 44 69
877750 SAFETY ADJUSTABLE HANDLE STEEL L.88 M12*50 20 81 12 25 10 9 44 69
877760 SAFETY ADJUSTABLE HANDLE STEEL L.88 M12*60 20 99 12 30 11 11 51 82
877820 SAFETY ADJUSTABLE HANDLE STEEL L.106 M12*20 20 99 12 30 11 11 51 82
877825 SAFETY ADJUSTABLE HANDLE STEEL L.106 M12*25 20 99 12 30 11 11 51 82
877830 SAFETY ADJUSTABLE HANDLE STEEL L.106 M12*30 20 99 12 30 11 11 51 82
877840 SAFETY ADJUSTABLE HANDLE STEEL L.106 M12*40 20 99 12 30 11 11 51 82
877850 SAFETY ADJUSTABLE HANDLE STEEL L.106 M12*50 20 99 12 30 11 11 51 82
877860 SAFETY ADJUSTABLE HANDLE STEEL L.106 M12*60 20 118 12 32 12 12 57 94
877925 SAFETY ADJUSTABLE HANDLE STEEL L.128 M12*25 20 118 12 32 12 12 57 94
877930 SAFETY ADJUSTABLE HANDLE STEEL L.128 M12*30 20 118 12 32 12 12 57 94
877940 SAFETY ADJUSTABLE HANDLE STEEL L.128 M12*40 20 118 12 32 12 12 57 94
877950 SAFETY ADJUSTABLE HANDLE STEEL L.128 M12*50 20 118 12 32 12 12 57 94
877960 SAFETY ADJUSTABLE HANDLE STEEL L.128 M12*60 20 118 12 32 12 12 57 94
878025 SAFETY ADJUSTABLE HANDLE STEEL L.128 M16*25 20 118 16 32 12 12 57 94
878030 SAFETY ADJUSTABLE HANDLE STEEL L.128 M16*30 20 118 16 32 12 12 57 94
878040 SAFETY ADJUSTABLE HANDLE STEEL L.128 M16*40 20 118 16 32 12 12 57 94
878050 SAFETY ADJUSTABLE HANDLE STEEL L.128 M16*50 20 118 16 32 12 12 57 94
878060 SAFETY ADJUSTABLE HANDLE STEEL L.128 M16*60 20 118 16 32 12 12 57 94
