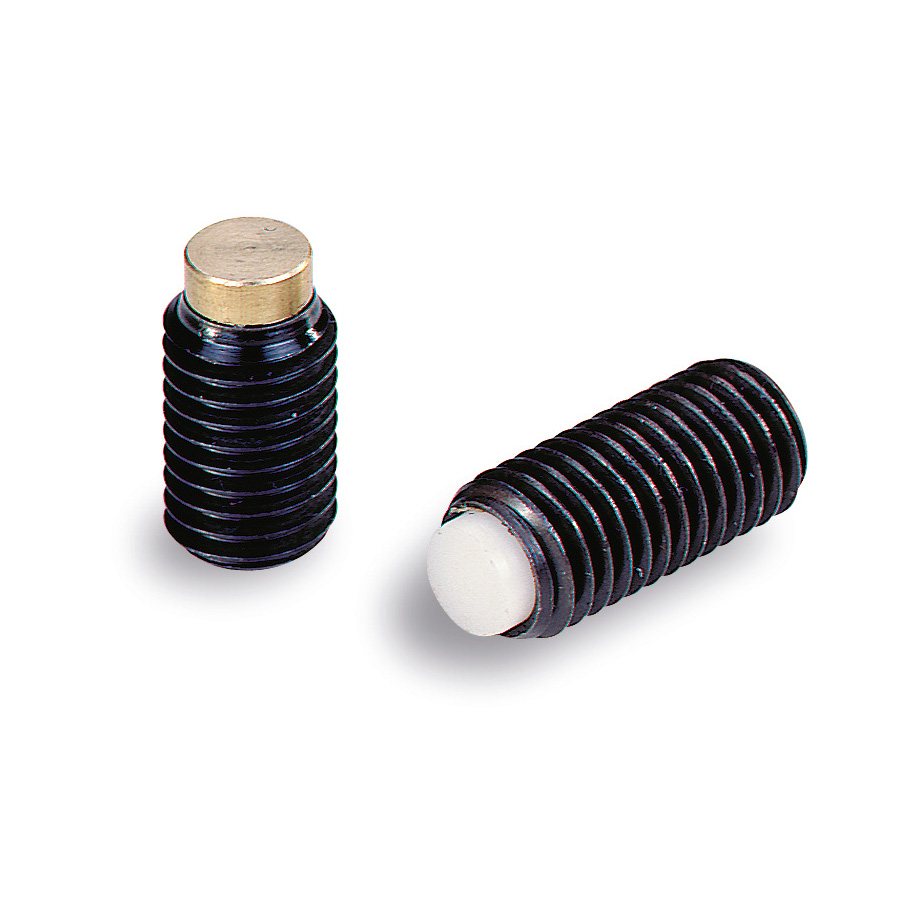

Pressure screw

brass or plastic tip

Pressure screws : Pressure screw brass or plastic tip
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Screw quality class 10.9 in black oxide finish, tip in brass or polyacetal plastic (POM). Other dimensions on request.

AVAILABLE VERSIONS

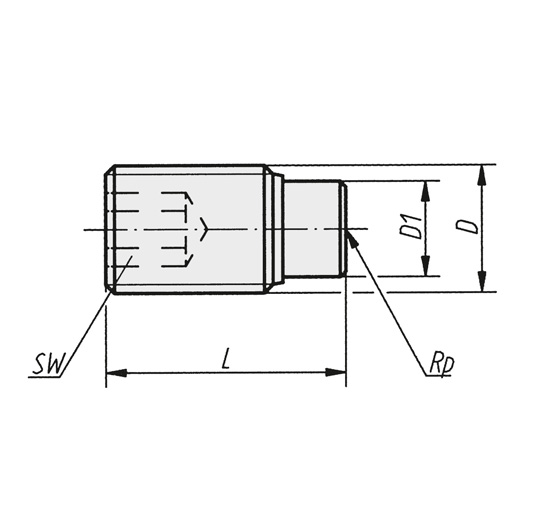

Schéma 1 + Pressure screw brass or plastic tip

01 / With brass tip

REF DESIGNATION D D1 L SW 3D Quote
725065 PRESSURE SCREW STEEL M4*6,5 INS BRASS M4 2,5 6,5 2
7250105 PRESSURE SCREW STEEL M4*10,5 INS BRASS M4 2,5 10,5 2
7250165 PRESSURE SCREW STEEL M4*16,5 INS BRASS M4 2,5 16,5 2
725185 PRESSURE SCREW STEEL M5*8,5 INS BRASS M5 3 8,5 2,5
7251125 PRESSURE SCREW STEEL M5*12,5 INS BRASS M5 3 12,5 2,5
7251205 PRESSURE SCREW STEEL M5*20,5 INS BRASS M5 3 20,5 2,5
7252115 PRESSURE SCREW STEEL M6*11,5 INS BRASS M6 4 11,5 3
7252175 PRESSURE SCREW STEEL M6*17,5 INS BRASS M6 4 17,5 3
7252265 PRESSURE SCREW STEEL M6*26,5 INS BRASS M6 4 26,5 3
725312 PRESSURE SCREW STEEL M8*12 INS BRASS M8 5,5 12 4
725322 PRESSURE SCREW STEEL M8*22 INS BRASS M8 5,5 22 4
725332 PRESSURE SCREW STEEL M8*32 INS BRASS M8 5,5 32 4
725414 PRESSURE SCREW STEEL M10*14 INS BRASS M10 7 14 5
725418 PRESSURE SCREW STEEL M10*18 INS BRASS M10 7 18 5
725427 PRESSURE SCREW STEEL M10*27 INS BRASS M10 7 27 5
725437 PRESSURE SCREW STEEL M10*37 INS BRASS M10 7 37 5
7255185 PRESSURE SCREW STEEL M12*18,5 INS BRASS M12 8,5 18,5 6
7255225 PRESSURE SCREW STEEL M12*22,5 INS BRASS M12 8,5 22,5 6
7255325 PRESSURE SCREW STEEL M12*32,5 INS BRASS M12 8,5 32,5 6
7255425 PRESSURE SCREW STEEL M12*42,5 INS BRASS M12 8,5 42,5 6

02 / With plastic tip

REF DESIGNATION D D1 L SW 3D Quote
72567 PRESSURE SCREW STEEL M4*7 INS NYLON HC M4 2 7 2
72569 PRESSURE SCREW STEEL M4*9 INS NYLON HC M4 2 9 2
725611 PRESSURE SCREW STEEL M4*11 INS NYLON M4 2 11 2
725613 PRESSURE SCREW STEEL M4*13 INS NYLON M4 2 13 2
725617 PRESSURE SCREW STEEL M4*17 INS NYLON M4 2 17 2
72579 PRESSURE SCREW STEEL M5*9 INS NYLON HC M5 3 9 2,5
725711 PRESSURE SCREW STEEL M5*11 INS NYLON HC M5 3 11 2,5
725713 PRESSURE SCREW STEEL M5*13 INS NYLON HC M5 3 13 2,5
725717 PRESSURE SCREW STEEL M5*17 INS NYLON HC M5 3 17 2,5
725721 PRESSURE SCREW STEEL M5*21 INS NYLON HC M5 3 21 2,5
7258113 PRESSURE SCREW STEEL M6*11,3 INS NYLON HC M6 3,5 11,3 3
7258133 PRESSURE SCREW STEEL M6*13,3 INS NYLON HC M6 3,5 13,3 3
7258173 PRESSURE SCREW STEEL M6*17,3 INS NYLON HC M6 3,5 17,3 3
7258213 PRESSURE SCREW STEEL M6*21,3 INS NYLON HC M6 3,5 21,3 3
7258263 PRESSURE SCREW STEEL M6*26,3 INS NYLON HC M6 3,5 26,3 3
7259136 PRESSURE SCREW STEEL M8*13,6 INS NYLON HC M8 5 13,6 4
7259176 PRESSURE SCREW STEEL M8*17,6 INS NYLON HC M8 5 17,6 4
7259216 PRESSURE SCREW STEEL M8*21,6 INS NYLON HC M8 5 21,6 4
7259266 PRESSURE SCREW STEEL M8*26,6 INS NYLON HC M8 5 26,6 4
7259336 PRESSURE SCREW STEEL M8*33,6 INS NYLON HC M8 5 33,6 4
7260179 PRESSURE SCREW STEEL M10*17,9 INS NYLON HC M10 6,5 17,9 5
7260219 PRESSURE SCREW STEEL M10*21,9 INS NYLON HC M10 6,5 21,9 5
7260269 PRESSURE SCREW STEEL M10*26,9 INS NYLON HC M10 6,5 26,9 5
7260339 PRESSURE SCREW STEEL M10*33,9 INS NYLON HC M10 6,5 33,9 5
7260419 PRESSURE SCREW STEEL M10*41,9 INS NYLON HC M10 6,5 41,9 5
7261221 PRESSURE SCREW STEEL M12*22,1 INS NYLON HC M12 8 22,1 6
7261271 PRESSURE SCREW STEEL M12*27,1 INS NYLON HC M12 8 27,1 6
7261341 PRESSURE SCREW STEEL M12*34,1 INS NYLON HC M12 8 34,1 6
7261421 PRESSURE SCREW STEEL M12*42,1 INS NYLON HC M12 8 42,1 6
7261521 PRESSURE SCREW STEEL M12*52,1 INS NYLON HC M12 8 52,1 6
