Electronic Safety Handles

Available variations

Safety handle

FG12

Handle

FG11

Electronic Safety Handles : Handle FG11
  • Reach
  • Rohs
3D visualisation

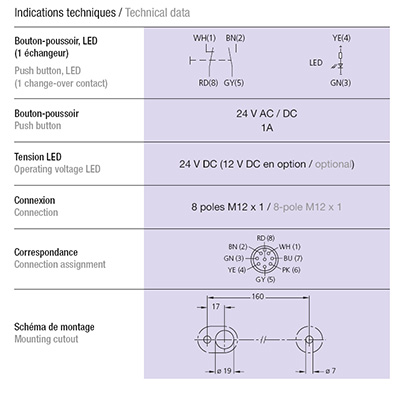

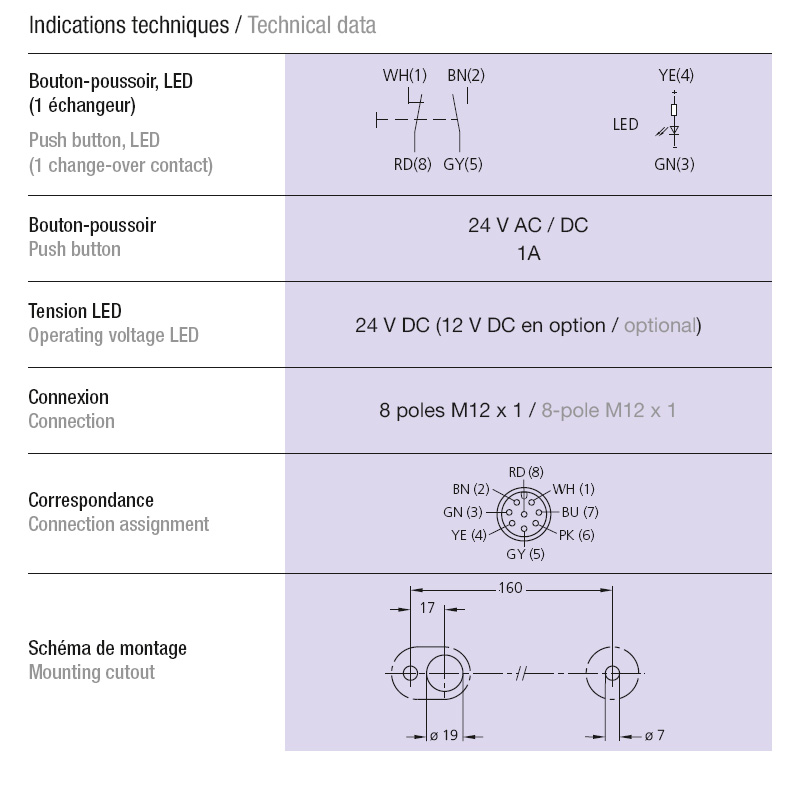

Technical specifications
Add to favourites

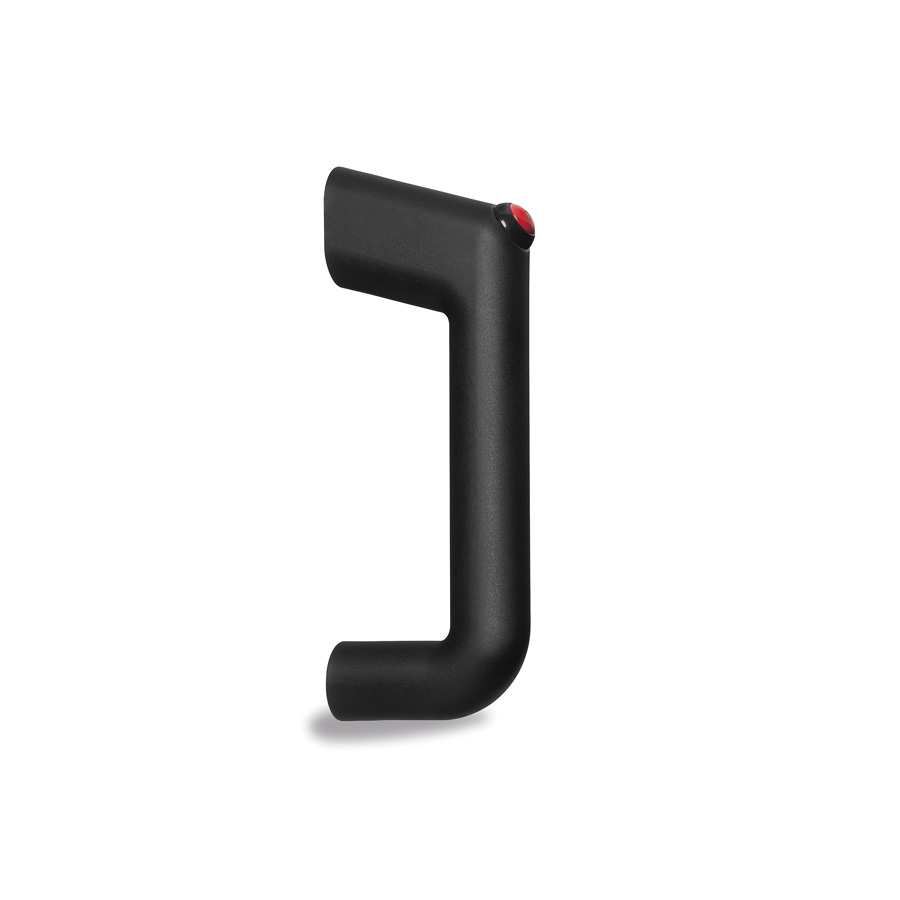

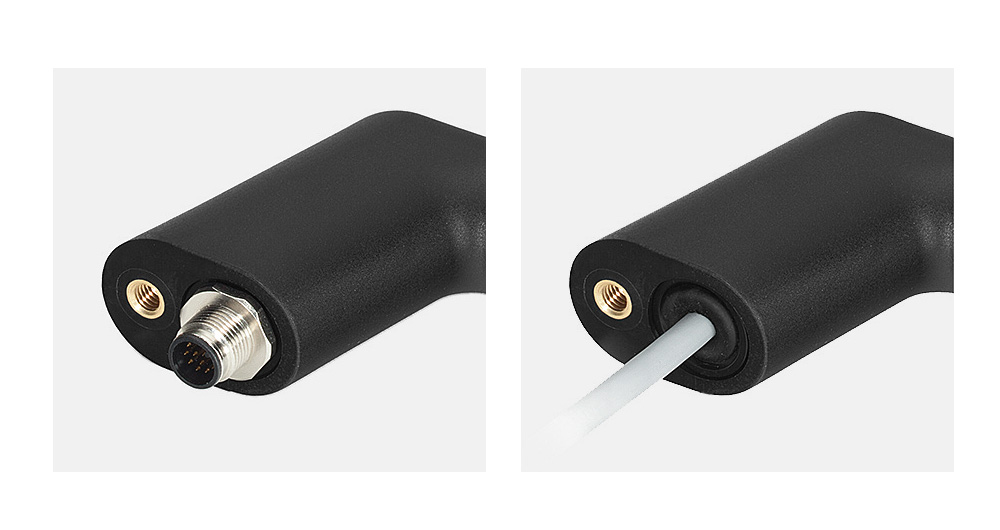

Handle manufactured in high resistance PA 6, black with fine structure. Handle supplied with raised push button with red or green LED. Connection «A» with 8-pin connector on the mounting surface of the handle, see picture. Protection class IP65 with screwed coupling. Accessory upon request : coupling with 10 m readymade cable.

AVAILABLE VERSIONS

01 / With raised push button

REF DESIGNATION A CODE COULEUR COULEUR EN COULEUR FR 3D Quote
10441 HANDLE FG11 POLYA. 160MM 160 V Green Verte
10442 HANDLE FG11 POLYA. 160MM 160 R Red Rouge
