Handle U3

in aluminium

Recessed handles : Handle U3
in aluminium
  • Reach
  • Rohs

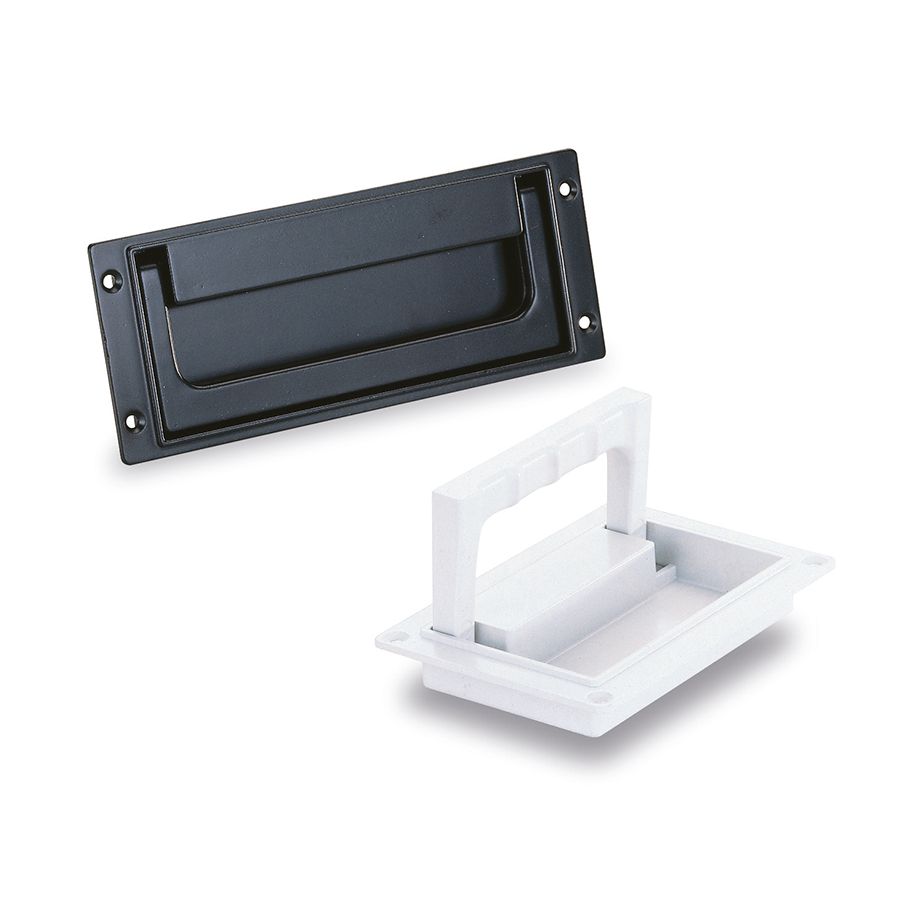

Collapsible tray handle in pressure molded aluminium GD-AlSi 9 Cu 3, powder coated, half-matt finish. Handle can be installed in front or behind the housing wall with the identical housing cutout. Handle available in 2 versions, first with snap locks both in working and resting positions, second with pull back spring from the working to the resting position. Stress resistance minimum 500 N.

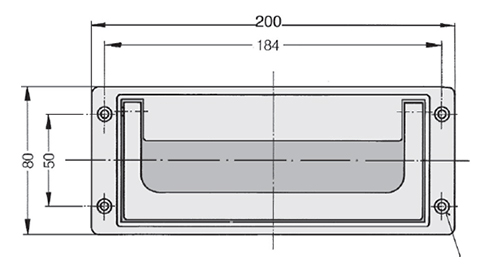

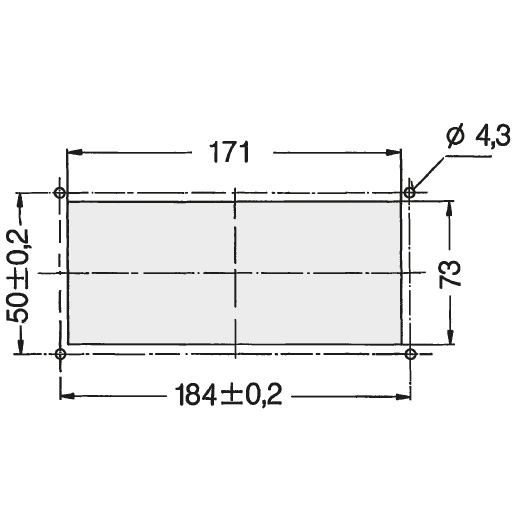

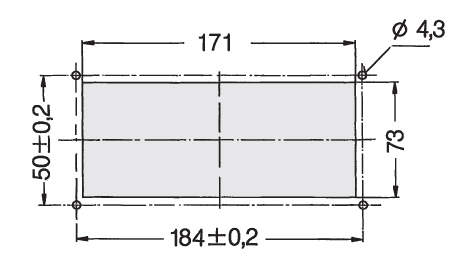

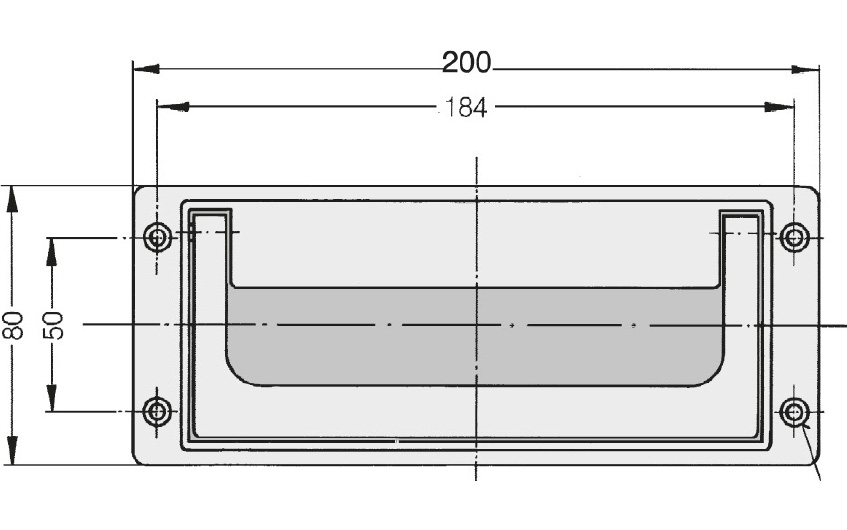

REF DESIGNATION L FIXATION OUVERTURE Wight (g) 3D Quote
10117 HANDLE U3 ALU 171X73 M4 BLACK 200 M4 171 x 73 286
10117G HANDLE U3 ALU 171X73 M4 GR 200 M4 171 x 73 286
10235 HANDLE U3 ALU 171X73 M4 BLACK 200 M4 171 x 73 286
10235G HANDLE U3 ALU 171X73 M4 GR 200 M4 171 x 73 286
