Handle U1

in aluminium

Recessed handles : Handle U1
in aluminium
  • Reach
  • Rohs

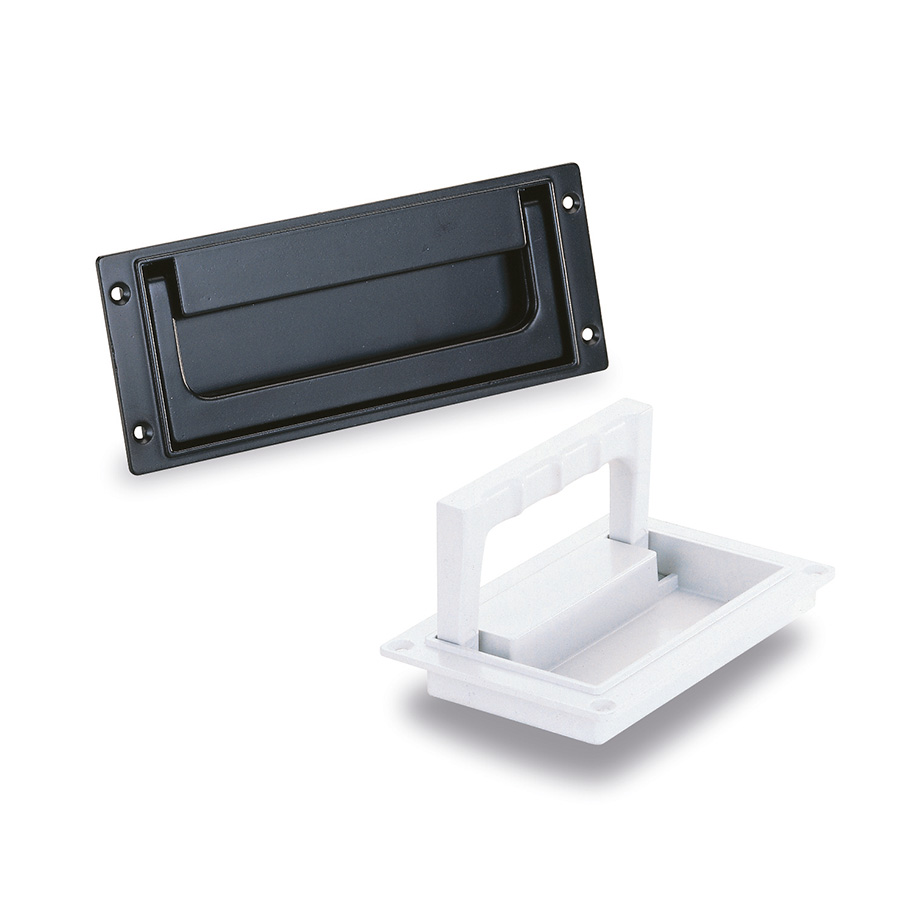

Collapsible tray handle in pressure molded aluminium GD-AlSi 9 Cu 3, powder coated, half-matt finish. Handle can be installed in front or behind the housing wall with the identical housing cutout. Handle available in 2 versions, first with snap locks both in working and resting positions, second with pull back spring from the working to the resting position. Stress resistance minimum 500 N.

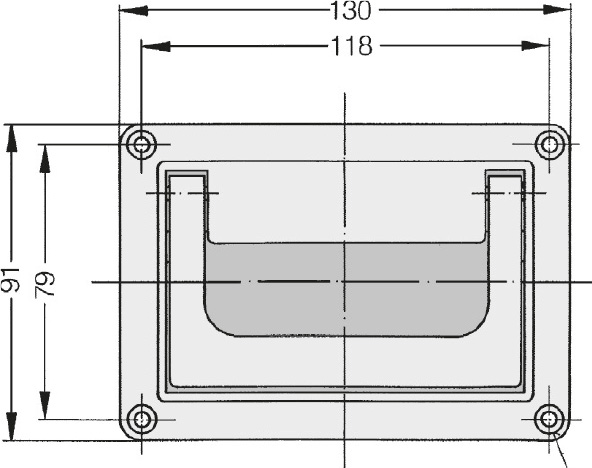

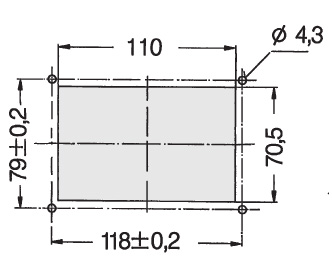

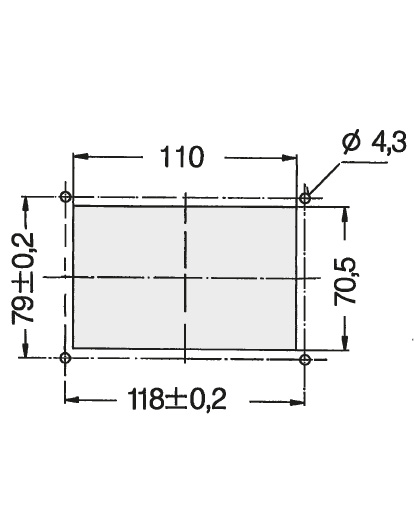

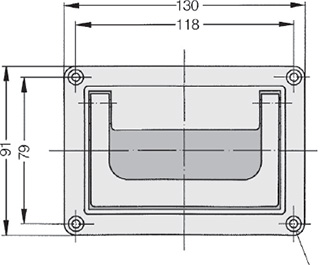

REF DESIGNATION L ENTRAXE FIXATION OUVERTURE Wight (g) 3D Quote
10118 HANDLE U1 ALU 110X70.5 M4 BLACK 130 118 M4 110 x 70,5 197
10118G HANDLE U1 ALU 110X70.5 M4 GR 130 118 M4 110 x 70,5 197
10237 HANDLE U1 110X70.5 M5 BLACK 130 118 M4 110 x 70,5 197
10237G HANDLE U1 110X70.5 M5 GR 130 118 M4 110 x 70,5 197
