Handle U9

in alumium

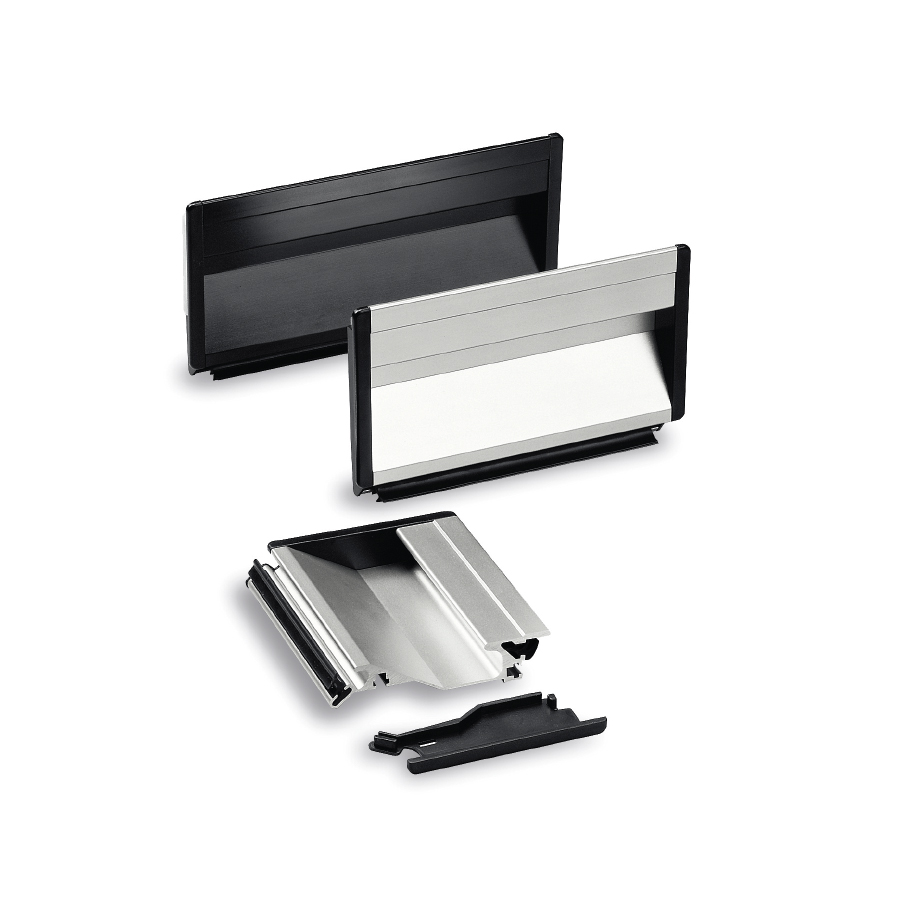

Recessed handles : Handle U9
in alumium
  • Reach
  • Rohs

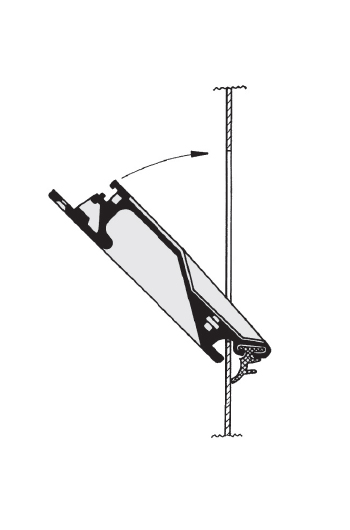

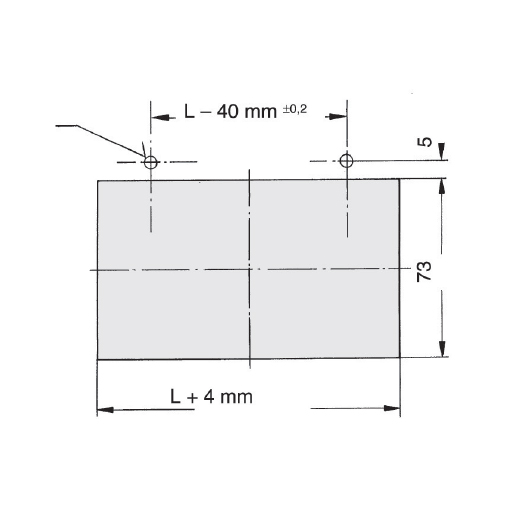

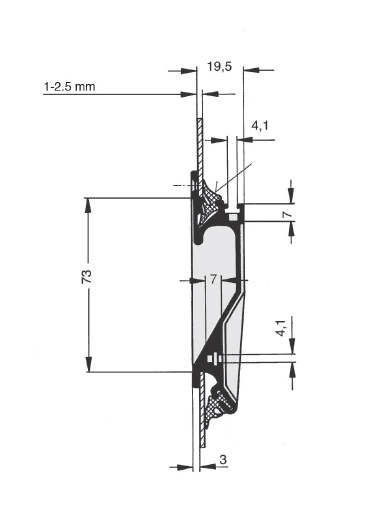

Tray handle made of aluminium profile, anodized to a satin finish. Caps made of black polyamide PA 6. Handle available in 2 versions, first with 2 rubber inserts, second with 1 rubber insert and galvanized countersunk screws. Does not require screws for metal thickness of 1-2.5 mm. Stress resistance minimum  500 N.


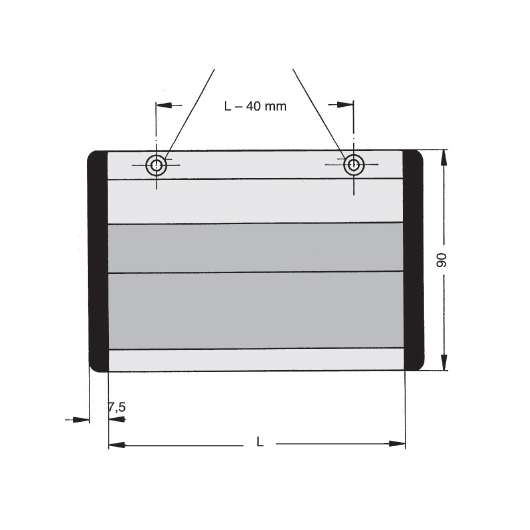

01 / With 2 rubber inserts

REF DESIGNATION L OUVERTURE Wight (g) 3D Quote
10114 HANDLE U9 ALU 104X73 M4 100 104 x 73 107
10115 HANDLE U9 ALU 122X73 M4 118 122 x 73 126
10116 HANDLE U9 ALU 171X73 M4 167 171 x 73 178
10114N HANDLE U9 ALU 104X73 M4 BLACK 100 104 x 73 107
10115N HANDLE U9 ALU 122X73 M4 BLACK 118 122 x 73 126
10116N HANDLE U9 ALU 171X73 M4 BLACK 167 171 x 73 178

02 / with insert and screws

REF DESIGNATION L OUVERTURE Wight (g) 3D Quote
10114 HANDLE U9 ALU 104X73 M4 100 104 x 73 107
10115 HANDLE U9 ALU 122X73 M4 118 122 x 73 126
10116 HANDLE U9 ALU 171X73 M4 167 171 x 73 178
10114N HANDLE U9 ALU 104X73 M4 BLACK 100 104 x 73 107
10115N HANDLE U9 ALU 122X73 M4 BLACK 118 122 x 73 126
10116N HANDLE U9 ALU 171X73 M4 BLACK 167 171 x 73 178
