Adjusting Knob

in composite plastic

Knurled  knobs and handles : Adjusting Knob
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

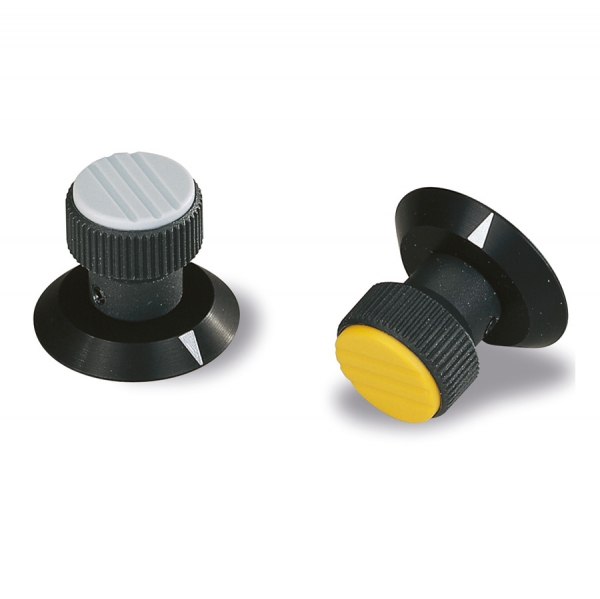

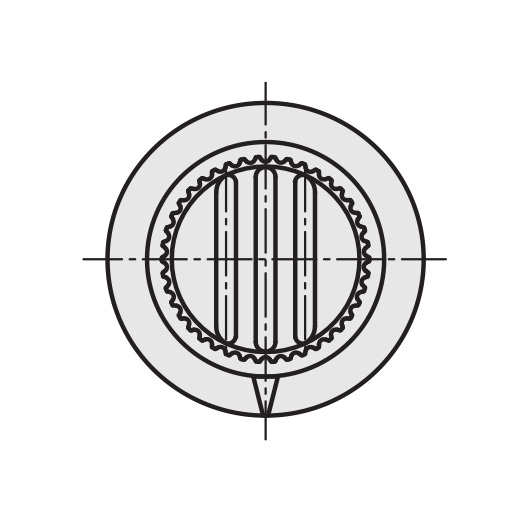

Knob in high resistance polyamide reinforced with glass fibres, anthracite grey, with disk in black anodized aluminium. Arrow mark engraved after anodizing. Caps available in light grey RAL 7035, yellow RAL 1021 and red RAL 3020.

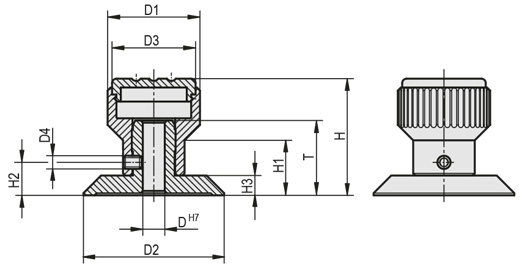

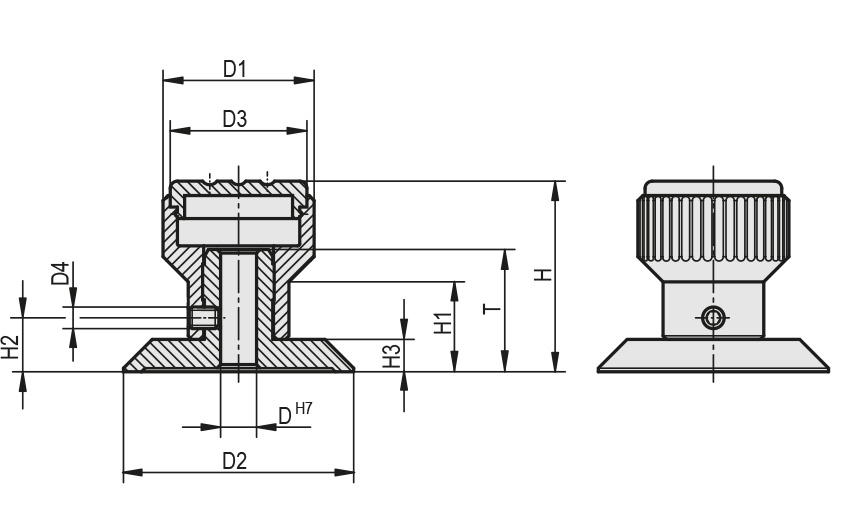

REF DESIGNATION D1 DH7 D2 D3 D4 H H1 H2 H3 T Wight (g) 3D Quote
8350 ADJUSTING KNOB POLYA. D.21 HOLE 5 21 5H7 32 19 M3 26,5 12,5 7,5 4,5 17 10
8351 ADJUSTING KNOB POLYA. D.26 HOLE 6 26 6H7 40 23 M4 31,5 15 9,5 5,5 20,5 22
8352 ADJUSTING KNOB POLYA. D.34 HOLE 8 34 8H7 52 31 M4 43 20 12 7 22 26
