Graduated Knob

in composite plastic

Knurled  knobs and handles : Graduated Knob
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

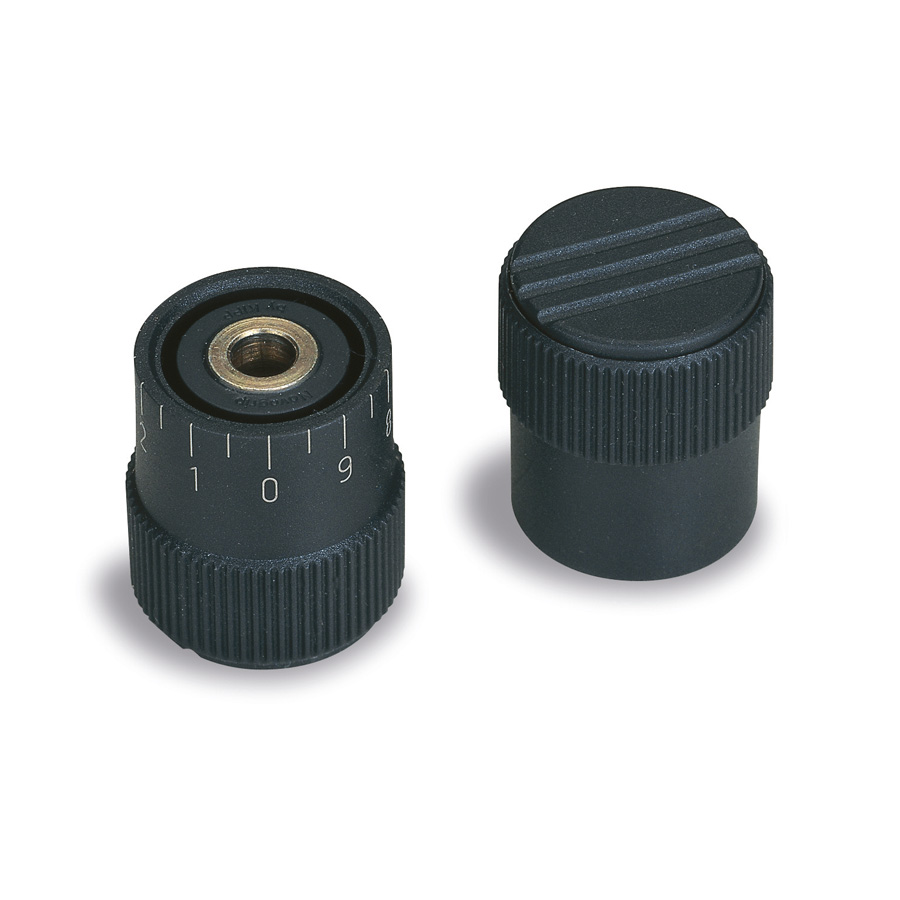

Knob in high resistance polyamide reinforced with glass fibres, anthracite grey, with insert in zinc plated steel. Available with 20 scale marks and with or without 10 digits. Grub screw for fastening is located between number 5 and 6.

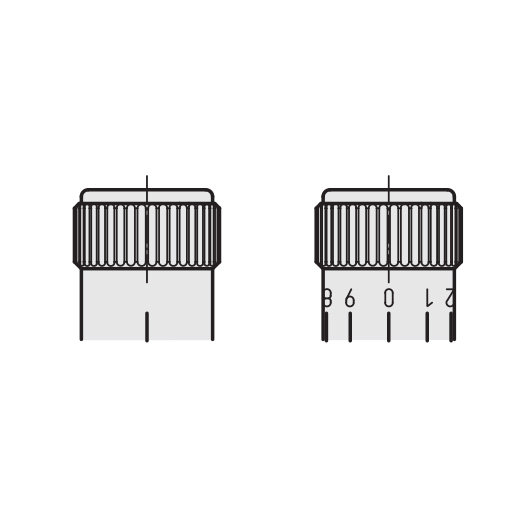

AVAILABLE VERSIONS



01 / Without digit

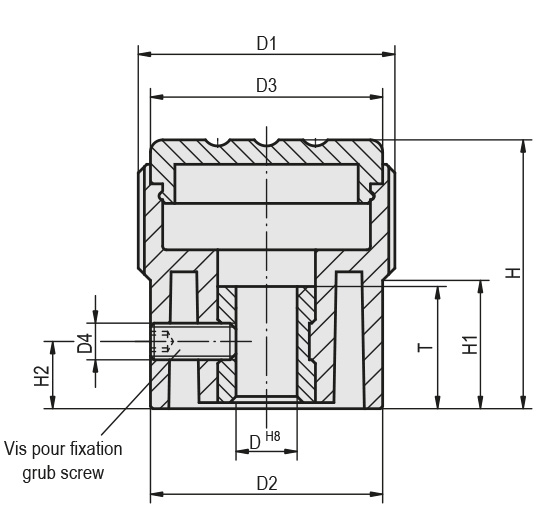

REF DESIGNATION Dh8 D1 D2 D3 D4 H2 H1 T Wight (g) 3D Quote
8360 GRADUATED KNOB POLYA. D.21 HOLE 5 5H8 21 19 19 M3 22 10,5 10 12
8362 GRADUATED KNOB POLYA. D.26 HOLE 6 6H8 26 23 23 M3 26 12 10 25
8364 GRADUATED KNOB POLYA. D.34 HOLE 8 8H8 34 31 31 M4 36 17,5 14 34

02 / with digits

REF DESIGNATION Dh8 D1 D2 D3 D4 H2 H1 T Wight (g) 3D Quote
8361 GRADUATED KNOB POLYA. D.21 WITH DIGITS HOLE 5 5H8 21 19 19 M3 22 10,5 10 12
8363 GRADUATED KNOB POLYA. D.26 WITH DIGITS HOLE 6 6H8 26 23 23 M3 26 12 10 25
8365 GRADUATED KNOB POLYA. D.34 WITH DIGITS HOLE 8 8H8 34 31 31 M4 36 17,5 14 34
