Knob  SRX

in  full stainless steel

Knob  SR

in composite plastic

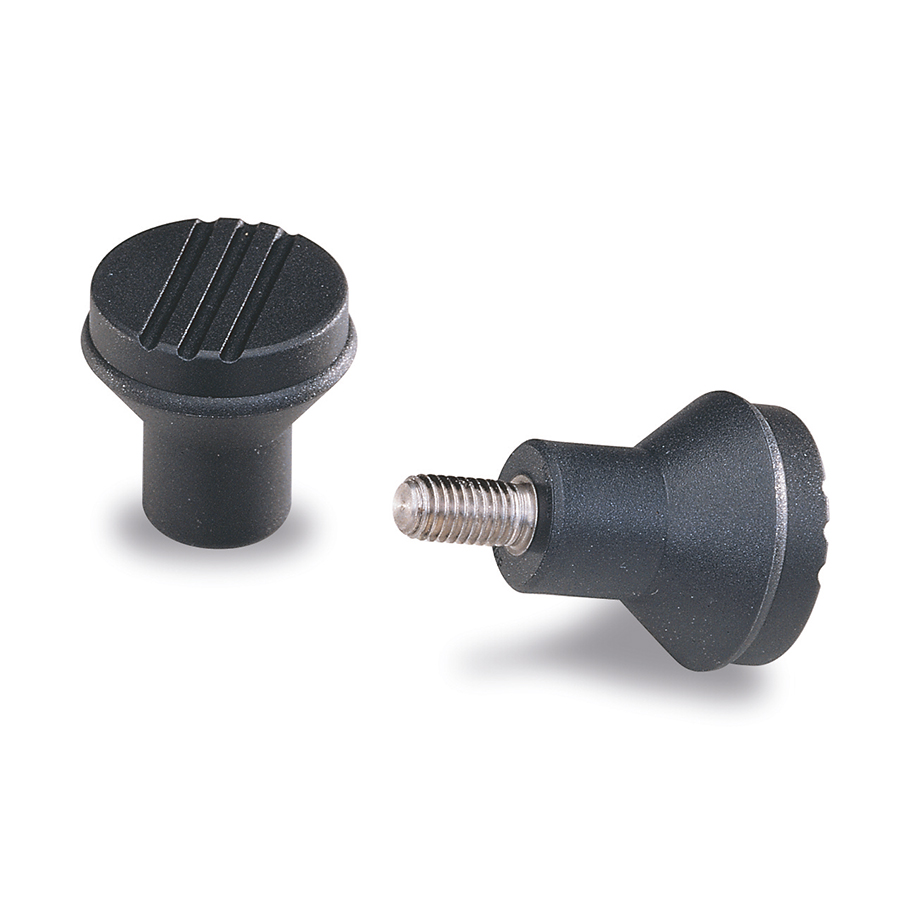

Fixed knobs and handles : Knob  SR in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites
Knob made of glass fibre reinforced polyamide, anthracite grey, with insert either in zinc plated steel or stainless steel 1,4305 AISI 303. Caps available in light grey RAL 7035, yellow RAL 1021 and red RAL 3020.

AVAILABLE VERSIONS

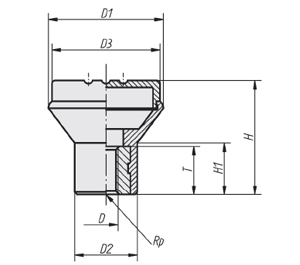

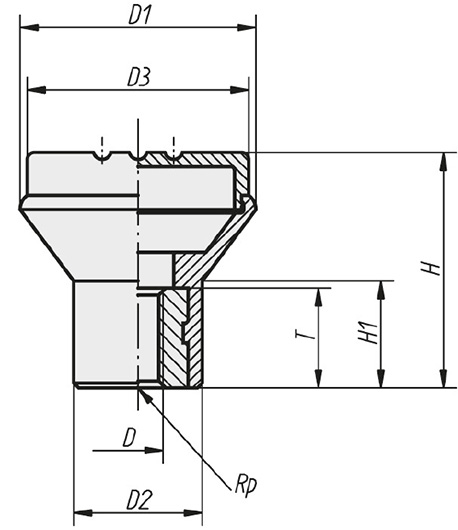

Schéma 1 + Knob  SR in composite plastic

01 / Female insert

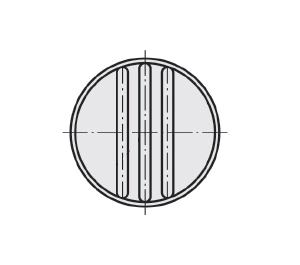

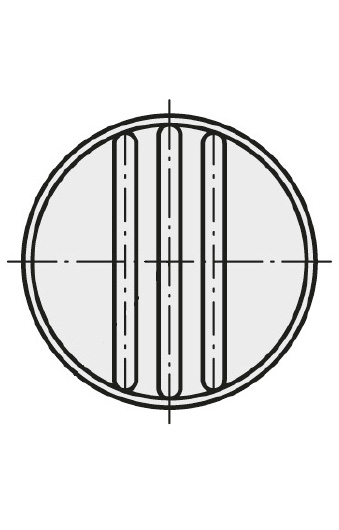

Schéma 2 + Knob  SR in composite plastic
REF DESIGNATION D1 D D2 D3 H H1 Wgt. (g) 3D Quote
8181 KNOB SR POLYA. D.21 STEEL INS M4 21 M4 12 19 21 10 9
8182 KNOB SR POLYA. D.21 STEEL INS M5 21 M5 12 19 21 10 9
8183 KNOB SR POLYA. D.25 STEEL INS M6 25 M6 14 23 25 12 12
8184 KNOB SR POLYA. D.33 STEEL INS M8 33 M8 18 31 33 15 22
8181i KNOB SR POLYA. D.21 STAINL. INS M4 21 M4 12 19 21 10 10
8182i KNOB SR POLYA. D.21 STAINL. INS M5 21 M5 12 19 21 10 11
8183i KNOB SR POLYA. D.25 STAINL. INS M6 25 M6 14 23 25 12 14
8184i KNOB SR POLYA. D.33 STAINL. INS M8 33 M8 18 31 33 15 24

02 / With stud

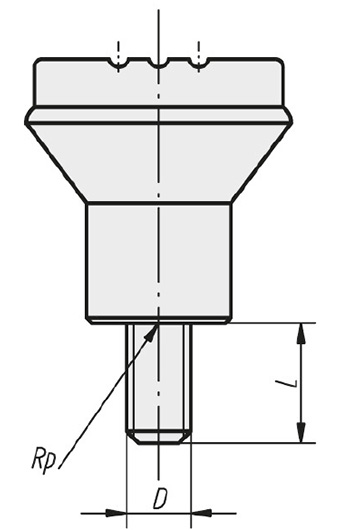

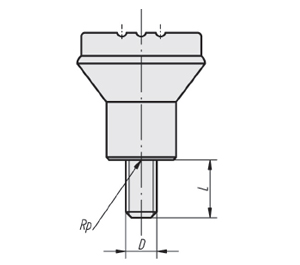

Schéma 3 + Knob  SR in composite plastic
REF DESIGNATION D1 D D2 D3 H H1 L Wgt. (g) 3D Quote
819110 KNOB SR POLYA. D.21 STEEL STUD M4*10 21 M4 12 19 21 10 10 10
819210 KNOB SR POLYA. D.21 STEEL STUD M5*10 21 M5 12 19 21 10 10 11
819315 KNOB SR POLYA. D.25 STEEL STUD M6*15 25 M6 14 23 25 12 15 14
819415 KNOB SR POLYA. D.33 STEEL STUD M8*15 33 M8 18 31 33 15 15 31
819110i KNOB SR POLYA. D.21 STAINL. STUD M4*10 21 M4 12 19 21 10 10 12
819210i KNOB SR POLYA. D.21 STAINL. STUD M5*10 21 M5 12 19 21 10 10 13
819315i KNOB SR POLYA. D.25 STAINL. STUD M6*15 25 M6 14 23 25 12 15 18
819415i KNOB SR POLYA. D.33 STAINL. STUD M8*15 33 M8 18 31 33 15 15 33
