Knurled nut

low version DIN 467 in steel or stainless steel

Knurled  knobs and handles : Knurled nut
low version DIN 467 in steel or stainless steel
  • Reach
  • Rohs

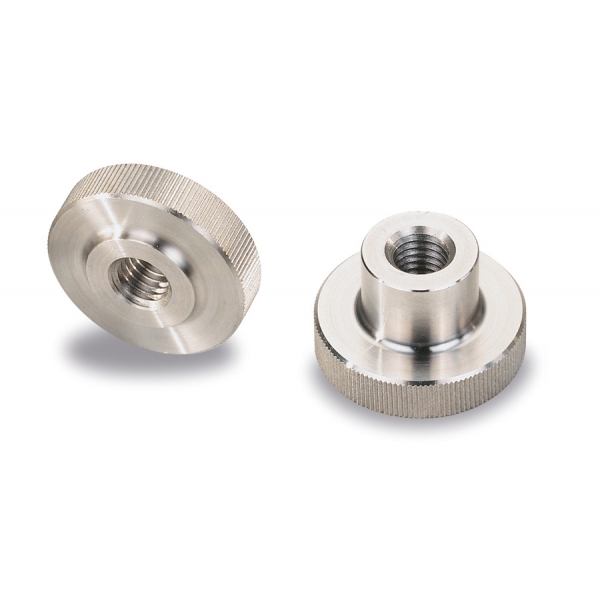

Knurled nut in free cutting steel 1.0718 with black oxide finish, or in stainless steel AISI 303 with natural finish.

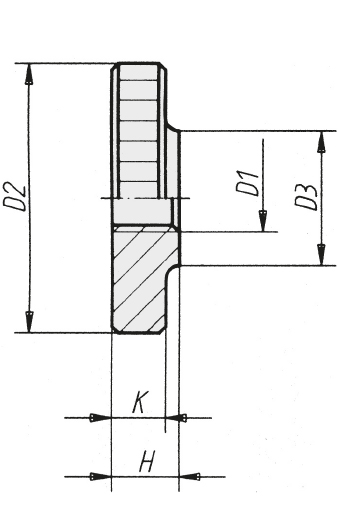

Schéma 1 + Knurled nut
low version DIN 467 in steel or stainless steel
REF DESIGNATION D1 D2 D3 H K Wight (g) 3D Quote
8672 NUT KNURLED LOW STEEL D.16 M4 4 16 8 4 3,5 6
8673 NUT KNURLED LOW STEEL D.20 M5 5 20 10 5 4 10
8674 NUT KNURLED LOW STEEL D.24 M6 6 24 12 6 5 18
8675 NUT KNURLED LOW STEEL D.30 M8 8 30 16 8 6 33
8676 NUT KNURLED LOW STEEL D.36 M10 10 36 20 10 8 58
8677 NUT KNURLED LOW STEEL D.36 M12 12 40 22 12 10 100
8672i NUT KNURLED LOW STAINL. D.16 M4 M4 8 4 1 3,5 6
8673i NUT KNURLED LOW STAINL. D.20 M5 M5 10 5 2 4 10
8674i NUT KNURLED LOW STAINL. D.24 M6 M6 12 6 3 5 18
8675i NUT KNURLED LOW STAINL. D.30 M6 M8 16 8 4 6 33
8676i NUT KNURLED LOW STAINL. D.36 M10 M10 20 10 5 8 58
8677i NUT KNURLED LOW STAINL. D.36 M12 M12 20 10 6 8 58
