Grip knobs and handles

Knurled thumb Screw

in steel or stainless steel

3D visualisation

Technical specifications

Add to favourites

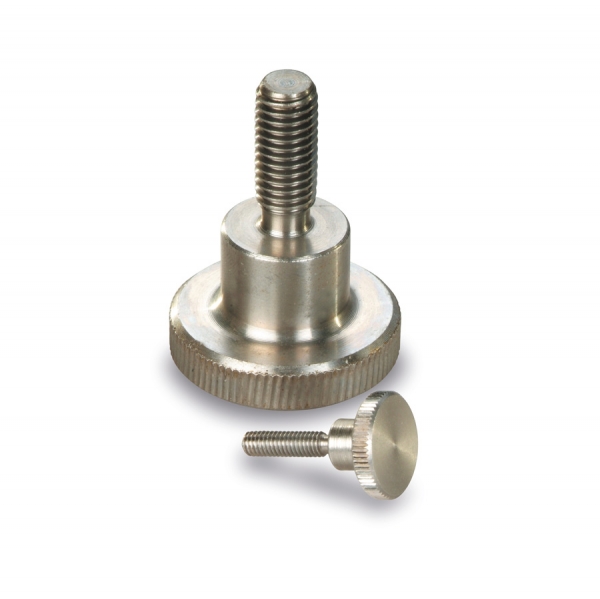

Thumb screw in free cutting steel 1.0718 with black oxide finish, or in stainless steel AISI 303 with natural finish.

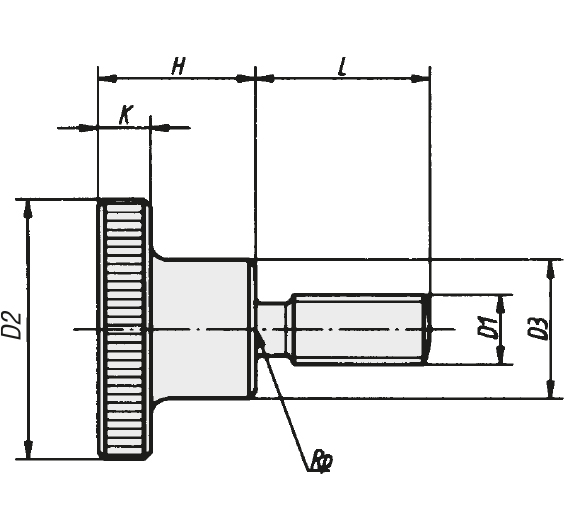

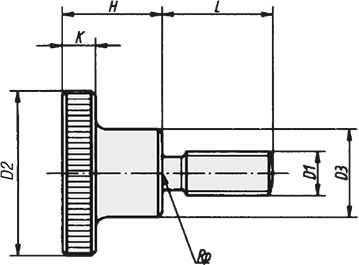

REF	DESIGNATION	D1	D2	D3	H	K
866110	SCREW KNURLED STEEL D.16 M4*10	M4	16	8	9,5	3,5
866116	SCREW KNURLED STEEL D.16 M4*16	M4	16	8	9,5	3,5
866120	SCREW KNURLED STEEL D.16 M4*20	M4	16	8	9,5	3,5
866210	SCREW KNURLED STEEL D.20 M5*10	M5	20	10	11,5	4
866216	SCREW KNURLED STEEL D.20 M5*16	M5	20	10	11,5	4
866220	SCREW KNURLED STEEL D.20 M5*20	M5	20	10	11,5	4
866310	SCREW KNURLED STEEL D.24 M6*10	M6	24	12	15	5
866316	SCREW KNURLED STEEL D.24 M6*16	M6	24	12	15	5
866320	SCREW KNURLED STEEL D.24 M6*20	M6	24	12	15	5
866325	SCREW KNURLED STEEL D.24 M6*25	M6	24	12	15	5
866416	SCREW KNURLED STEEL D.30 M8*16	M8	30	16	18	6
866420	SCREW KNURLED STEEL D.30 M8*20	M8	30	16	18	6
866425	SCREW KNURLED STEEL D.30 M8*25	M8	30	16	18	6
866430	SCREW KNURLED STEEL D.30 M8*30	M8	30	16	18	6
866520	SCREW KNURLED STEEL D.36 M10*20	M10	36	20	23	8
866525	SCREW KNURLED STEEL D.36 M10*25	M10	36	20	23	8
866110i	SCREW KNURLED STAINL. D.16 M4*10	M4	8	9,5	1	3,5
866116i	SCREW KNURLED STAINL. D.16 M4*16	M4	8	9,5	1	3,5
866120i	SCREW KNURLED STAINL. D.16 M4*20	M4	8	9,5	1	3,5
866210i	SCREW KNURLED STAINL. D.20 M5*10	M5	10	11,5	2	4
866216i	SCREW KNURLED STAINL. D.20 M5*16	M5	10	11,5	2	4
866220i	SCREW KNURLED STAINL. D.20 M5*20	M5	10	11,5	2	4
866310i	SCREW KNURLED STAINL. D.24 M6*10	M6	12	15	3	5
866316i	SCREW KNURLED STAINL. D.24 M6*16	M6	12	15	3	5
866320i	SCREW KNURLED STAINL. D.24 M6*20	M6	12	15	3	5
866325i	SCREW KNURLED STAINL. D.24 M6*25	M6	12	15	3	5
866416i	SCREW KNURLED STAINL. D.30 M8*16	M8	16	18	4	6
866420i	SCREW KNURLED STAINL. D.30 M8*20	M8	16	18	4	6
866425i	SCREW KNURLED STAINL. D.30 M8*25	M8	16	18	4	6
866520i	SCREW KNURLED STAINL. D.36 M10*20	M10	20	23	5	8
866525i	SCREW KNURLED STAINL. D.36 M10*25	M10	20	23	5	8
