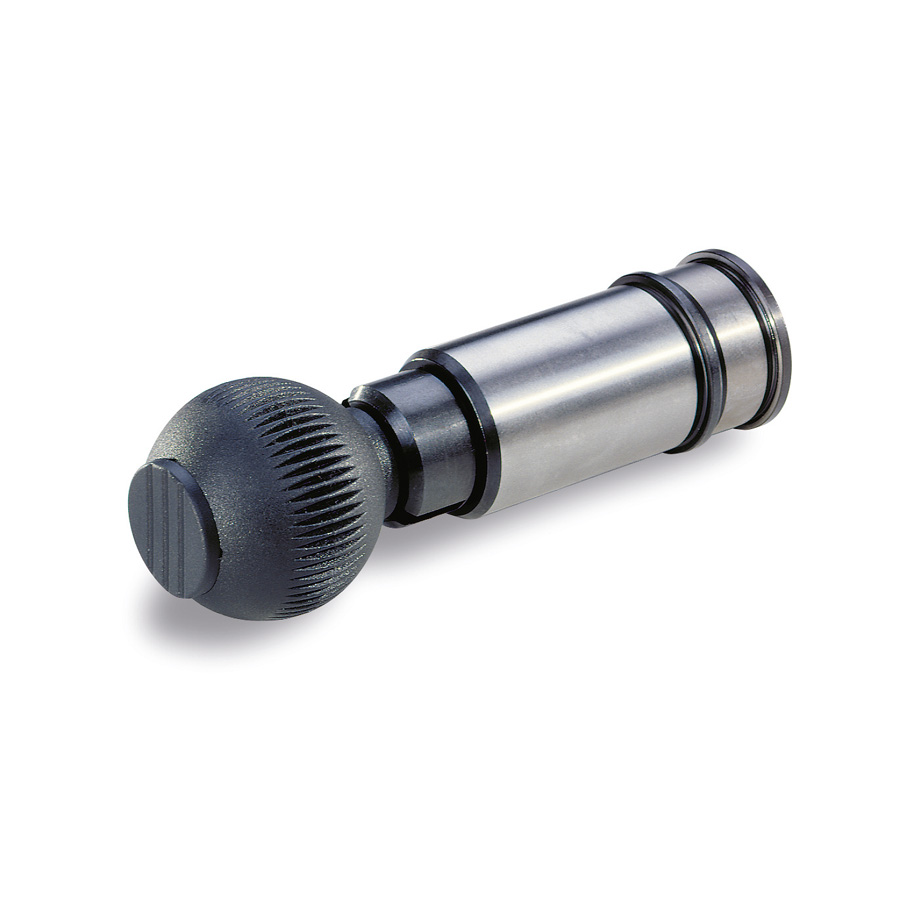

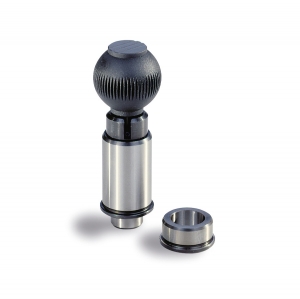

High precision index plunger

with conical tip

Indexing plungers : High precision index plunger
with conical tip
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
Precision index plunger and socket in steel hardened and ground. Grip in reinforced polyamid, anthracite grey.

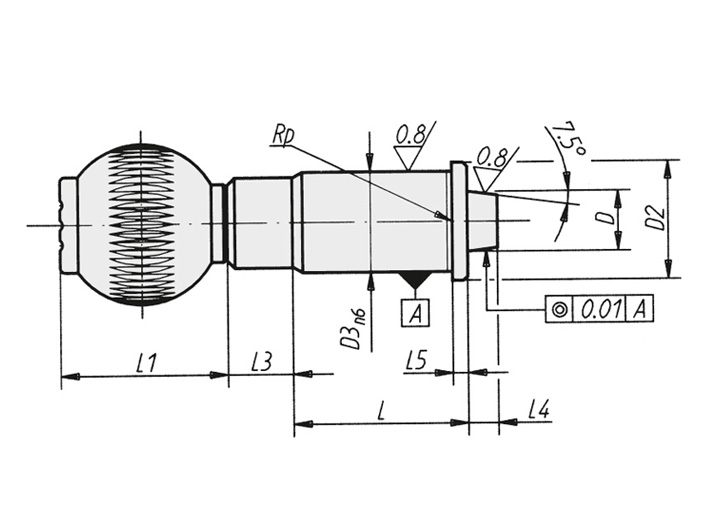

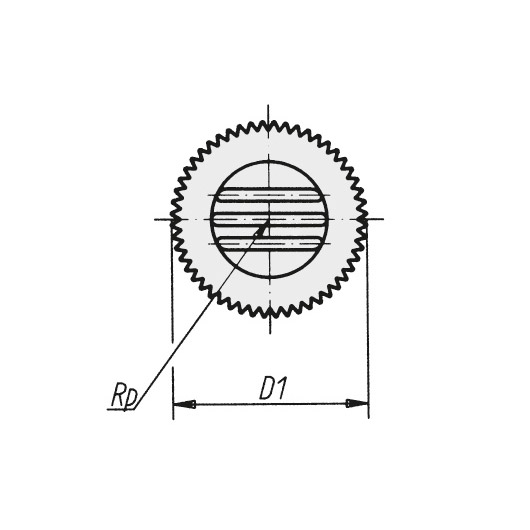

01 / Without slot

REF DESIGNATION D D1 D2 D3n6 L L1 L2 L3 L4 L5 Wight (g) 3D Quote
9530 INDEX PLUNGER STEEL Dh6=12 12 32 23 20 35 33 40,5 13 6 3 127
9531 INDEX PLUNGER STEEL Dh6=20 20 40 33 30 50 41,5 49 13 6 3 350
9532 INDEX PLUNGER STEEL Dh6=25 25 50 42 38 60 51 58,5 13 6 3 655

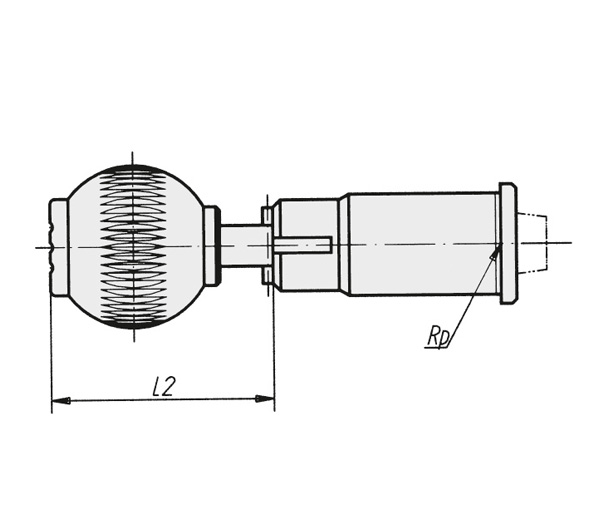

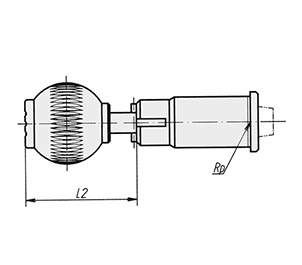

02 / With slot

REF DESIGNATION D D1 D2 D3n6 L L1 L2 L3 L4 L5 Wight (g) 3D Quote
9533 INDEX PLUNGER STEEL Dh6=12 SLOT 12 32 23 20 35 33 40,5 13 6 3 127
9534 INDEX PLUNGER STEEL Dh6=20 SLOT 20 40 33 30 50 41,5 49 13 6 3 350
9535 INDEX PLUNGER STEEL Dh6=25 SLOT 25 50 42 38 60 51 58,5 13 6 3 655

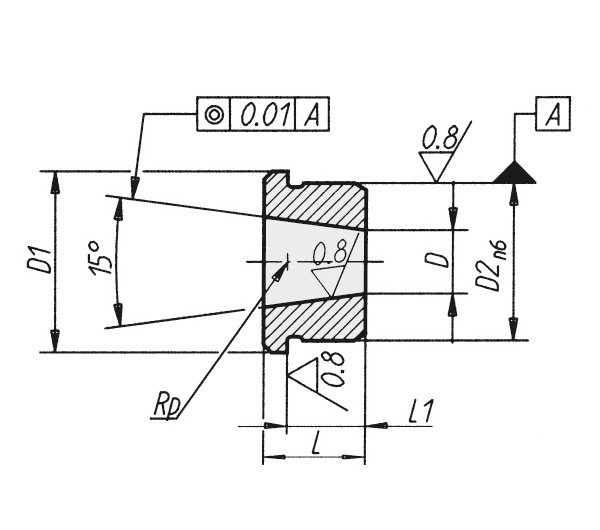

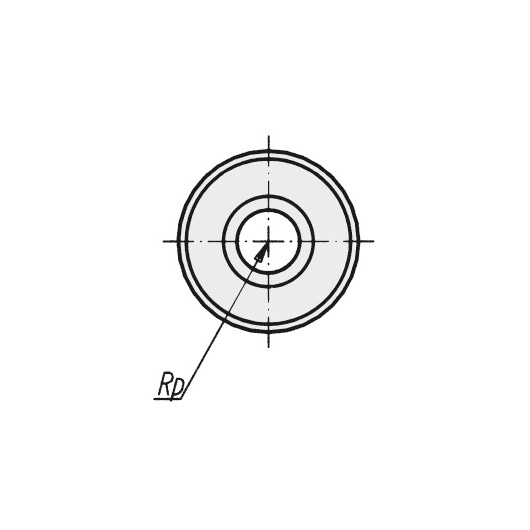

03 / Conical socket

REF DESIGNATION D+0,1 D1 D2n6 L L1 Wight (g) 3D Quote
9536 SOCKET CONICAL STEEL D.8,28 8,08 23 20 13 10 21
9537 SOCKET CONICAL STEEL D.15,29 15,29 33 30 16 13 56
9538 SOCKET CONICAL STEEL D.19,7 19,5 42 38 19 16 115
