Indexing plungers and spring plungers

Indexing plungers

Available variations

Index plunger

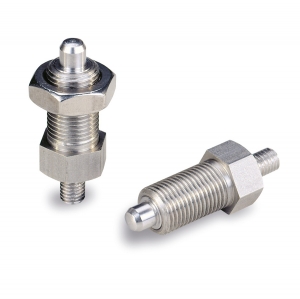

without head-knob

Index plunger

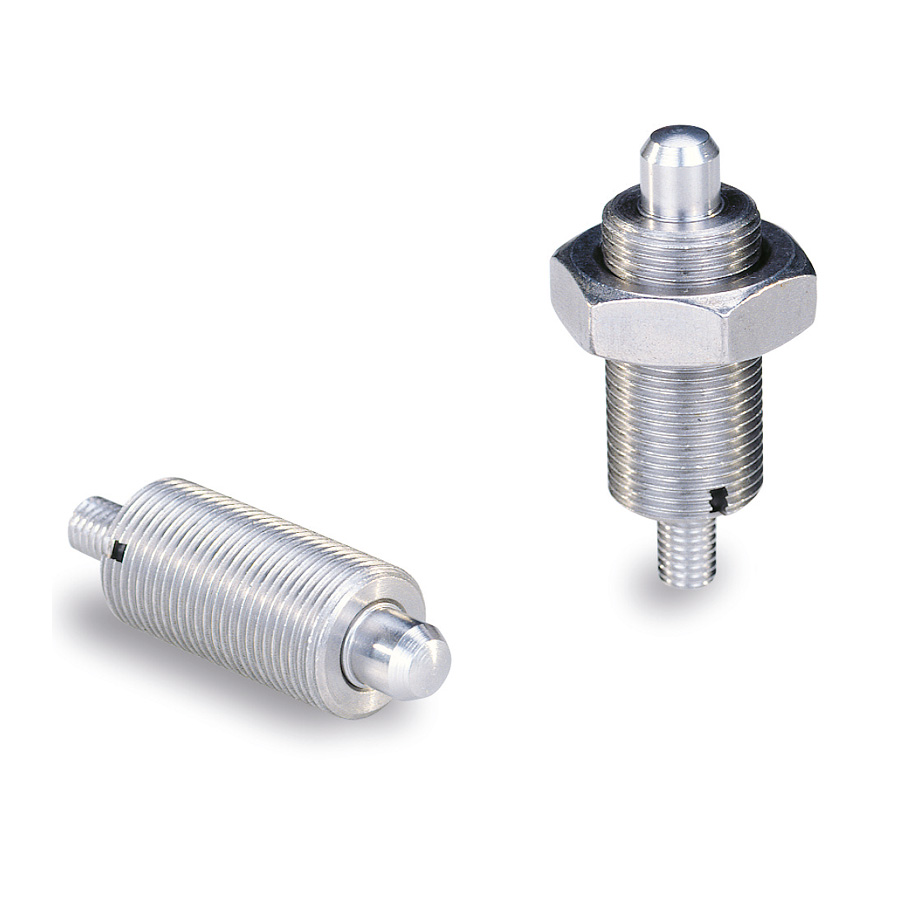

stud only

3D visualisation

Technical specifications

Add to favourites

Steel version : plunger in steel 5.8, black oxide finish. Locking pin hardened and ground. Stainless steel version : plunger in stainless steel 1.4305 and locking pin in hardened stainless steel 1.4034 ground.

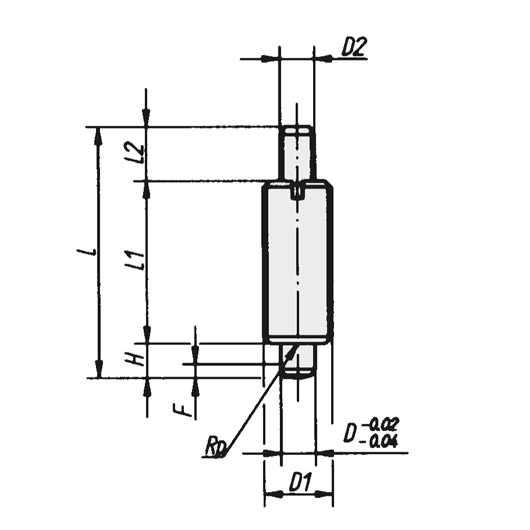

01 / Without locknut

REF	DESIGNATION	D1	D	D2	Fx30	H	L	L1	L2	RES_FIN	RES_INI	SW
8553	INDEX PLUNGER HEADLESS STEEL M10 PIN	M10x1,0	5	M4	1,3	5	37	24	8	12	5	17
8554	INDEX PLUNGER HEADLESS STEEL M12 PIN	M12x1,5	6	M6	1,8	6	42	28	8	14	6	19
8555	INDEX PLUNGER HEADLESS STEEL M16 PIN	M16x1,5	8	M8	2,3	8	56	36	12	35	15	24
8556	INDEX PLUNGER HEADLESS STEEL M20 PIN	M20x1,5	10	M8	2,8	10	62	40	12	40	20	30
8553i	INDEX PLUNGER HEADLESS STAINL. M10 PIN	M10x1,0	5	M4	1,3	5	37	24	8	12	5	17
8554i	INDEX PLUNGER HEADLESS STAINL. M12 PIN	M12x1,5	6	M6	1,8	6	42	28	8	14	6	19
8555i	INDEX PLUNGER HEADLESS STAINL. M16 PIN	M16x1,5	8	M8	2,3	8	56	36	12	35	15	24
8556i	INDEX PLUNGER HEADLESS STAINL. M20 PIN	M20x1,5	10	M8	2,8	10	62	40	12	40	20	30

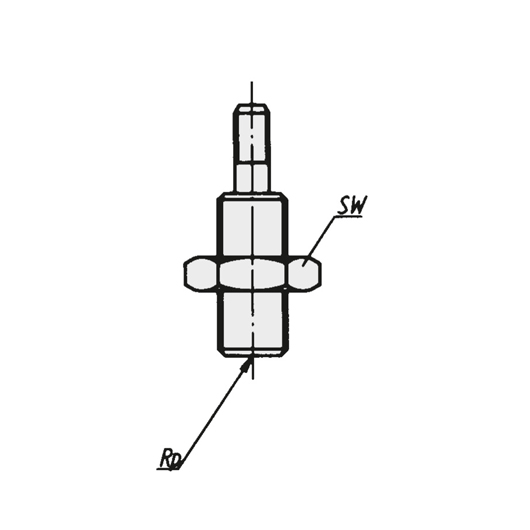

02 / With locknut

REF	DESIGNATION	D1	D	D2	Fx30	H	L	L1	L2	RES_FIN	RES_INI	SW
8557	INDEX PLUNGER HEADLESS STEEL M10 PIN LOCKNUT	M10x1,0	5	M4	1,3	5	37	24	8	12	5	17
8558	INDEX PLUNGER HEADLESS STEEL M12 PIN LOCKNUT	M12x1,5	6	M6	1,8	6	42	28	8	14	6	19
8559	INDEX PLUNGER HEADLESS STEEL M16 PIN LOCKNUT	M16x1,5	8	M8	2,3	8	56	36	12	35	15	24
8560	INDEX PLUNGER HEADLESS STEEL M20 PIN LOCKNUT	M20x1,5	10	M8	2,8	10	62	40	12	40	20	30
8557i	INDEX PLUNGER HEADLESS STAINL. M10 PIN LOCKNUT	M10x1,0	5	M4	1,3	5	37	24	8	12	5	17
8558i	INDEX PLUNGER HEADLESS STAINL. M12 PIN LOCKNUT	M12x1,5	6	M6	1,8	6	42	28	8	14	6	19
8559i	INDEX PLUNGER HEADLESS STAINL. M16 PIN LOCKNUT	M16x1,5	8	M8	2,3	8	56	36	12	35	15	24
8560i	INDEX PLUNGER HEADLESS STAINL. M20 PIN LOCKNUT	M20x1,5	10	M8	2,8	10	62	40	12	40	20	30
