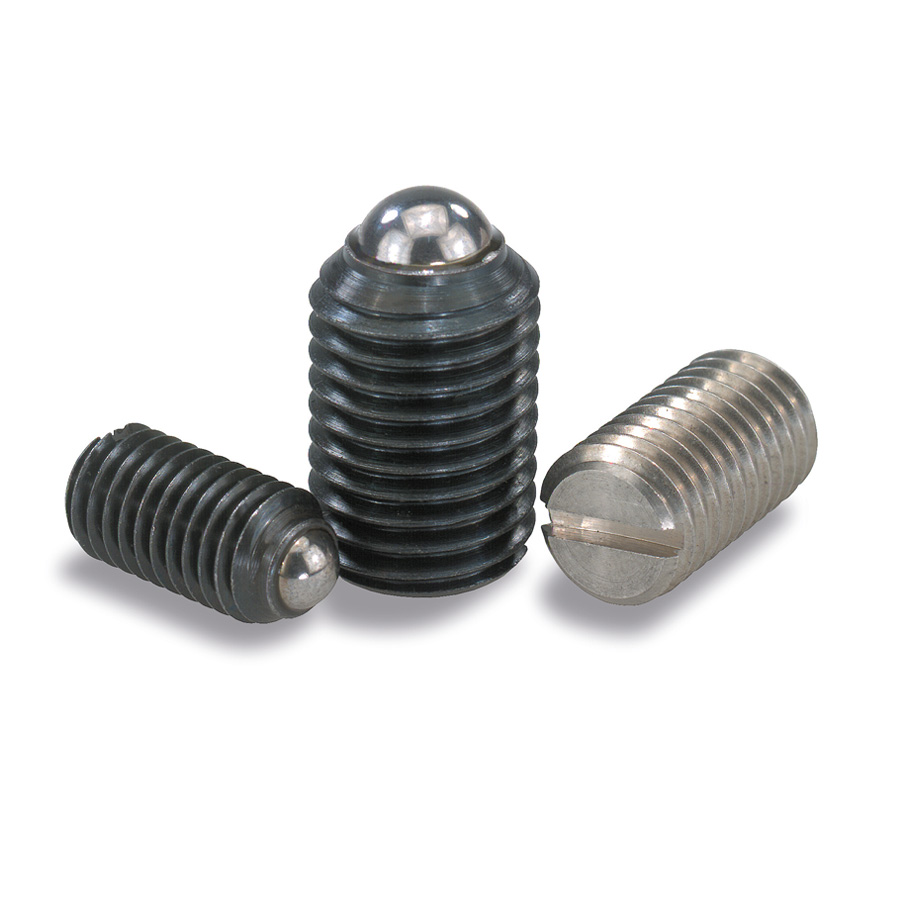

Spring plunger

with bead and slot

Spring plungers : Spring plunger with bead and slot
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Steel version : body in steel class 5.8 black oxide finish, ball in hardened steel, spring in spring steel class D. Stainless steel version : body in stainless steel 1.4305, AISI 303, ball in hardened stainless steel 1.4034, spring in spring stainless steel 1.4310.

01 / Plunger, regular spring resistance

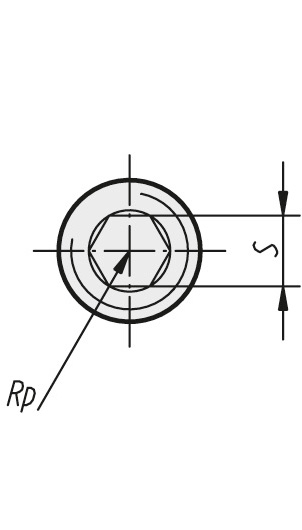

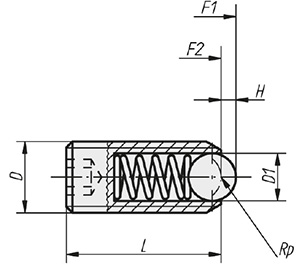

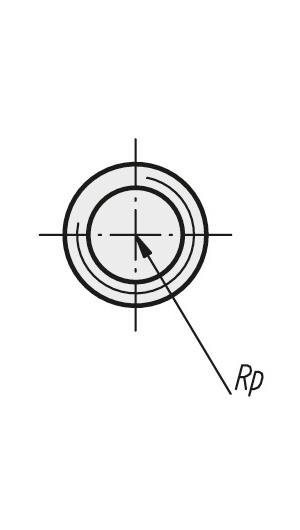

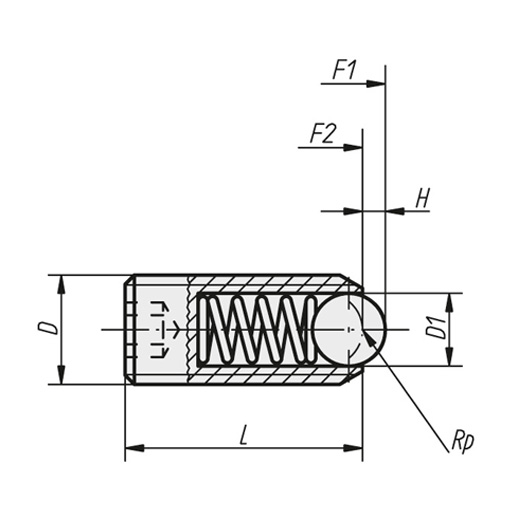

REF DESIGNATION D D1 H L N RES_F1 RES_F2 3D Quote
8370 SPRING PLUNGER STEEL M3 BEAD/SLOT M3 1,5 0,5 7 0,4 1,5 3
8371 SPRING PLUNGER STEEL M4 BEAD/SLOT M4 2,5 0,8 9 0,6 4 10
8372 SPRING PLUNGER STEEL M5 BEAD/SLOT M5 3 0,9 12 0,8 6 11
8373 SPRING PLUNGER STEEL M6 BEAD/SLOT M6 3,5 1 14 1 9 13
8374 SPRING PLUNGER STEEL M8 BEAD/SLOT M8 5 1,5 16 1,2 15 30
8375 SPRING PLUNGER STEEL M10 BEAD/SLOT M10 6 2 19 1,6 20 35
8376 SPRING PLUNGER STEEL M12 BEAD/SLOT M12 8 2,5 22 2 30 55
8377 SPRING PLUNGER STEEL M16 BEAD/SLOT M16 10 3,5 24 2,5 65 125
8378 SPRING PLUNGER STEEL M20 BEAD/SLOT M20 12 4,5 30 2,5 80 160
8370i SPRING PLUNGER STAINL. M3 STAINL. BEAD/SLOT M3 1,5 0,5 7 0,4 1,5 3
8371i SPRING PLUNGER STAINL. M4 STAINL. BEAD/SLOT M4 2,5 0,8 9 0,6 4 10
8372i SPRING PLUNGER STAINL. M5 STAINL. BEAD/SLOT M5 3 0,9 12 0,8 6 11
8373i SPRING PLUNGER STAINL. M6 STAINL. BEAD/SLOT M6 3,5 1 14 1 9 13
8374i SPRING PLUNGER STAINL. M8 STAINL. BEAD/SLOT M8 5 1,5 16 1,2 15 30
8375i SPRING PLUNGER STAINL. M10 STAINL. BEAD/SLOT M10 6 2 19 1,6 20 35
8376i SPRING PLUNGER STAINL. M12 STAINL. BEAD/SLOT M12 8 2,5 22 2 30 55
8377i SPRING PLUNGER STAINL. M16 STAINL. BEAD/SLOT M16 10 3,5 24 2,5 65 125
8378i SPRING PLUNGER STAINL. M20 STAINL. BEAD/SLOT M20 12 4,5 30 2,5 80 160

02 / Plunger, strong spring resistance

REF DESIGNATION D D1 H L N RES_F1 RES_F2 3D Quote
7048 SPRING PLUNGER STEEL M3 BEAD/SLOT M3 1,5 0,4 7 0,4 5 7
7049 SPRING PLUNGER STEEL M4 BEAD/SLOT M4 2,5 0,8 9 0,6 12 22
7036 SPRING PLUNGER STEEL M5 BEAD/SLOT M5 3 0,9 12 0,8 19 30
7037 SPRING PLUNGER STEEL M6 BEAD/SLOT M6 3,5 1 14 1 28 40
7038 SPRING PLUNGER STEEL M8 BEAD/SLOT M8 5 1,5 16 1,2 47 73
7039 SPRING PLUNGER STEEL M10 BEAD/SLOT M10 6 2 19 1,6 66 100
7040 SPRING PLUNGER STEEL M12 BEAD/SLOT M12 8 2,5 22 2 66 120
7041 SPRING PLUNGER STEEL M16 BEAD/SLOT M16 10 3,5 24 2,5 90 180
7042 SPRING PLUNGER STEEL M20 BEAD/SLOT M20 12 4,5 30 2,5 115 240
7048i SPRING PLUNGER STAINL. M3 STAINL. BEAD/SLOT M3 1,5 0,4 7 0,4 5 7
7049i SPRING PLUNGER STAINL. M4 STAINL. BEAD/SLOT M4 2,5 0,8 9 0,6 12 22
7036i SPRING PLUNGER STAINL. M5 STAINL. BEAD/SLOT M5 3 0,9 12 0,8 19 30
7037i SPRING PLUNGER STAINL. M6 STAINL. BEAD/SLOT M6 3,5 1 14 1 28 40
7038i SPRING PLUNGER STAINL. M8 STAINL. BEAD/SLOT M8 5 1,5 16 1,2 47 73
7039i SPRING PLUNGER STAINL. M10 STAINL. BEAD/SLOT M10 6 2 19 1,6 66 100
7040i SPRING PLUNGER STAINL. M12 STAINL. BEAD/SLOT M12 8 2,5 22 2 66 120
7041i SPRING PLUNGER STAINL. M16 STAINL. BEAD/SLOT M16 10 3,5 24 2,5 90 180
7042i SPRING PLUNGER STAINL. M20 STAINL. BEAD/SLOT M20 12 4,5 30 2,5 115 240
