Pull handles

Tubular pull handles
Available variations

Handle DB

with  aluminium tube diam. 20mm

Handle DB

with aluminium tube  diam. 30mm

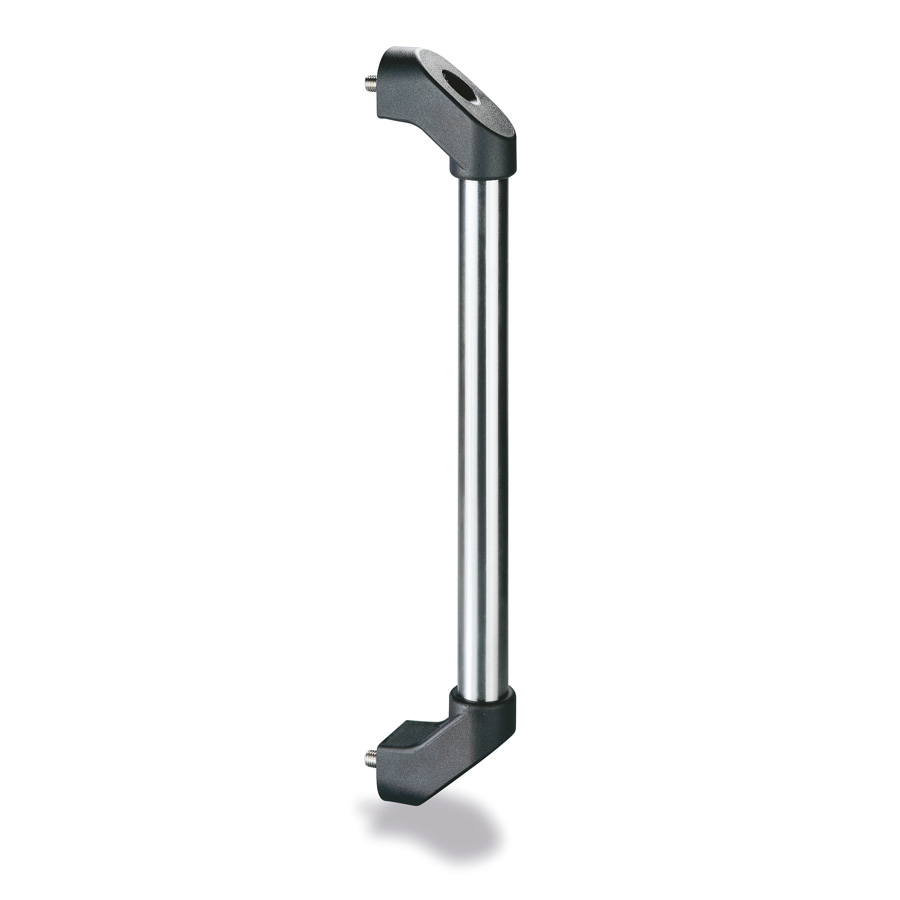

Tubular pull handles : Handle DB with aluminium tube  diam. 30mm
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

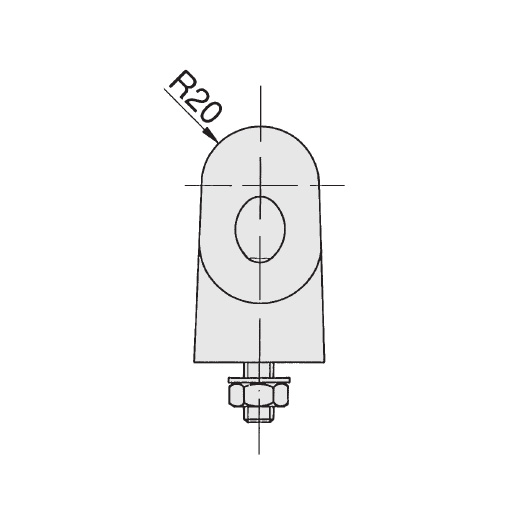

Handle shanks and caps made of high duty polyamide, glass bead reinforced, black, half-matt. Connecting tube made of aluminium AlMgSi 0.5, ground and anodized. The handle shanks are designed with 4 clamping bars ; when the tube is inserted, they will peel off and provide firm fitting. Handle supplied with galvanized fastening material. Handle is supplied assembled. Stress resistance min. 1000 N.

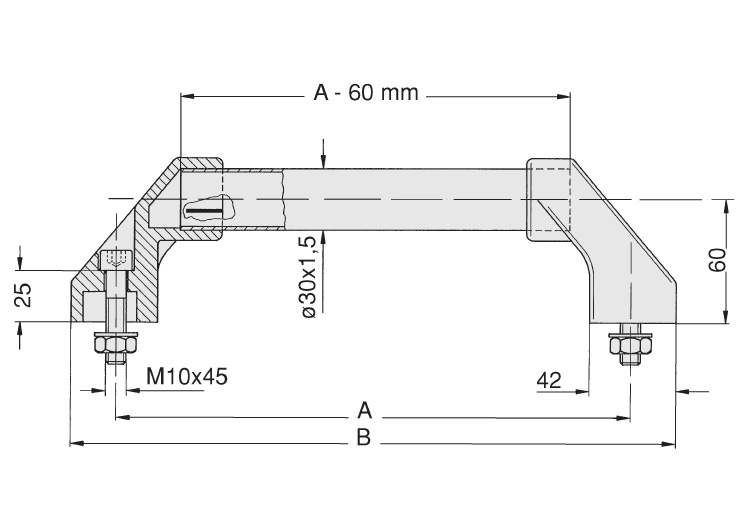

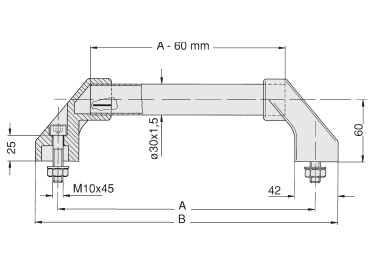

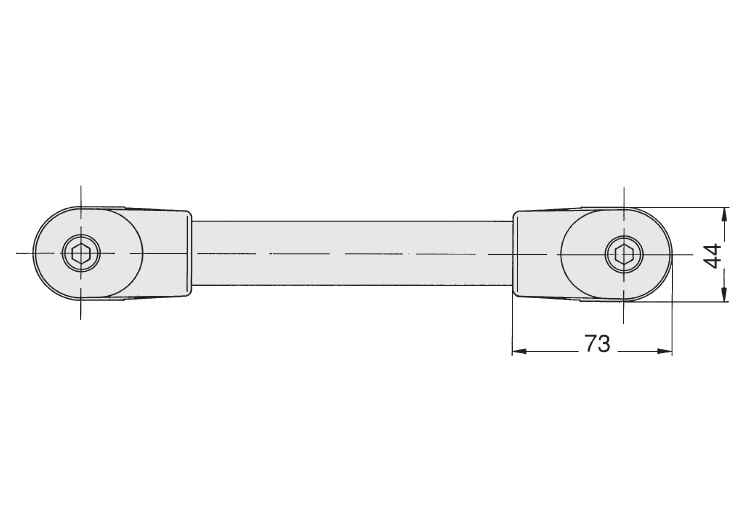

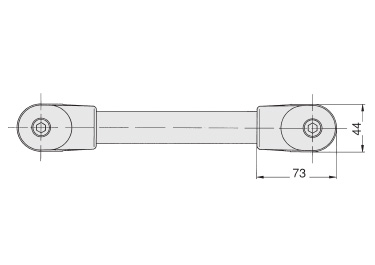

REF DESIGNATION A B Wgt. (g) 3D Quote
10421 HANDLE DB ALU 250MM D.30 FITTING M10 250 294 394
10422 HANDLE DB ALU 300MM D.30 FITTING M10 300 344 415
10423 HANDLE DB ALU 350MM D.30 FITTING M10 350 394 436
10424 HANDLE DB ALU 400MM D.30 FITTING M10 400 444 457
10425 HANDLE DB ALU 500MM D.30 FITTING M10 500 544 499
10426 HANDLE DB ALU 600MM D.30 FITTING M10 600 644 541
10550 HANDLE DB ALU 250MM FITTING M10 COVER 250 294 394
10551 HANDLE DB ALU 300MM FITTING M10 COVER 300 344 415
10552 HANDLE DB ALU 350MM FITTING M10 COVER 350 394 436
10553 HANDLE DB ALU 400MM FITTING M10 COVER 400 444 457
10554 HANDLE DB ALU 500MM FITTING M10 COVER 500 544 499
10555 HANDLE DB ALU 600MM FITTING M10 COVER 600 644 541
