Horizontal clamp H2-A

3D visualisation

Technical specifications

Add to favourites

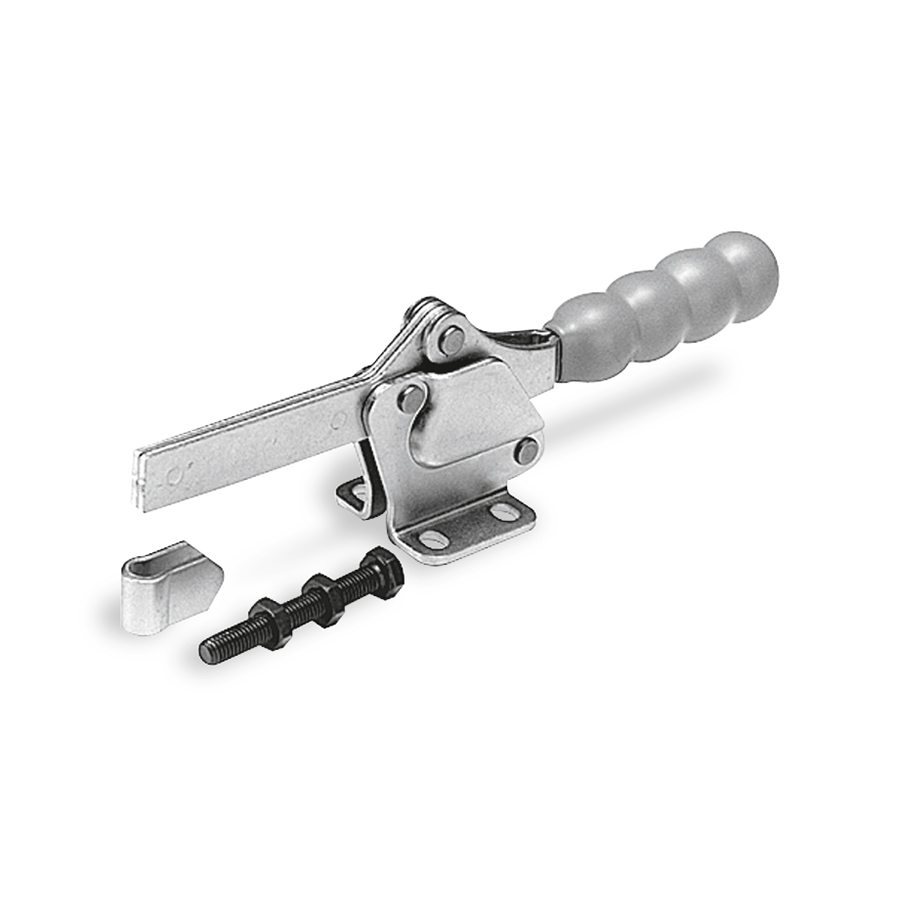

Clamp made of galvanized steel. Clamp supplied complete with fastening material. Handle cover in orange oil-resistant plastic.

Loading, please wait...

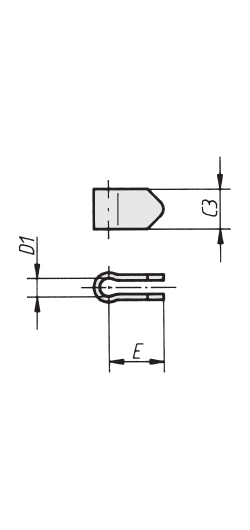

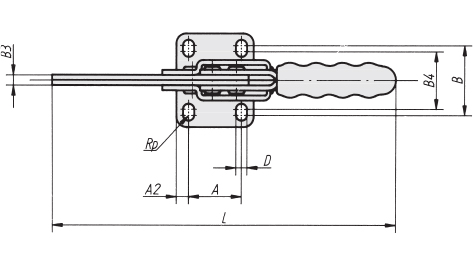

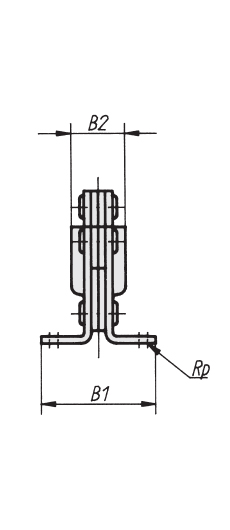

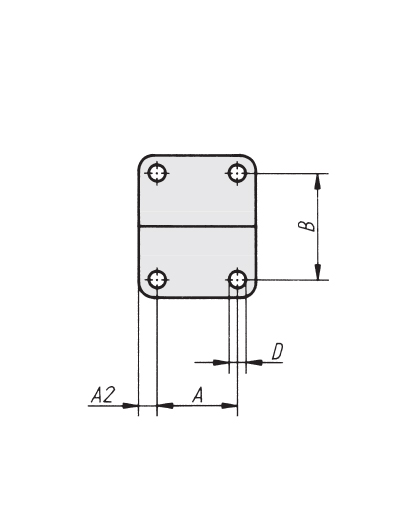

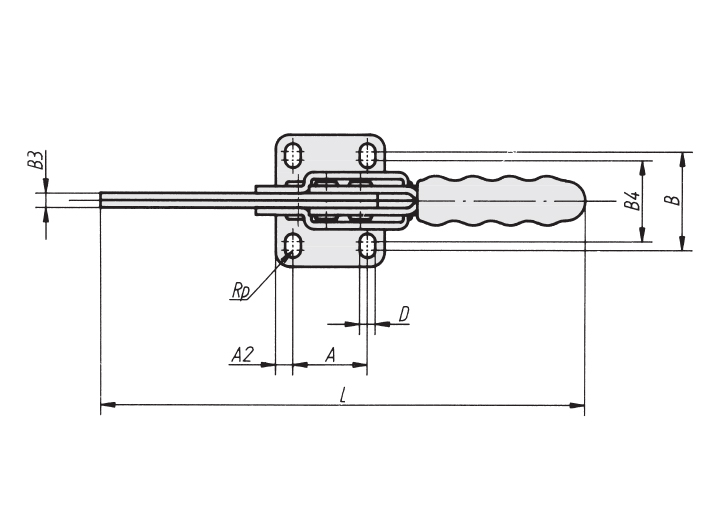

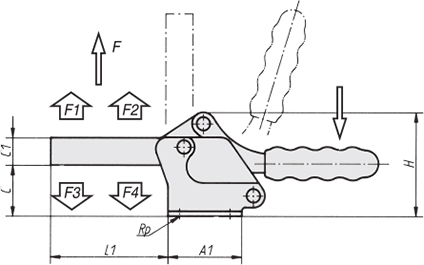

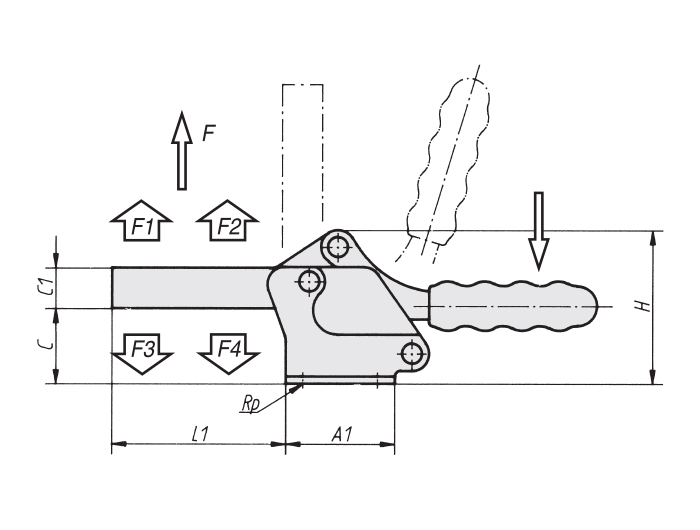

REF	DESIGNATION	A	A1	A2	B	B1	B2	B3	B4	C	C1	C3	D	D1	E	F	H	L	L1	vis
5993	HORIZONTAL CLAMP H2-A 2500N	26	42	8	31	46	23	6	26	34	17,5	17,5	6,6	8,3	24	2500	67	226	82	M8x60
5994	HORIZONTAL CLAMP H2-A 3500N	41,2	59	9	43	59	30	8	39	45	23	22	8,7	10,3	30	3500	89	279	111	M10x80
5995	HORIZONTAL CLAMP H2-A 4500N	41,2	66	13	41,3	67	34	10	0	59	26	26	8,7	12,3	32	4500	110	310	130	M12x100
