T- handles and wing knobs : Knob AM in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

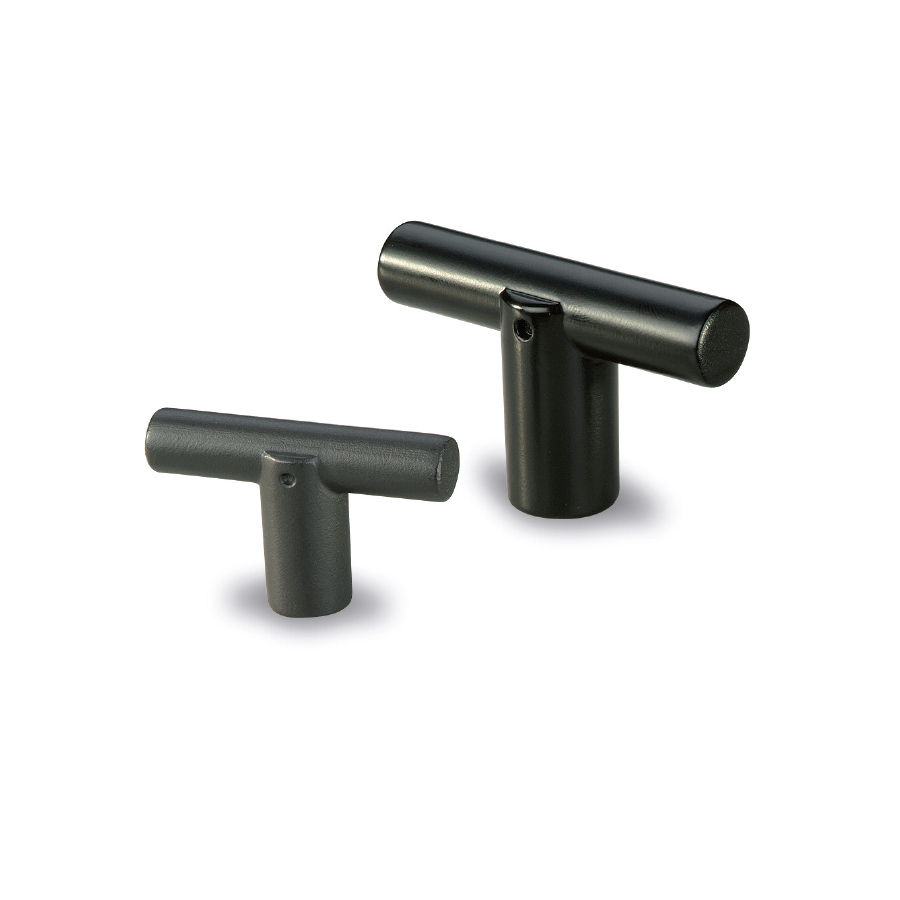

Knob in high resistance polyamide reinforced with glass fibres, black matt, with insert in zinc plated steel.

AVAILABLE VERSIONS

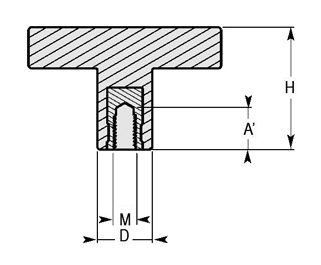

Schéma 1 + Knob AM in composite plastic

01 / Female insert

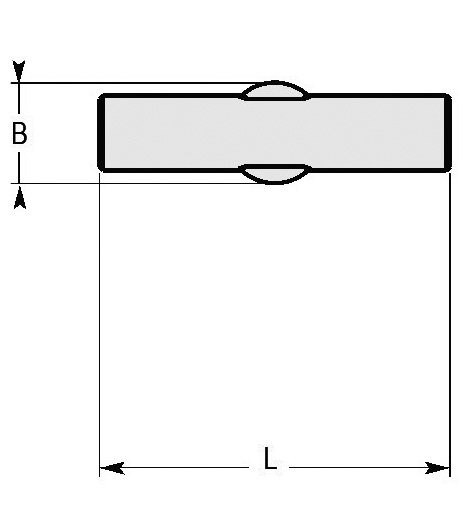

Schéma 2 + Knob AM in composite plastic
REF DESIGNATION L M B D F H A' Wgt. (g) 3D Quote
16202 KNOB AM POLYA. L.50 STEEL INS M6 50 M6 14 14 21 32 9 14
16203 KNOB AM POLYA. L.70 STEEL INS M8 70 M8 20 19 30 44 14 41
16204 KNOB AM POLYA. L.70 STEEL INS M10 70 M10 20 19 30 44 18 49

02 / With stud

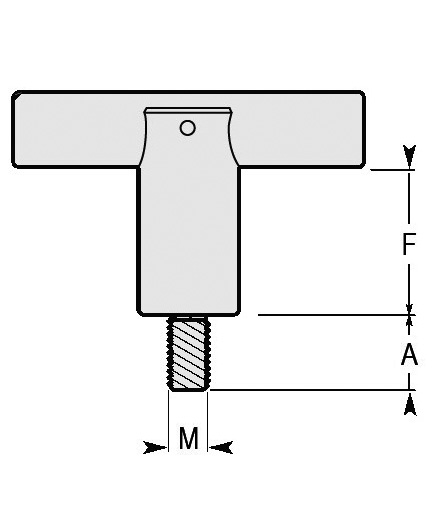

Schéma 3 + Knob AM in composite plastic
REF DESIGNATION L M B D F H A 3D Quote
16292 KNOB AM POLYA. L.50 STEEL STUD M6*15 50 M6 14 14 21 32 15
16171 KNOB AM POLYA. L.70 STEEL STUD M8*20 70 M8 20 19 30 44 20
16181 KNOB AM POLYA. L.70 STEEL STUD M10*20 70 M10 20 19 30 44 20
