Knob T

in composite plastic

T- handles and wing knobs : Knob T
in composite plastic
  • Reach
  • Rohs
64x64
125° Celsius
-35° Celsius

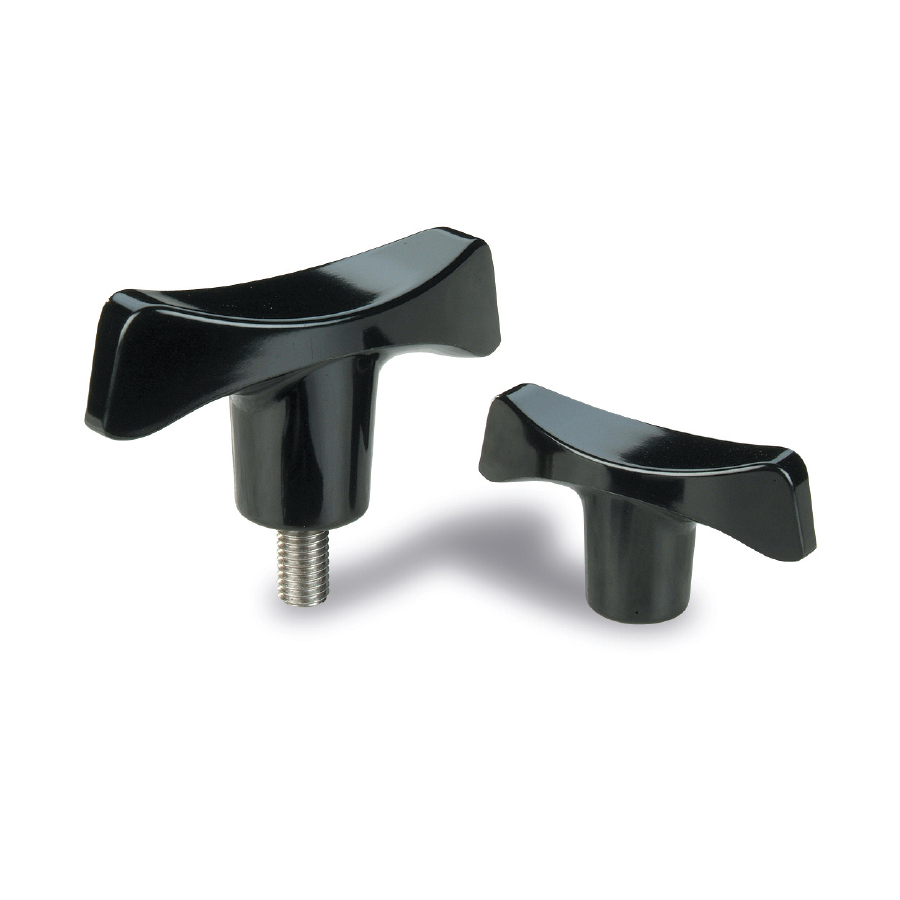

Knob made of high-duty, heat resistant duroplast, black, high gloss surface. Insert in zinc plated steel.

AVAILABLE VERSIONS


Schéma 1 + Knob T
in composite plastic

01 / Female insert

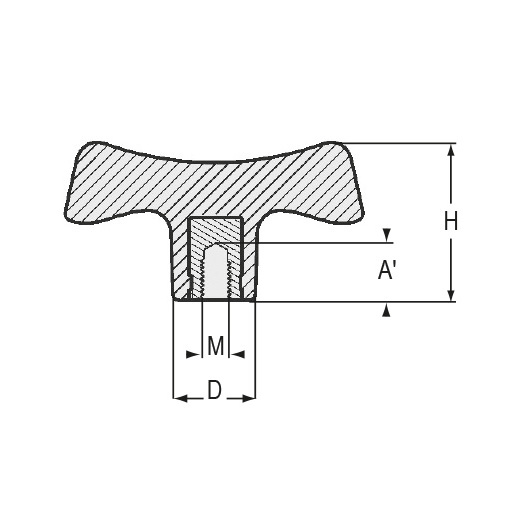

Schéma 2 + Knob T
in composite plastic
REF DESIGNATION L M D H A' Wight (g) 3D Quote
2486 HANDLE "T" BAK. L.70 STEEL INS M6 70 M6 19,6 38,8 12 40
2114 HANDLE "T" BAK. L70 STEEL INS M8 70 M8 19,6 38,8 14 45
2117 HANDLE "T" BAK. L70 STEEL INS M10 70 M10 19,6 38,8 14 50
2144 HANDLE "T" BAK. L.80 STEEL INS M8 80 M8 22,3 44 14 60
2118 HANDLE "T" BAK. L.80 STEEL INS M10 80 M10 22,3 44 22 65
2476 HANDLE "T" BAK. L.90 STEEL INS M10 90 M10 25 49,6 22 85
2122 HANDLE "T" BAK. L.90 STEEL INS M12 90 M12 25 49,6 21 90

02 / With stud

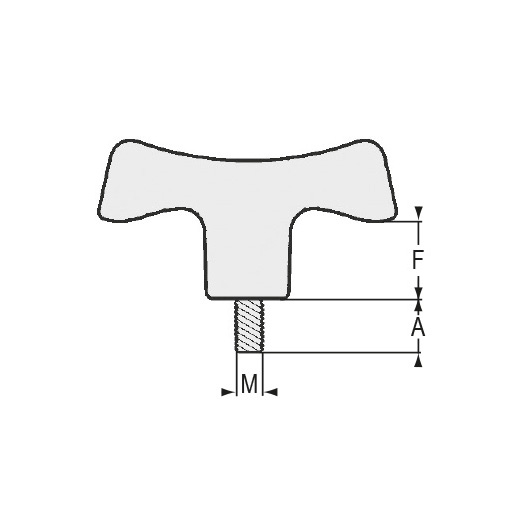

Schéma 3 + Knob T
in composite plastic
REF DESIGNATION L M D H A Wight (g) 3D Quote
2115 HANDLE "T" BAK. L.70 STEEL STUD M6*18 70 M6 19,6 38,8 18 45
2116 HANDLE "T" BAK. L.70 STEEL STUD M8*24 70 M8 19,6 38,8 24 55
2478 HANDLE "T" BAK. L.80 STEEL STUD M10*20 80 M10 22,3 44 20 75
2120 HANDLE "T" BAK. L.80 STEEL STUD M10*30 80 M10 22,3 44 30 80
2124 HANDLE "T" BAK. L.90 STEEL STUD M10*30 90 M10 25 49,6 30 90
2717 HANDLE "T" BAK. L.90 STEEL STUD M12*24 90 M12 25 49,6 24 95
