Vertical clamp V1-C

3D visualisation

Technical specifications

Add to favourites

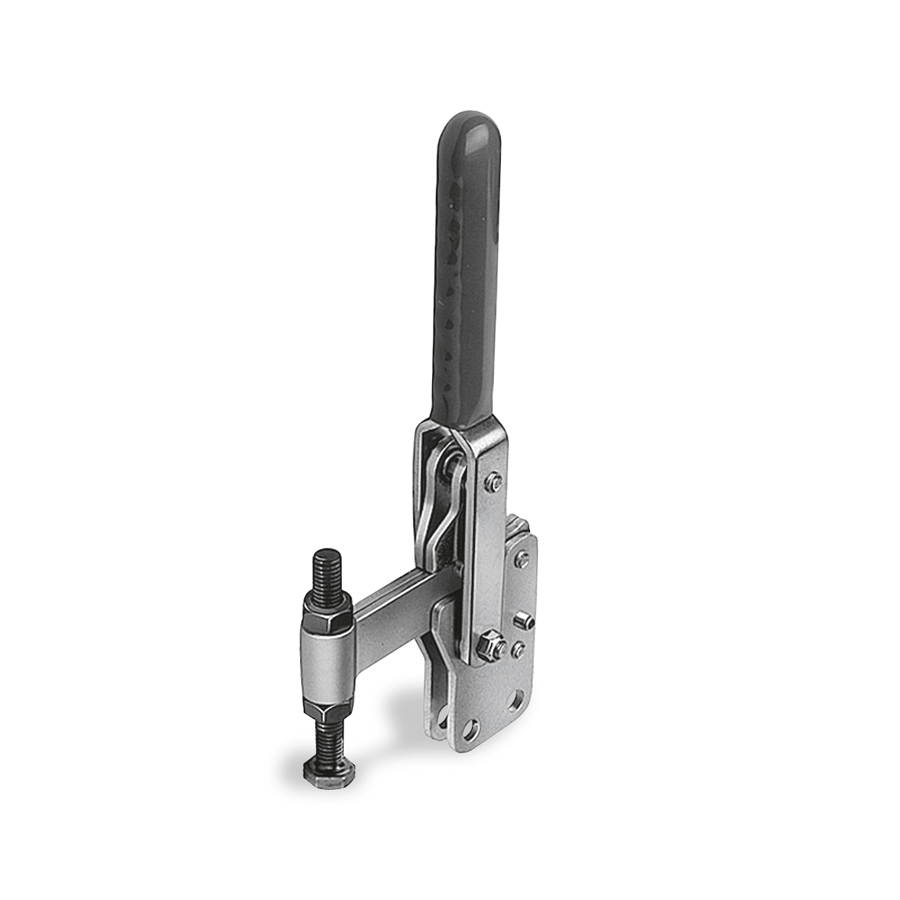

Clamp made of galvanized steel. Clamp supplied complete with fastening material. Handle cover in orange oil-resistant plastic.

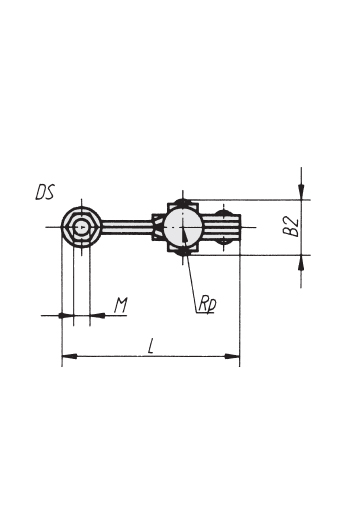

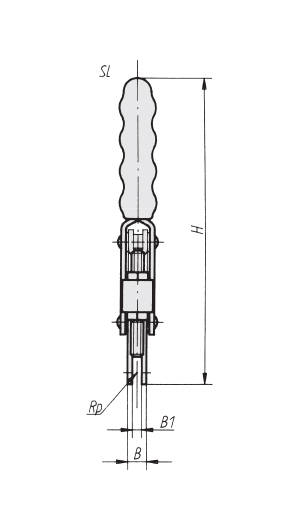

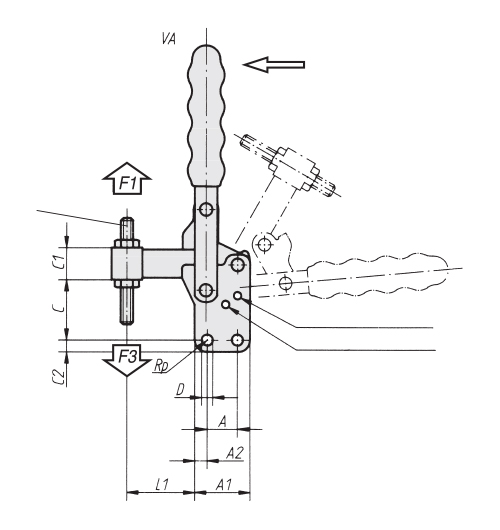

REF	DESIGNATION	M	A	A1	A2	ANG1B	ANG1L	ANG2B	ANG2L	ANG3B	ANG3L	B	B1	B2	C	C1	C2	D	F	H	L	L1
5956	VERTICAL CLAMP V1-C 1500N	M6x50	12,7	27	7	95	75	0	0	185	110	12	6	24	28	11	5,4	5,1	1500	135	60	26
5957	VERTICAL CLAMP V1-C 2500N	M8x60	19	35	8	95	70	125	85	160	100	12	6	23	37	17,5	7	7,1	2500	190	87	45
5958	VERTICAL CLAMP V1-C 3500N	M10x80	32	50	9	90	70	120	80	180	110	16	8	30	52	22	9,6	8,3	3500	240	124	65
5959	VERTICAL CLAMP V1-C 4500N	M12x100	32	53	10	90	70	125	85	180	110	20	10	37	57	25	8,7	8,7	4500	246	137	74
5960	VERTICAL CLAMP V1-C 5500N	M16x150	51	76	12,5	90	65	120	80	180	110	20	10	38	100	32	12,7	12,3	5500	345	196	108
