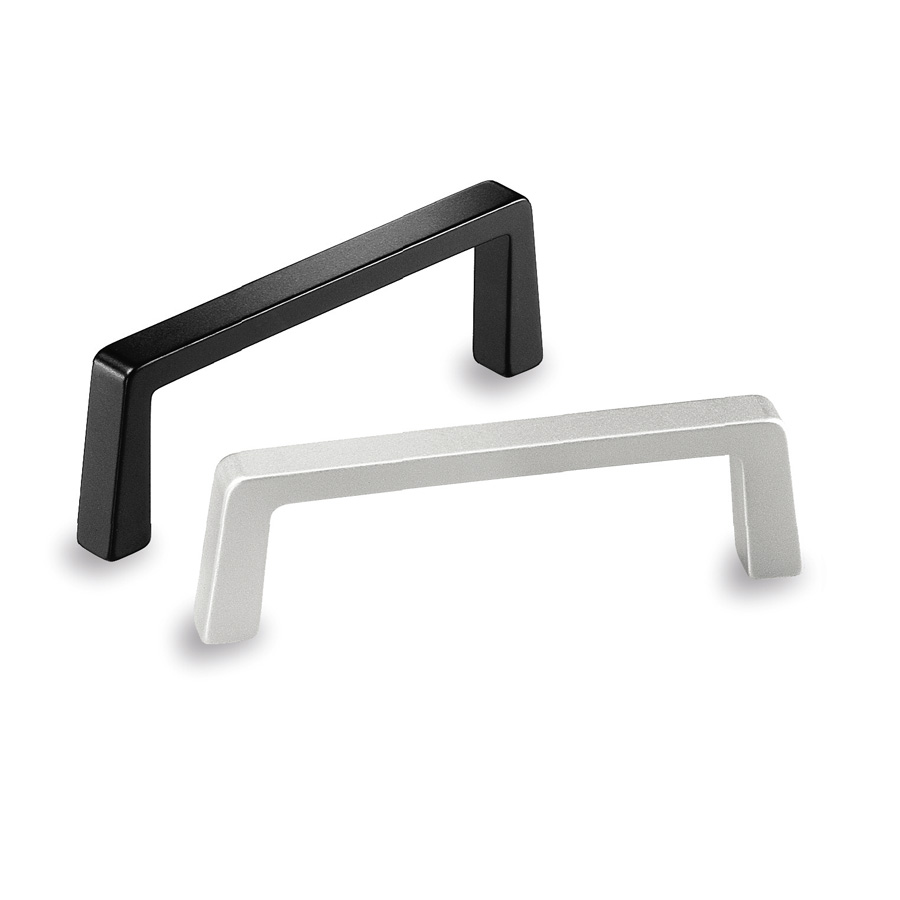

Aluminium pull handles : Handle SG in aluminium
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Handle made of profiled aluminium Al Mg Si 0.5, anodized with matt finish. Stress resistance minimum 500 N.

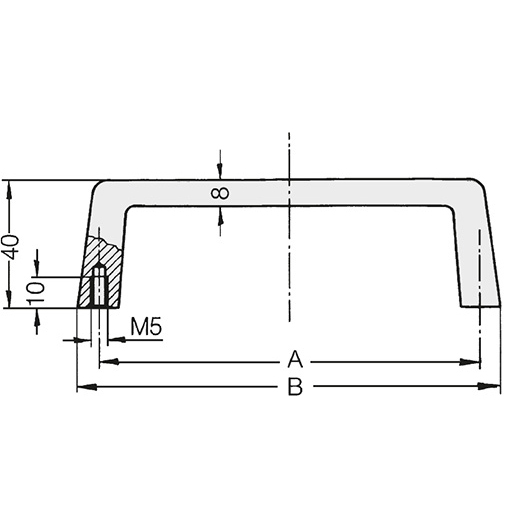

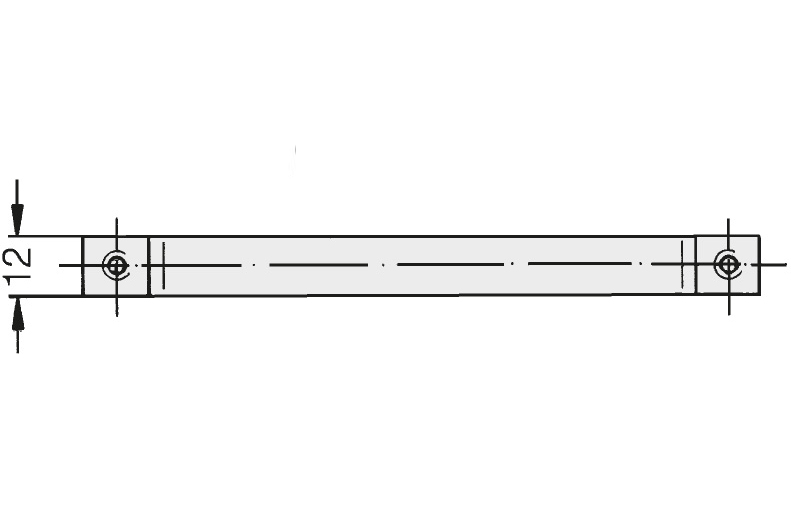

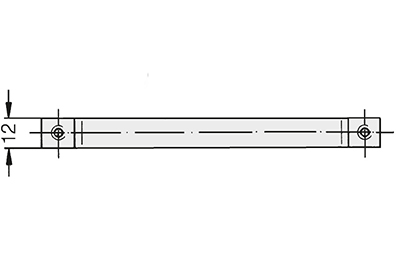

REF DESIGNATION A B FIXATION Wgt. (g) 3D Quote
10016 HANDLE SG ALU 25MM M5 25 40 M5 25
10017 HANDLE SG ALU 55MM M5 55 69 M5 39
10018 HANDLE SG ALU 88MM M5 88 102 M5 47
10019 HANDLE SG ALU 120MM M5 120 134 M5 55
10020 HANDLE SG ALU 133.4MM M5 133,4 146,5 M5 59
10021 HANDLE SG ALU 177.8MM M5 177,8 191 M5 67
10022 HANDLE SG ALU 180MM M5 180 194 M5 68
10023 HANDLE SG ALU 235MM M5 235 249 M5 85
10016N HANDLE SG ALU 25MM M5 BLACK 25 40 M5 25
10017N HANDLE SG ALU 55MM M5 BLACK 55 69 M5 39
10018N HANDLE SG ALU 88MM M5 BLACK 88 102 M5 47
10019N HANDLE SG ALU 120MM M5 BLACK 120 134 M5 55
10020N HANDLE SG ALU 133.4MM M5 BLACK 133,4 146,5 M5 59
10021N HANDLE SG ALU 177.8MM M5 BLACK 177,8 191 M5 67
10022N HANDLE SG ALU 180MM M5 BLACK 180 194 M5 68
10023N HANDLE SG ALU 235MM M5 BLACK 235 249 M5 85
