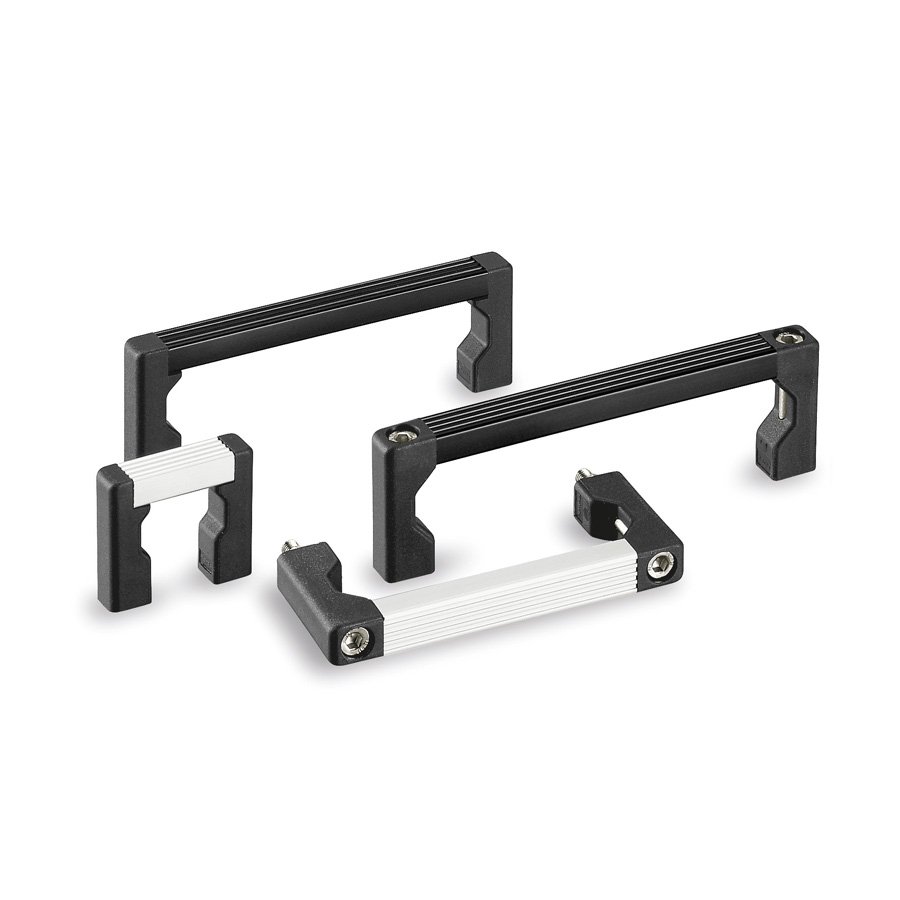

Aluminium pull handles : Handle DN in aluminium
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Handle made of anodized aluminium tubing with matt finish and high duty, black half matt polyamide shanks. Version 01 is supplied with a full galvanized steel core and version 02 with a steel plate reinforcement, stainless steel M5 x 45 screws and galvanized self locking ratchet nuts. Stress resistance minimum 500 N.

AVAILABLE VERSIONS

01 / With steel cores

Schéma 1 + Handle DN in aluminium
REF DESIGNATION A B FIXATION Wgt. (g) 3D Quote
10610 HANDLE DN ALU 55MM M5 55 65 M5 43
10611 HANDLE DN ALU 88MM M5 88 98 M5 46
10612 HANDLE DN ALU 100MM M5 100 110 M5 47
10613 HANDLE DN ALU 120MM M5 120 130 M5 52
10614 HANDLE DN ALU 180MM M5 180 190 M5 61
10615 HANDLE DN ALU 235MM M5 235 245 M5 70
10610N HANDLE DN ALU 55MM M5 BLACK 55 65 M5 43
10611N HANDLE DN ALU 88MM M5 BLACK 88 98 M5 46
10612N HANDLE DN ALU 100MM M5 BLACK 100 110 M5 47
10613N HANDLE DN ALU 120MM M5 BLACK 120 130 M5 52
10614N HANDLE DN ALU 180MM M5 BLACK 180 190 M5 61
10615N HANDLE DN ALU 235MM M5 BLACK 235 245 M5 70

02 / with steel plates

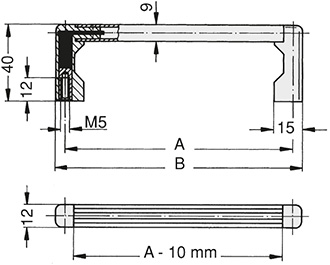

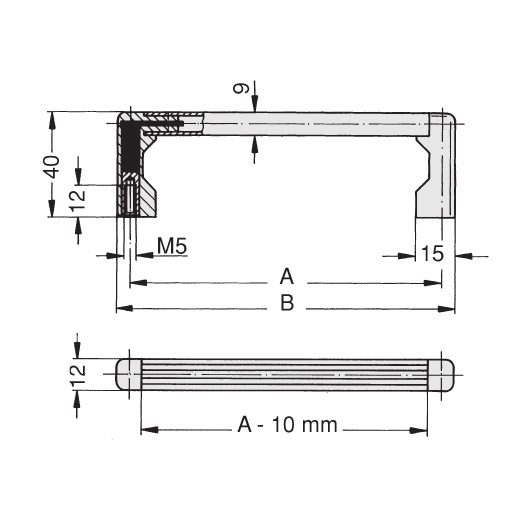

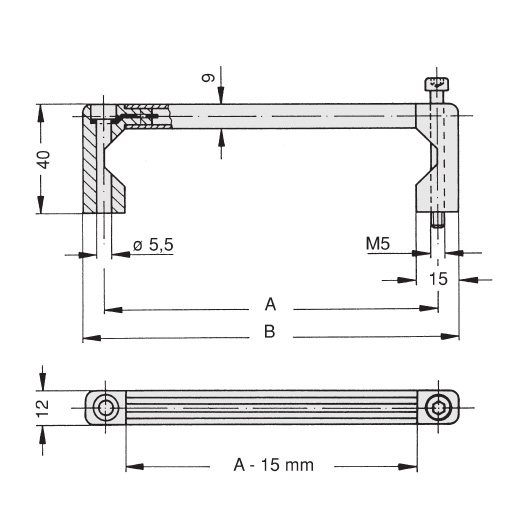

Schéma 2 + Handle DN in aluminium
REF DESIGNATION A B FIXATION Wgt. (g) 3D Quote
10620 HANDLE DN ALU 55MM M5 55 70 M5x45 43
10621 HANDLE DN ALU 88MM M5 88 103 M5x45 46
10622 HANDLE DN ALU 100MM M5 100 115 M5x45 47
10623 HANDLE DN ALU 120MM M5 120 135 M5x45 52
10624 HANDLE DN ALU 180MM M5 180 195 M5x45 61
10625 HANDLE DN ALU 235MM M5 235 250 M5x45 70
10620N HANDLE DN ALU 55MM M5 BLACK 55 70 M5x45 43
10621N HANDLE DN ALU 88MM M5 BLACK 88 103 M5x45 46
10622N HANDLE DN ALU 100MM M5 BLACK 100 115 M5x45 47
10623N HANDLE DN ALU 120MM M5 BLACK 120 135 M5x45 52
10624N HANDLE DN ALU 180MM M5 BLACK 180 195 M5x45 61
10625N HANDLE DN ALU 235MM M5 BLACK 235 250 M5x45 70
