Handle EK

in aluminium

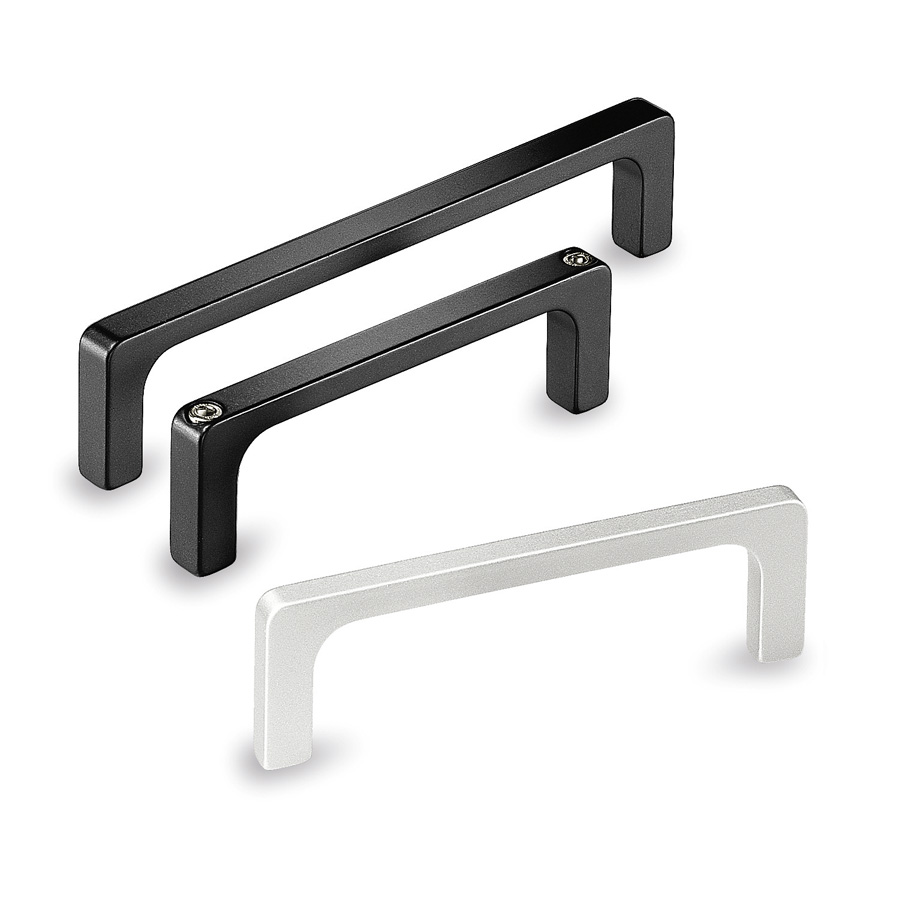

Aluminium pull handles : Handle EK
in aluminium
  • Reach
  • Rohs
Handle made of profiled aluminium Al Mg Si 0.5, vibration ground and anodized with matt finish. Version 3 supplied with stainless cheese head screws M5 x 45 and galvanized self-locking ratchet nuts. Stress resistance minimum 500 N.

01 / Wide

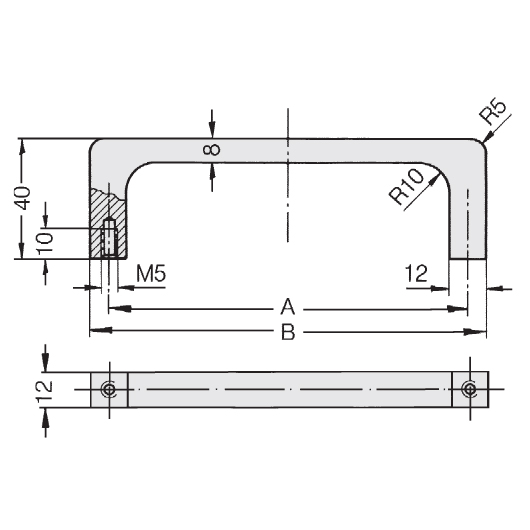

Schéma 1 + Handle EK
in aluminium
REF DESIGNATION A B FIXATION Wight (g) 3D Quote
10001 HANDLE EK ALU 55MM M5 55 67 M5 40
10002 HANDLE EK ALU 88MM M5 88 100 M5 50
10003 HANDLE EK ALU 120MM M5 120 132 M5 58
10004 HANDLE EK ALU 180MM M5 180 192 M5 75
10005 HANDLE EK ALU 235MM M5 235 247 M5 85
10001N HANDLE EK ALU 55MM M5 BLACK 55 67 M5 40
10002N HANDLE EK ALU 88MM M5 BLACK 88 100 M5 50
10003N HANDLE EK ALU 120MM M5 BLACK 120 132 M5 58
10004N HANDLE EK ALU 180MM M5 BLACK 180 192 M5 75
10005N HANDLE EK ALU 235MM M5 BLACK 235 247 M5 85

02 / Narrow

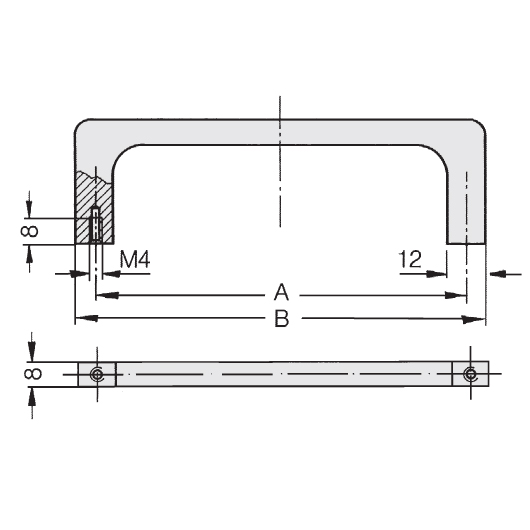

Schéma 2 + Handle EK
in aluminium
REF DESIGNATION A B FIXATION Wight (g) 3D Quote
10006 HANDLE EK ALU 55MM M4 55 67 M4 28
10007 HANDLE EK ALU 88MM M4 88 100 M4 33
10008 HANDLE EK ALU 120MM M4 120 132 M4 39
10009 HANDLE EK ALU 180MM M4 180 192 M4 50
10010 HANDLE EK ALU 235MM M4 235 247 M4 59
10006N HANDLE EK ALU 55MM M4 BLACK 55 67 M4 28
10007N HANDLE EK ALU 88MM M4 BLACK 88 100 M4 33
10008N HANDLE EK ALU 120MM M4 BLACK 120 132 M4 39
10009N HANDLE EK ALU 180MM M4 BLACK 180 192 M4 50
10010N HANDLE EK ALU 235MM M4 BLACK 235 247 M4 59

03 / Wide, fastering material included

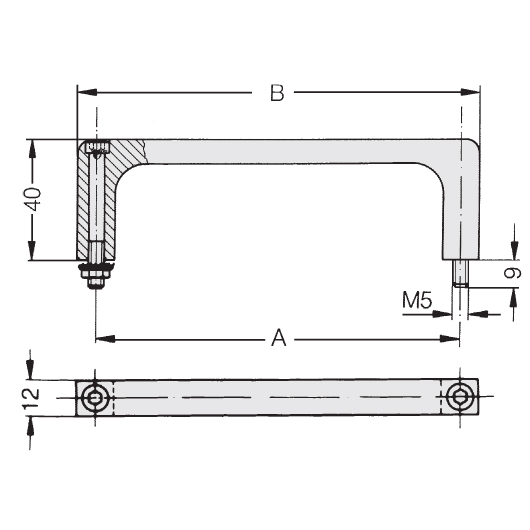

Schéma 3 + Handle EK
in aluminium
REF DESIGNATION A B FIXATION Wight (g) 3D Quote
10011 HANDLE EK ALU 55MM M5 55 67 M5x45 35
10012 HANDLE EK ALU 88MM M5 88 100 M5x45 46
10013 HANDLE EK ALU 120MM M5 120 132 M5x45 54
10014 HANDLE EK ALU 180MM M5 180 192 M5x45 68
10015 HANDLE EK ALU 235MM M5 235 247 M5x45 78
10011N HANDLE EK ALU 55MM M5 BLACK 55 67 M5x45 35
10012N HANDLE EK ALU 88MM M5 BLACK 88 100 M5x45 46
10013N HANDLE EK ALU 120MM M5 BLACK 120 132 M5x45 54
10014N HANDLE EK ALU 180MM M5 BLACK 180 192 M5x45 68
10015N HANDLE EK ALU 235MM M5 BLACK 235 247 M5x45 78
