Screw-in plug for cylindrical tube

Screw-in plug for square tube

End caps for tubes : Screw-in plug for square tube
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

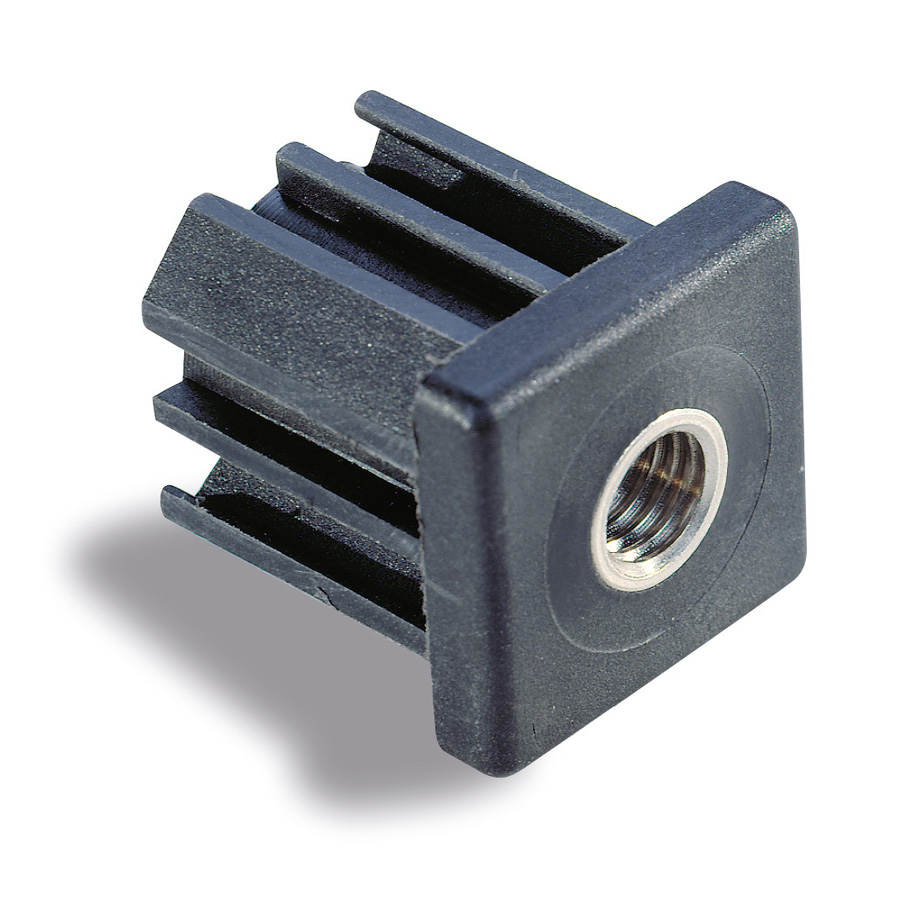

Plug in black, glass-fiber reinforced thermoplastic. Insert in nickel-plated brass.

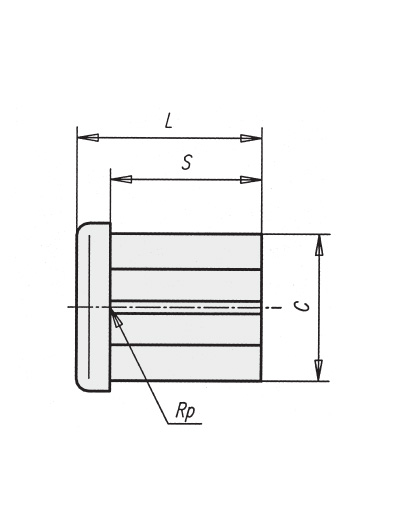

REF DESIGNATION A B C L S CHARGE TUBE 3D Quote
123112 BUSH NYLON SQUARE 30/1.5 BRASS INS M10 M10 30 27,5 33 27 5000 30 x 1,5
123113 BUSH NYLON SQUARE 30/1.5 BRASS INS M12 M12 30 27,5 33 27 5000 30 x 1,5
123114 BUSH NYLON SQUARE 30/1.5 BRASS INS M14 M14 30 27,5 33 27 5000 30 x 1,5
123115 BUSH NYLON SQUARE 30/1.5 BRASS INS M16 M16 30 27,5 33 27 5000 30 x 1,5
123116 BUSH NYLON SQUARE 30/2 BRASS INS M10 M10 30 26,5 33 27 5000 30 x 2,0
123117 BUSH NYLON SQUARE 30/2 BRASS INS M12 M12 30 26,5 33 27 5000 30 x 2,0
123118 BUSH NYLON SQUARE 30/2 BRASS INS M14 M14 30 26,5 33 27 5000 30 x 2,0
123119 BUSH NYLON SQUARE 30/2 BRASS INS M16 M16 30 26,5 33 27 5000 30 x 2,0
123120 BUSH NYLON SQUARE 40/1.5 BRASS INS M10 M10 40 37,5 43 35 6000 40 x 1,5
123121 BUSH NYLON SQUARE 40/1.5 BRASS INS M12 M12 40 37,5 43 35 6000 40 x 1,5
123122 BUSH NYLON SQUARE 40/1.5 BRASS INS M14 M14 40 37,5 43 35 6000 40 x 1,5
123123 BUSH NYLON SQUARE 40/1.5 BRASS INS M16 M16 40 37,5 43 35 6000 40 x 1,5
123124 BUSH NYLON SQUARE 40/1.5 BRASS INS M20 M20 40 37,5 43 35 8000 40 x 1,5
123125 BUSH NYLON SQUARE 40/2 BRASS INS M10 M10 40 36,5 43 35 6000 40 x 2,0
123126 BUSH NYLON SQUARE 40/2 BRASS INS M12 M12 40 36,5 43 35 6000 40 x 2,0
123127 BUSH NYLON SQUARE 40/2 BRASS INS M14 M14 40 36,5 43 35 6000 40 x 2,0
123128 BUSH NYLON SQUARE 40/2 BRASS INS M16 M16 40 36,5 43 35 6000 40 x 2,0
123129 BUSH NYLON SQUARE 40/2 BRASS INS M20 M20 40 36,5 43 35 8000 40 x 2,0
123130 BUSH NYLON SQUARE 40/2.5 BRASS INS M10 M10 40 35,5 43 35 6000 40 x 2,5
123131 BUSH NYLON SQUARE 40/2.5 BRASS INS M12 M12 40 35,5 43 35 6000 40 x 2,5
123132 BUSH NYLON SQUARE 40/2.5 BRASS INS M14 M14 40 35,5 43 35 6000 40 x 2,5
123133 BUSH NYLON SQUARE 40/2.5 BRASS INS M16 M16 40 35,5 43 35 6000 40 x 2,5
123134 BUSH NYLON SQUARE 40/2.5 BRASS INS M20 M20 40 35,5 43 35 8000 40 x 2,5
123135 BUSH NYLON SQUARE 40/3 BRASS INS M10 M10 40 34,5 43 35 6000 40 x 3,0
123136 BUSH NYLON SQUARE 40/3 BRASS INS M12 M12 40 34,5 43 35 6000 40 x 3,0
123137 BUSH NYLON SQUARE 40/3 BRASS INS M14 M14 40 34,5 43 35 6000 40 x 3,0
123138 BUSH NYLON SQUARE 40/3 BRASS INS M16 M16 40 34,5 43 35 6000 40 x 3,0
123139 BUSH NYLON SQUARE 40/3 BRASS INS M20 M20 40 34,5 43 35 8000 40 x 3,0
123140 BUSH NYLON SQUARE 40/4 BRASS INS M10 M10 40 32,5 43 35 6000 40 x 4,0
123141 BUSH NYLON SQUARE 40/4 BRASS INS M12 M12 40 32,5 43 35 6000 40 x 4,0
123142 BUSH NYLON SQUARE 40/4 BRASS INS M14 M14 40 32,5 43 35 6000 40 x 4,0
123143 BUSH NYLON SQUARE 40/4 BRASS INS M16 M16 40 32,5 43 35 6000 40 x 4,0
123144 BUSH NYLON SQUARE 40/4 BRASS INS M20 M20 40 32,5 43 35 8000 40 x 4,0
123145 BUSH NYLON SQUARE 50/1.5 BRASS INS M12 M12 50 47,5 55 44 6000 50 x 1,5
123146 BUSH NYLON SQUARE 50/1.5 BRASS INS M14 M14 50 47,5 55 44 6000 50 x 1,5
123147 BUSH NYLON SQUARE 50/1.5 BRASS INS M16 M16 50 47,5 55 44 6000 50 x 1,5
123148 BUSH NYLON SQUARE 50/1.5 BRASS INS M20 M20 50 47,5 55 44 8000 50 x 1,5
123149 BUSH NYLON SQUARE 50/2 BRASS INS M12 M12 50 46,5 55 44 6000 50 x 2,0
123150 BUSH NYLON SQUARE 50/2 BRASS INS M14 M14 50 46,5 55 44 6000 50 x 2,0
123151 BUSH NYLON SQUARE 50/2 BRASS INS M16 M16 50 46,5 55 44 6000 50 x 2,0
123152 BUSH NYLON SQUARE 50/2 BRASS INS M20 M20 50 46,5 55 44 8000 50 x 2,0
123153 BUSH NYLON SQUARE 50/2.5 BRASS INS M12 M12 50 45,5 55 44 6000 50 x 2,5
123154 BUSH NYLON SQUARE 50/2.5 BRASS INS M14 M14 50 45,5 55 44 6000 50 x 2,5
123155 BUSH NYLON SQUARE 50/2.5 BRASS INS M16 M16 50 45,5 55 44 6000 50 x 2,5
123156 BUSH NYLON SQUARE 50/2.5 BRASS INS M20 M20 50 45,5 55 44 8000 50 x 2,5
123157 BUSH NYLON SQUARE 50/3 BRASS INS M12 M12 50 44,5 55 44 6000 50 x 3,0
123158 BUSH NYLON SQUARE 50/3 BRASS INS M14 M14 50 44,5 55 44 6000 50 x 3,0
123159 BUSH NYLON SQUARE 50/3 BRASS INS M16 M16 50 44,5 55 44 6000 50 x 3,0
123160 BUSH NYLON SQUARE 50/3 BRASS INS M20 M20 50 44,5 55 44 8000 50 x 3,0
123161 BUSH NYLON SQUARE 50/4 BRASS IN M12 M12 50 42,5 55 44 6000 50 x 4,0
123162 BUSH NYLON SQUARE 50/4 BRASS IN M14 M14 50 42,5 55 44 6000 50 x 4,0
123163 BUSH NYLON SQUARE 50/4 BRASS IN M16 M16 50 42,5 55 44 6000 50 x 4,0
123164 BUSH NYLON SQUARE 50/4 BRASS IN M20 M20 50 42,5 55 44 8000 50 x 4,0
123165 BUSH NYLON SQUARE 60/2 BRASS INS M14 M14 60 56,5 55 45 6000 60 x 2,0
123166 BUSH NYLON SQUARE 60/2 BRASS INS M16 M16 60 56,5 55 45 6000 60 x 2,0
123167 BUSH NYLON SQUARE 60/2 BRASS INS M20 M20 60 56,5 55 45 8000 60 x 2,0
123168 BUSH NYLON SQUARE 60/3 BRASS INS M14 M14 60 54,5 55 45 6000 60 x 3,0
123169 BUSH NYLON SQUARE 60/3 BRASS INS M16 M16 60 54,5 55 45 6000 60 x 3,0
123170 BUSH NYLON SQUARE 60/3 BRASS INS M20 M20 60 54,5 55 45 8000 60 x 3,0
123171 BUSH NYLON SQUARE 60/4 BRASS IN M14 M14 60 52,5 55 45 6000 60 x 4,0
123172 BUSH NYLON SQUARE 60/4 BRASS IN M16 M16 60 52,5 55 45 6000 60 x 4,0
123173 BUSH NYLON SQUARE 60/4 BRASS IN M20 M20 60 52,5 55 45 8000 60 x 4,0
