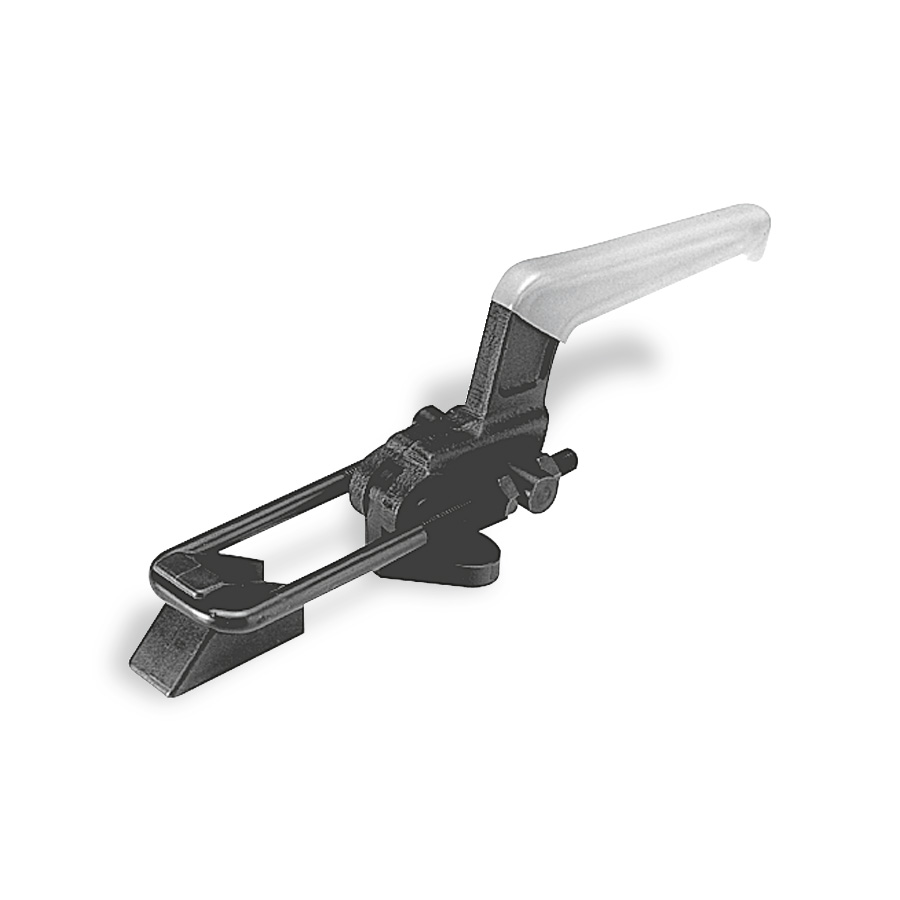

Heavy-duty latch clamp

Hook and latch clamps : Heavy-duty latch clamp
  • Reach
  • Rohs
Base and latch bracket in cast steel. Clamp in galvanized steel. Handle in spheroidal graphite casr iron. Handle cover in orange oil-resistant plastic.

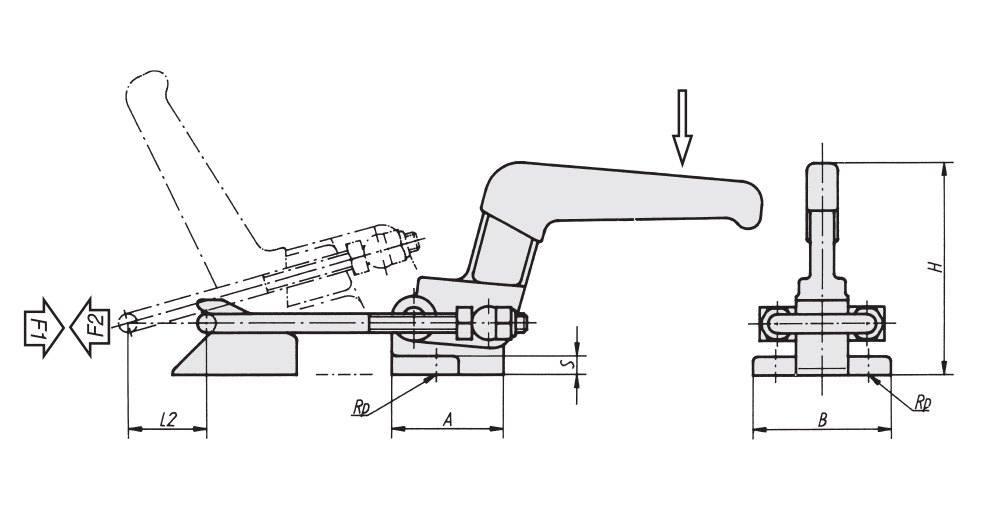

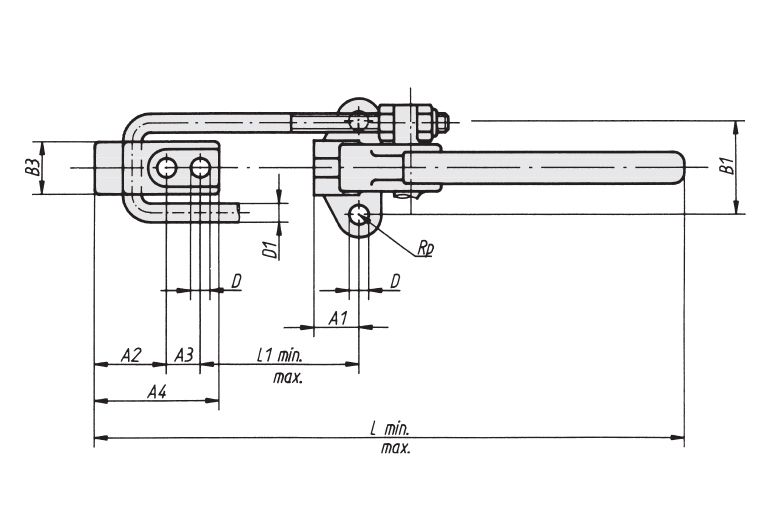

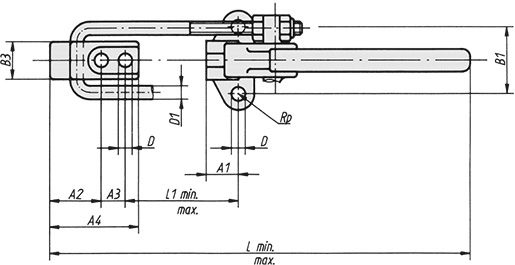

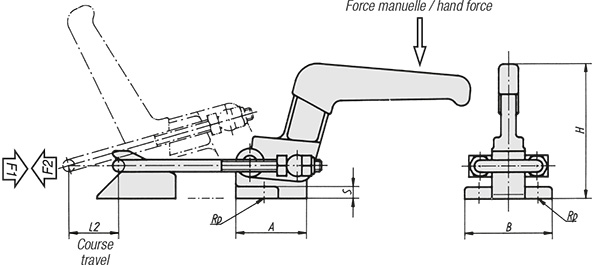

REF DESIGNATION A A1 A2 A3 A4 B B1 B3 D D1 F1 H L min-max L1 min-max 3D Quote
5445 HEAVY DUTY PUSH-PULL CLAMP 20000N 60 24 37 18 65 74 50 28 10,3 10 16500 115 270 - 320 38 - 88
5446 HEAVY DUTY PUSH-PULL CLAMP 40000N 82 36 44 22 78 84 56 34 12,4 12 19000 132 335 - 395 52 - 112
