Crank Handle

with fold away grip

Adjustable handles and levers : Crank Handle
with fold away grip
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

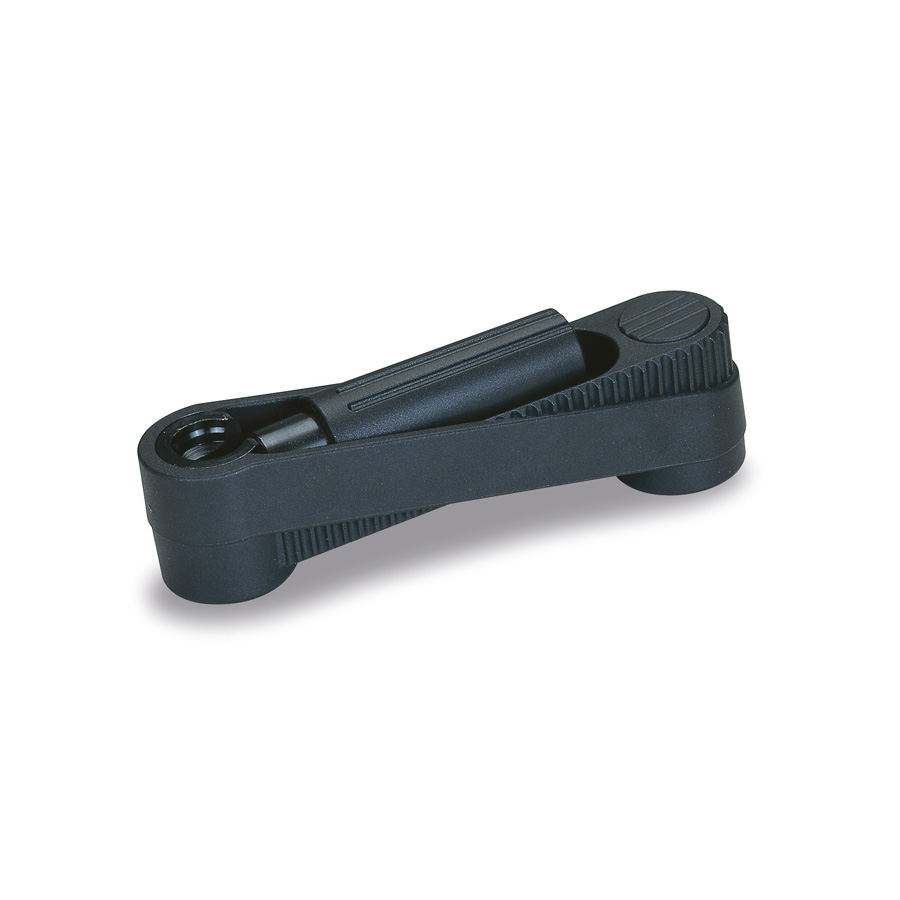

Crank handle in fibre glass reinforced polyamide, grey anthracit. All steel parts with black oxide finish. Handle is supplied assembled.

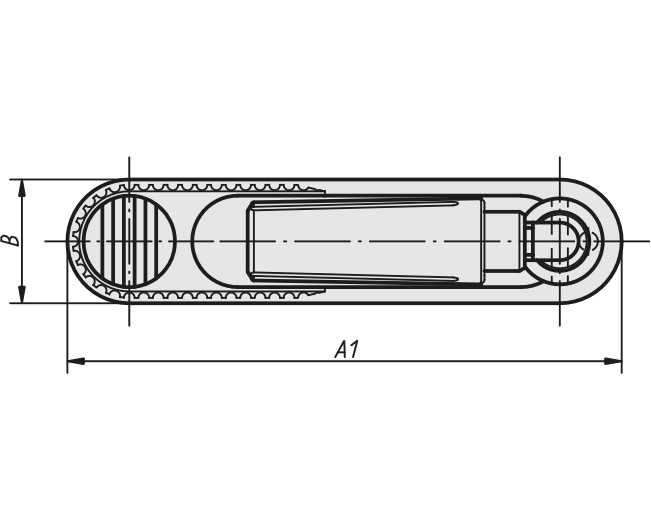

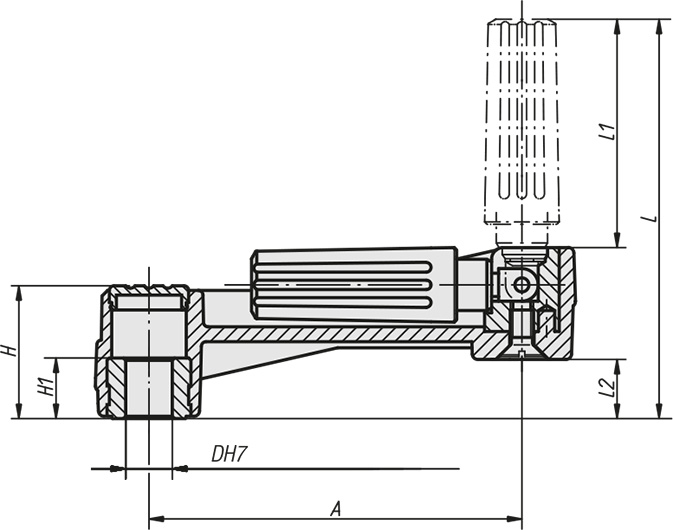

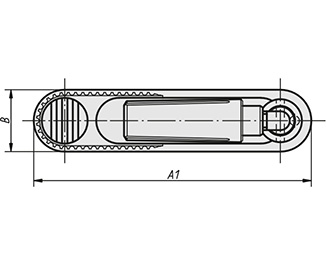

REF DESIGNATION A A1 B DH7 H H1 L L1 L2 Wight (g) 3D Quote
8400 CRANK HANDLE WITH FOLD-AWAY GRIP POLYA. L.80 HOLE 8 80 104 24 8 29 13 85,5 49 13 100
8401 CRANK HANDLE WITH FOLD-AWAY GRIP POLYA. L.80 HOLE 10 80 104 24 10 29 13 85,5 49 13 100
8402 CRANK HANDLE WITH FOLD-AWAY GRIP POLYA. L.100 HOLE 10 100 129 29 10 36 13 105 59,5 16 190
8403 CRANK HANDLE WITH FOLD-AWAY GRIP POLYA. L.100 HOLE 12 100 129 29 12 36 13 105 59,5 16 190
8404 CRANK HANDLE WITH FOLD-AWAY GRIP POLYA. L.125 HOLE 12 125 161 36 12 44 18,5 140 83,5 19,5 370
8405 CRANK HANDLE WITH FOLD-AWAY GRIP POLYA. L.125 HOLE 14 125 161 36 14 44 18,5 140 83,5 19,5 370
