Available variations

Crank handle with safety grip

in composite plastic

Adjustable handles and levers : Crank handle with safety grip
in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

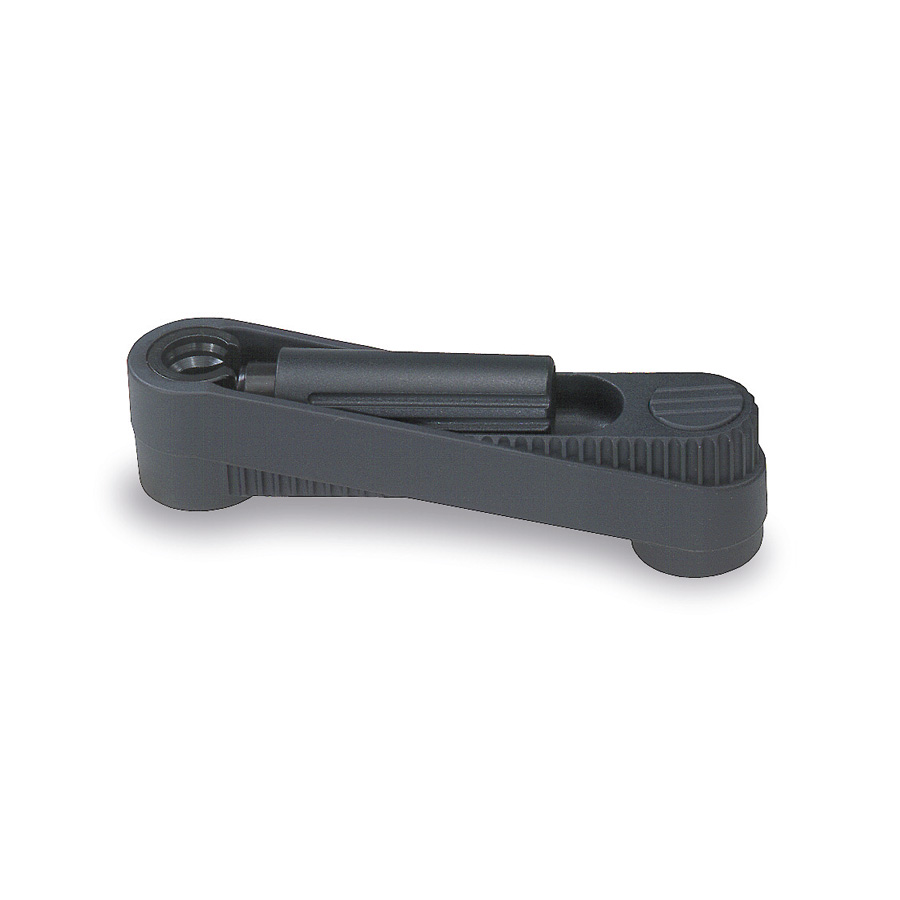

Crank handle in fibre glass reinforced polyamide, grey anthracite. All steel parts with black oxide finish. Handle is supplied assembled. Grip goes back automatically to resting position.

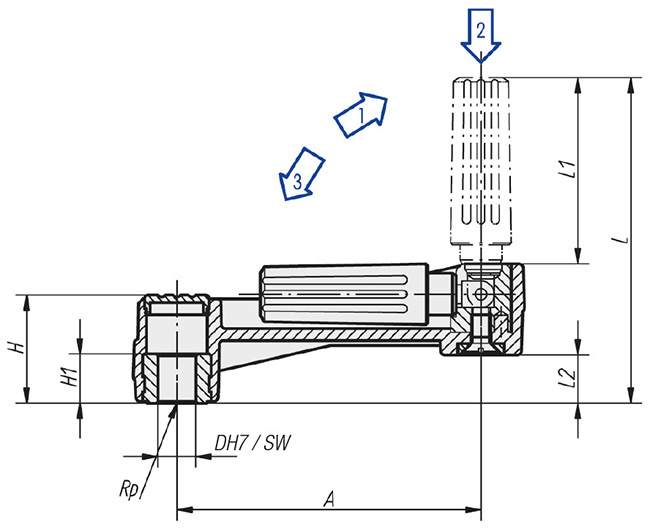

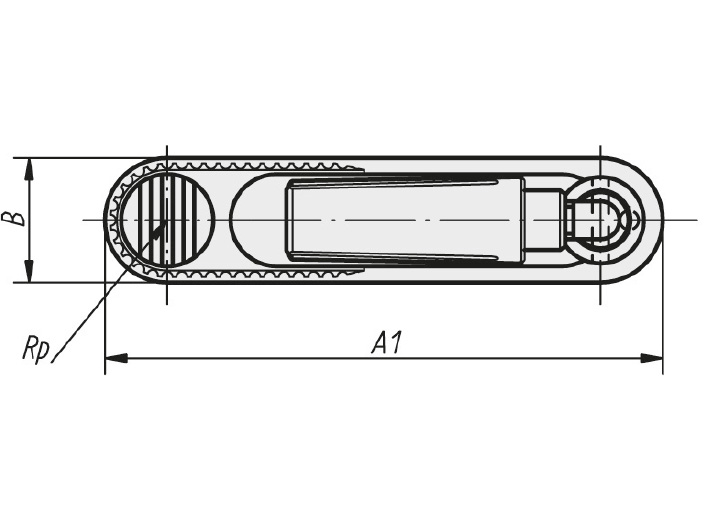

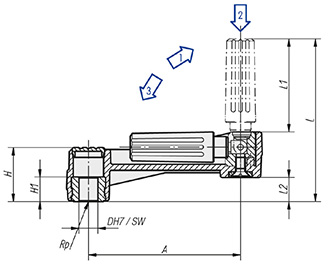

REF DESIGNATION A A1 B DH7 H H1 L L1 L2 SW Wight (g) 3D Quote
9708 CRANK HANDLE WITH SAFETY GRIP POLYA. L.80 HOLE 8 80 104 24 8 29 13 84 47,5 13 8 100
9709 CRANK HANDLE WITH SAFETY GRIP POLYA. L.80 HOLE 10 80 104 24 10 29 13 84 47,5 13 10 100
9710 CRANK HANDLE WITH SAFETY GRIP POLYA. L.100 HOLE 10 100 129 29 10 36 13 104 58,5 16 10 190
9711 CRANK HANDLE WITH SAFETY GRIP POLYA. L.100 HOLE 12 100 129 29 12 36 13 104 58,5 16 12 190
9712 CRANK HANDLE WITH SAFETY GRIP POLYA. L.125 HOLE 12 125 161 36 12 44 18,5 138,5 82 19,5 12 370
9713 CRANK HANDLE WITH SAFETY GRIP POLYA. L.125 HOLE 14 125 161 36 14 44 18,5 138,5 82 19,5 14 370
9714 CRANK HANDLE WITH SAFETY GRIP POLYA. L.80 SQUARE HOLE 8 80 104 24 8 29 13 84 47,5 13 8 100
9715 CRANK HANDLE WITH SAFETY GRIP POLYA. L.80 SQUARE HOLE 10 80 104 24 10 29 13 84 47,5 13 10 100
9716 CRANK HANDLE WITH SAFETY GRIP POLYA. L.100 SQUARE HOLE 10 100 129 29 10 36 13 104 58,5 16 10 190
9717 CRANK HANDLE WITH SAFETY GRIP POLYA. L.100 SQUARE HOLE 12 100 129 29 12 36 13 104 58,5 16 12 190
9718 CRANK HANDLE WITH SAFETY GRIP POLYA. L.125 SQUARE HOLE 12 125 161 36 12 44 18,5 138,5 82 19,5 12 370
9719 CRANK HANDLE WITH SAFETY GRIP POLYA. L.125 SQUARE HOLE 14 125 161 36 14 44 18,5 138,5 82 19,5 14 370
