Handwheel with fold

away grip

Adjustable handles and levers : Handwheel with fold
away grip
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius

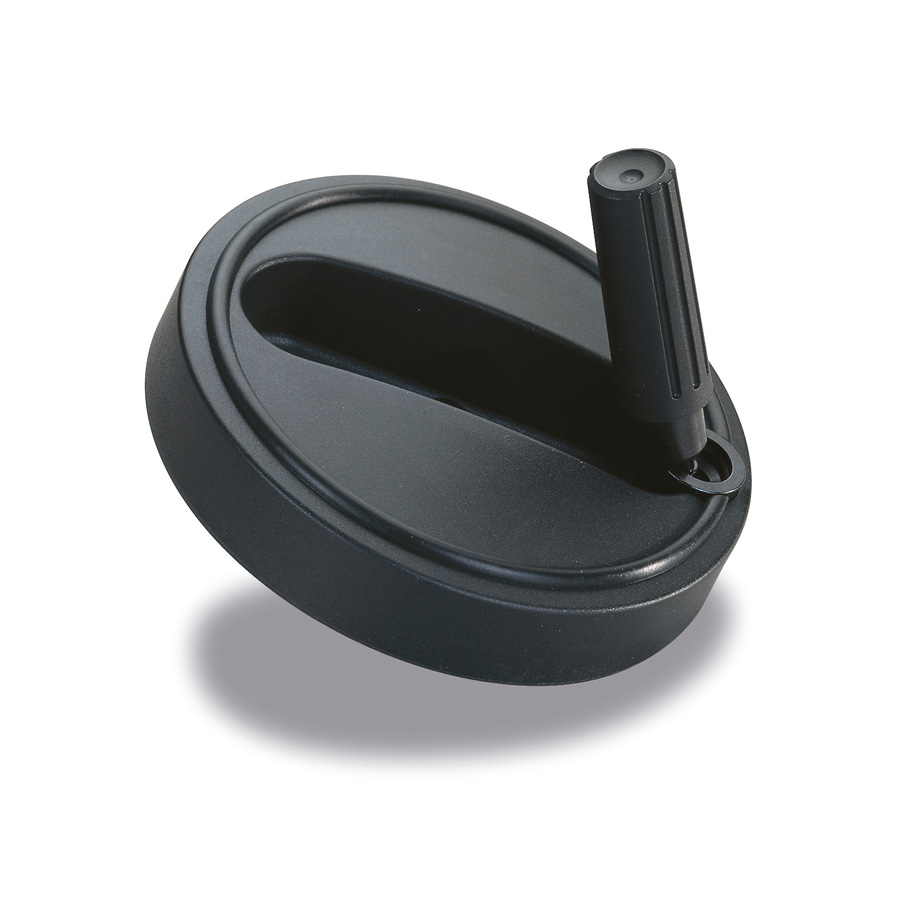

Handwheel in fibre glass reinforced polyamide, grey anthracite. All steel parts with black oxide finish. Handwheel is supplied assembled.

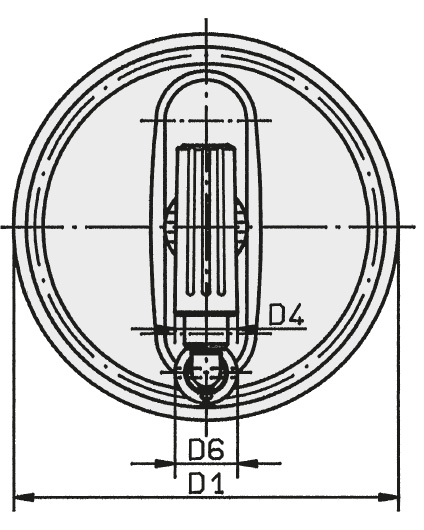

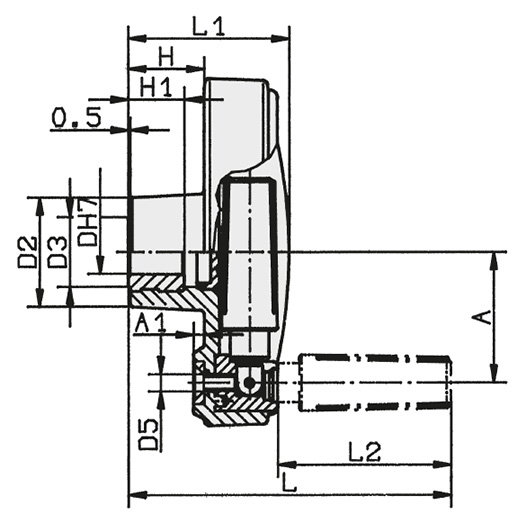

REF DESIGNATION D1 DH7 A A1 D2 D3 D4 D5 D6 H H1 L L1 L2 Wight (g) 3D Quote
8231 HANDWHEEL FOLD-AWAY GRIP POLYA. D.80 BORE 8 80 8 30 2,5 25 19 13 M4 13 17,5 13 75 37,5 40 105
8235 HANDWHEEL FOLD-AWAY GRIP POLYA. D.80 BORE 10 80 10 30 2,5 25 19 13 M4 13 17,5 13 75 37,5 40 105
8239 HANDWHEEL FOLD-AWAY GRIP POLYA. D.80 BORE 12 80 12 30 2,5 25 19 13 M4 13 17,5 13 75 37,5 40 105
8232 HANDWHEEL FOLD-AWAY GRIP POLYA. D.100 BORE 100 100 10 38 3 28 19 16 M5 16 20 13 90 44 49 185
8236 HANDWHEEL FOLD-AWAY GRIP POLYA. D.100 BORE 12 100 12 38 3 28 19 16 M5 16 20 13 90 44 49 185
8233 HANDWHEEL FOLD-AWAY GRIP POLYA. D.125 BORE 12 125 12 47,5 4 35 25 20 M6 20 23,5 18,5 109 53 59,5 330
8237 HANDWHEEL FOLD-AWAY GRIP POLYA. D.125 BORE 14 125 14 47,5 4 35 25 20 M6 20 23,5 18,5 109 53 59,5 330
8240 HANDWHEEL FOLD-AWAY GRIP POLYA. D.125 BORE 16 125 16 47,5 4 35 25 20 M6 20 23,5 18,5 109 53 59,5 330
8234 HANDWHEEL FOLD-AWAY GRIP POLYA. D.160 BORE 14 160 14 62 5,6 45 25 25 M8 26 28 18,5 144 64,5 83,5 661
8238 HANDWHEEL FOLD-AWAY GRIP POLYA. D.160 BORE 16 160 16 62 5,6 45 25 25 M8 26 28 18,5 144 64,5 83,5 661
